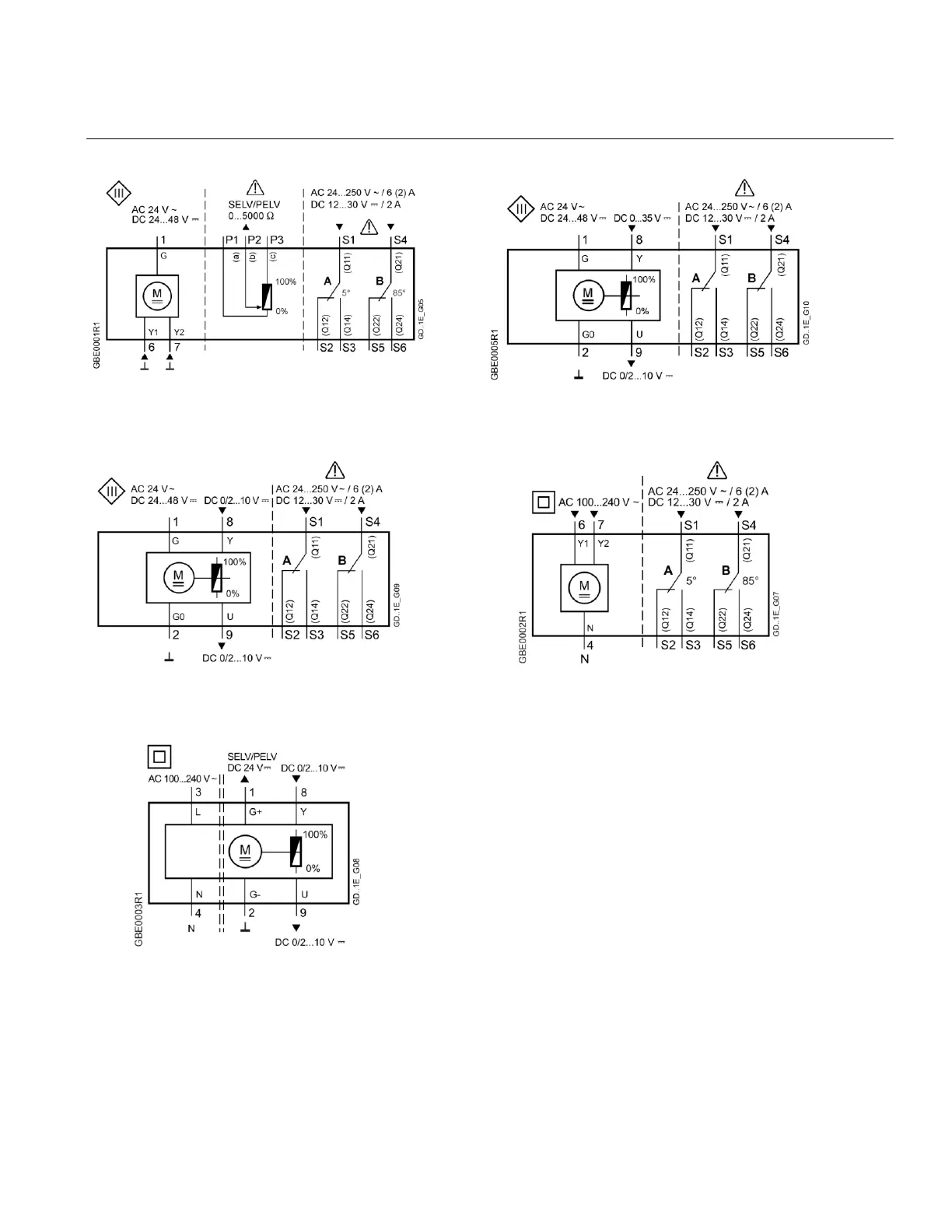

Wire Designations Each wire has the standard symbol printed on it. See Table 2.
Figure 17. 24 Vac/Vdc
3-Position Control
GEB14x.1U/1P.
Figure 18. 24 Vac/Vdc
Modulating Control
DC 0 to 10V
GEB164.1U.
Figure 19. 24 Vac/Vdc
Continuous control 0 to 10V
GEB16x.1U/1P.
Figure 20. 100 to 240 Vac
3-position control
GEB341.1U.
Figure 21. 100 to 240 Vac
Modulating control
DC 0 to 10V
GEB361.1U.
