Siemens PXC....D PXC...-E.D + PXA40-… – Automation stations modular series CM1N9222en_03
Building Technologies 16 Mar 2010

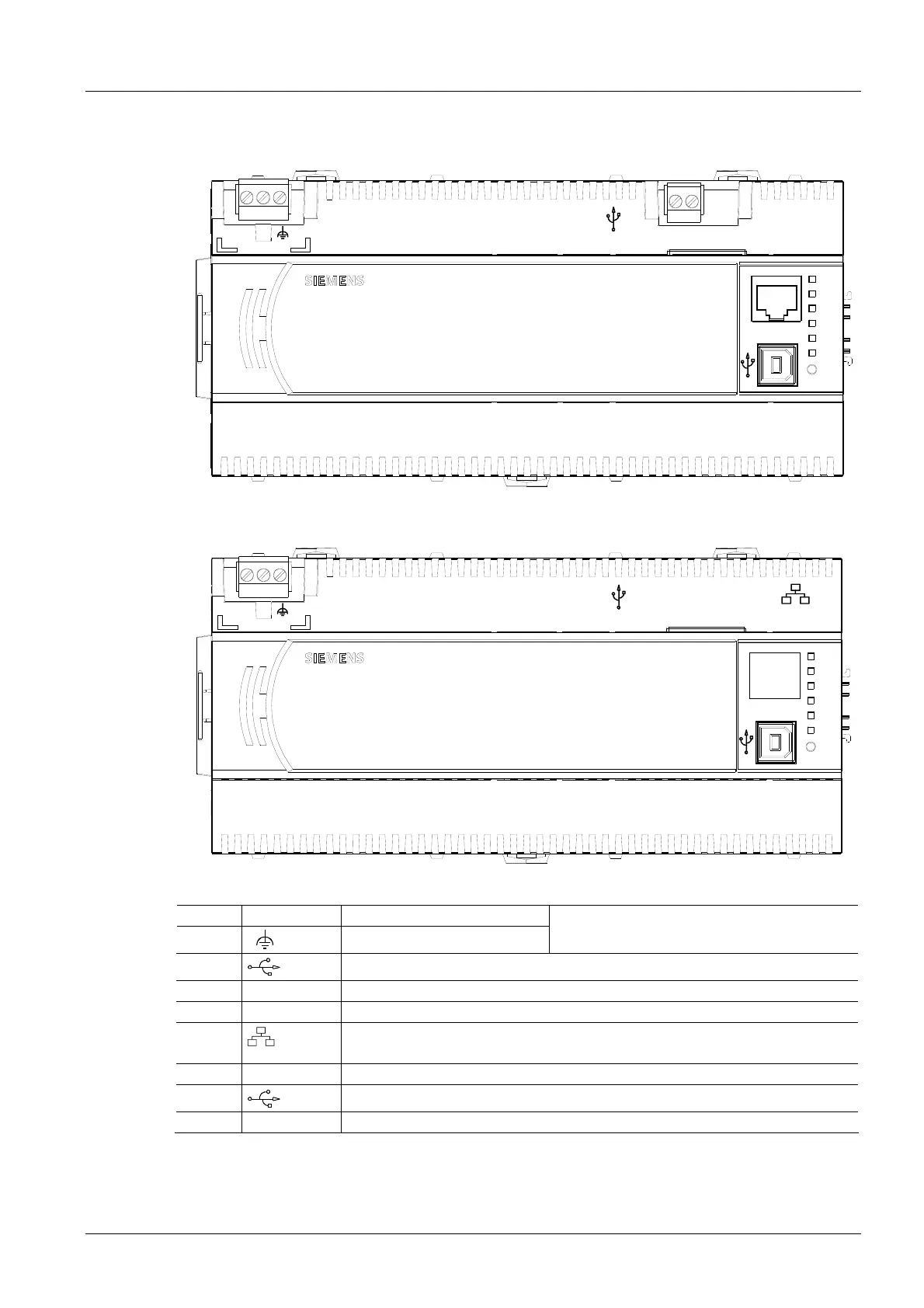

Connection terminals and interfaces
PXC....D
24 V~
T
CLA CLB
HMI
HMI
HMI / TOOL
(A)
(B)
(C)
(E)
(F)
(G)
9222Z10
123
45
PXC...-E.D
24 V~
T
HMI
9222Z11
(A)
(D)
(F)
(G)
123
1, 2
24 V ~,
 Operating voltage AC 24 V
3
Functional ground
Plug-in screw terminal block
(A)
USB host interface (for modem via PXA-C3 adapter cable)
4,5 (B) CLA, CLB LONWORKS bus Plug-in screw terminal blocks
(C) HMI
RJ45 interface (L
ONWORKS) for operator unit PXM20 (tool as well)
(D)
RJ45 interface for Ethernet
(Operator unit PXM20-E can be connected to hub/switch)
(E)
HMI / Tool
RJ45 interface (LONWORKS and serial) for PXM10, PXM20 and tool
(F)
USB device interface (for future applications)
(G) HMI RJ45 interface (serial) for operator unit PXM10
