Siemens PXC....D PXC...-E.D + PXA40-… – Automation stations modular series CM1N9222en_03
Building Technologies 16 Mar 2010

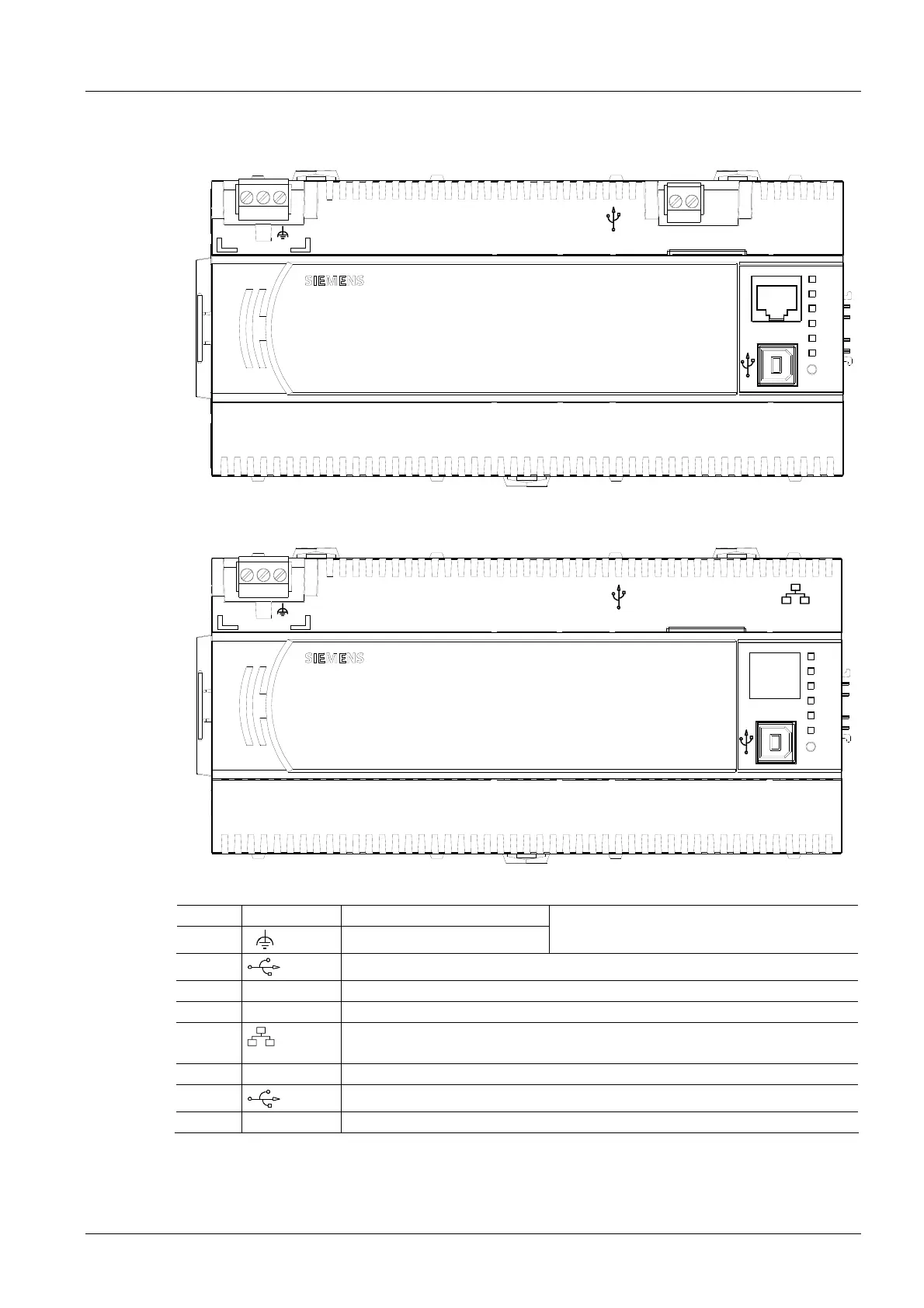

Connection terminals and interfaces
PXC....D
24 V~
T
CLA CLB
HMI
HMI
HMI / TOOL
(A)
(B)
(C)
(E)
(F)
(G)
9222Z10
123
45
PXC...-E.D
24 V~
T
HMI
9222Z11
(A)
(D)
(F)
(G)
123
1, 2
24 V ~,
 Operating voltage AC 24 V
3
Functional ground
Plug-in screw terminal block
(A)
USB host interface (for modem via PXA-C3 adapter cable)
4,5 (B) CLA, CLB LONWORKS bus Plug-in screw terminal blocks
(C) HMI
RJ45 interface (L
ONWORKS) for operator unit PXM20 (tool as well)
(D)
RJ45 interface for Ethernet
(Operator unit PXM20-E can be connected to hub/switch)
(E)
HMI / Tool
RJ45 interface (LONWORKS and serial) for PXM10, PXM20 and tool
(F)
USB device interface (for future applications)
(G) HMI RJ45 interface (serial) for operator unit PXM10

Siemens PXC200.D Specifications

General

Product Type	Building automation controller
Input Voltage	24 V AC/DC
Power Supply	24 V AC/DC
Protocol BACnet	Yes
Protocol Modbus	Yes
Operating System	Embedded Linux
Degree of protection IP	IP20
Product type designation	PXC200.D
Type	Compact controller
Supply voltage	AC 24 V, DC 24 V
Communication Protocol	BACnet, Modbus, Ethernet
Processor	ARM-based
Storage	512 MB Flash
Ethernet Ports	1 x 10/100 Mbit/s
USB Ports	1 x USB 2.0
Serial Ports	RS-485
