OPERATION
HANDLING INSTRUCTIONS
\
Place circuit
breaker tn front
of unit and attach
the lifting yoke .
Attach crane cable yoke and insert crank into
the crane eye.
Lower brea'ker
onto rails.
Important!
The rear of the
breaker must
be
tilted downward
so that the
breaker engages
the notch on
the right hand
rail.
Page 9
A
DANGER
HEAVY WEIGHTS
The use of the lifting device will place heavy
weights overhead. Follow instructio ns for use.
Avo id excessive speeds an.d sudden starts and
stops.
Never lift a circuit breaker above an area
where personnel are located . Failure to comp ly
may r esult in property damage , serious personal
injury or death .
Raise breaker
above compart-
ment rails and
fully extend rails.
With break
er
securely on rails,
remove the lifting
yoke. Breaker is
now ready for
inserting into
compartment.

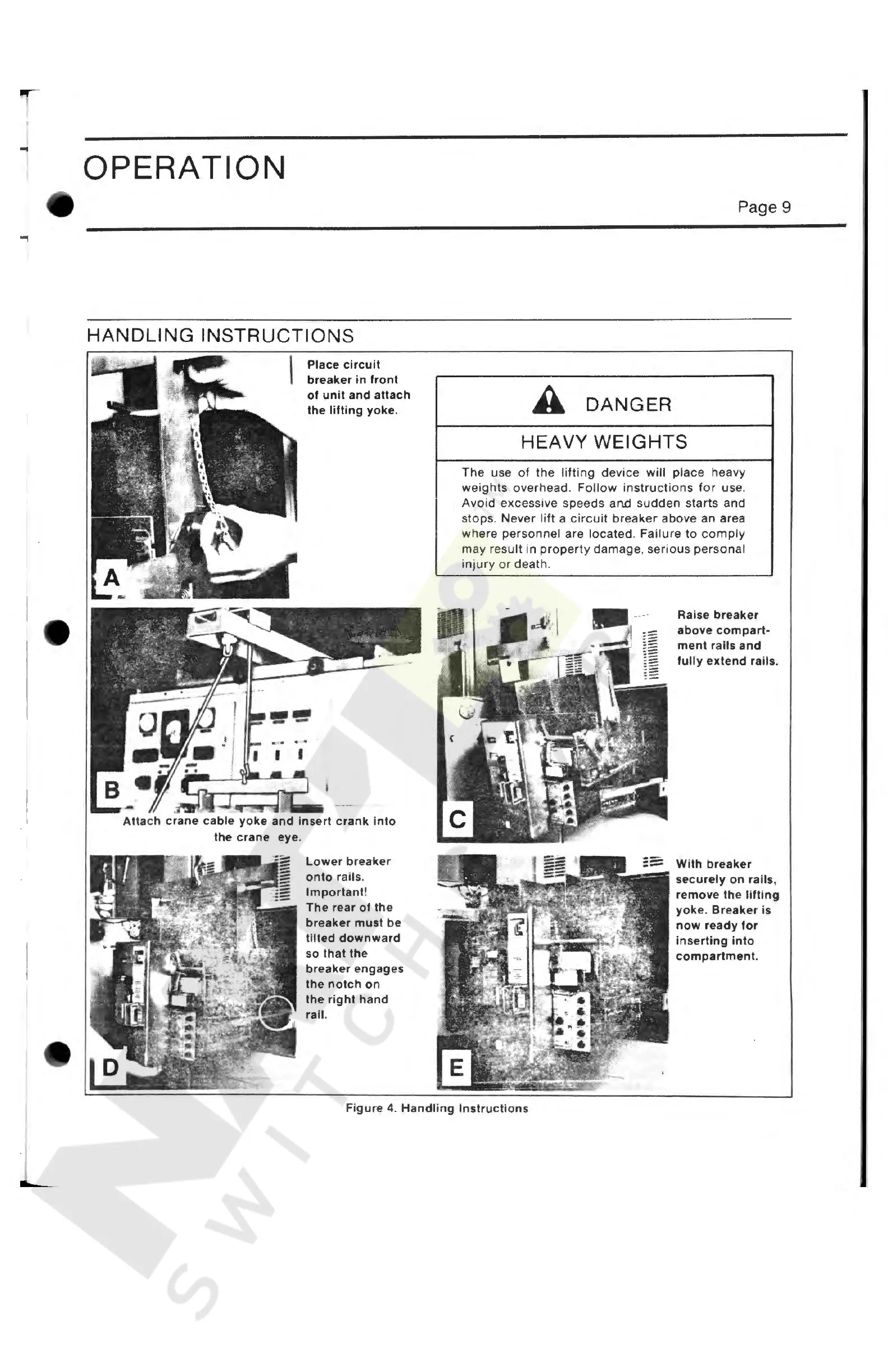

Figure 4. Handling Instructions
