INSTALLATION
Page2
Allow
sufficient
space
to
permit
access
for
cleaning
and
inspection,
and
adequate
clearance
to
insulating
barriers
above
the
circuit
breaker
to
prevent
damage
from
arcing
during
interruption
.
Before
installing
, make
certain
that
the
circuit
breaker
contacts
are in
the
open
position
.
Be
sure
to
lubricate
primary
and
secondary
disconnect
fin-
gers
with
Siemens-Allis
electrical
contact
lubricant
sup-
plied
with
accessories.
CIRCUIT
BREAKER
A
DANGER
~
HAZARDOUS
VOLTAGE
Do
not
work
on
energized
equipment.
To
do
so
may
result
in
property
damage,
serious
personal
injury
or
death.

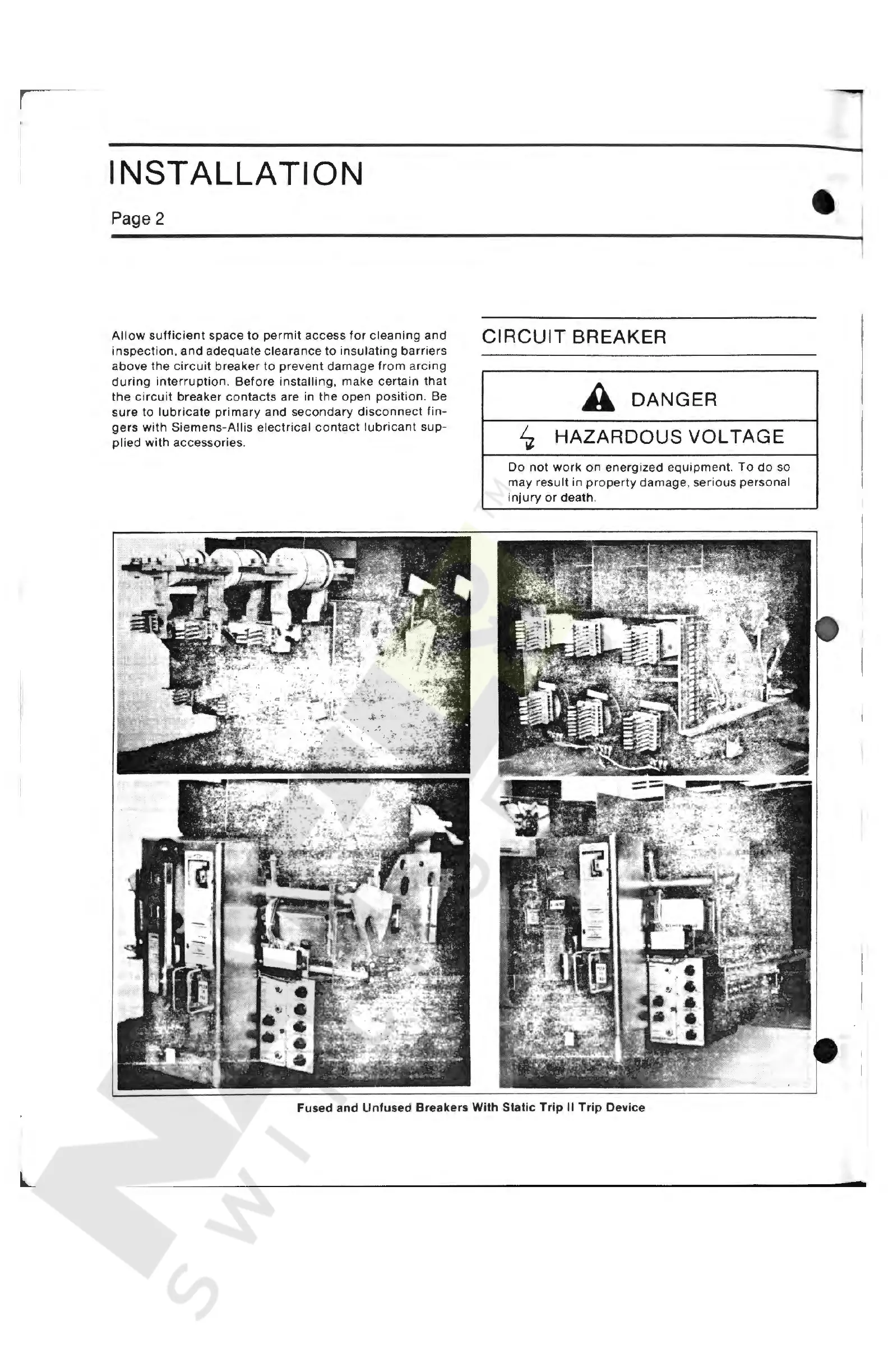

Fused and Unfused Breakers With Static Trip II Trip Device
•
