Siemens RL Instructions

•
•
•
PARTS
Page 39 ,,
-----------------------------11
147
0
150
Item Description
D D
149
141
142
143
144
151
152

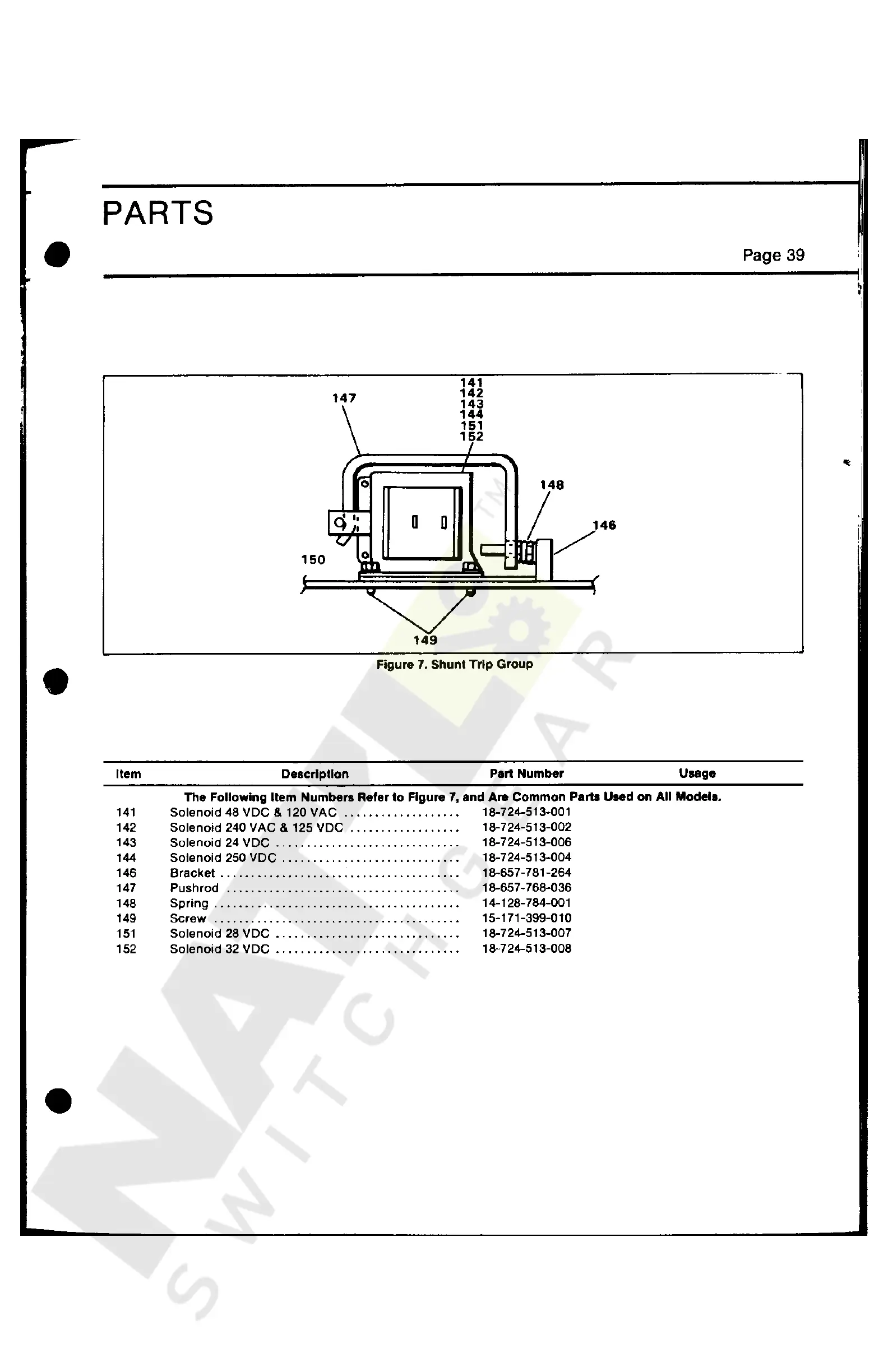

Figure 7. Shunt Trip Group
Part Number
146
Usage
The Following Item Numbers Refer to Figure
7, and Are Common Parts Used on All Models.
141 Solenoid 48 VDC & 120 VAC . . . . . . . . . . . . . . . . . . . 18-724-513-001
142 Solenoid 240 VAC
& 125 VDC . . . . . . . . . . . . . . . . . . 18-724-513-002
143 Solenoid
24 VDC . . . . . .. . . . .. .. . .. .. . . . .. . . .. . . 18-724-513-006
144 Solenoid 250 VDC .
.. . . . . . . .. .. .. . .. . . . .. . . . .. . 18-724-513-004
146 Bracket . . . .. . .. . . .. . . .. . . .. . .. .. . .. . . . .. . . .. . . 18-657-781-264
147 Pushrod .
.. .. .. . . . . .. . . .. . .. . . .. . .. . . .. . .. .. . . 18-657-768-036
148 Spring . . .. .. . .. . . .. .. . . . . .. . .. .. . .. . . . . . . . .. . . 14-128-784-001
149 Screw . .
.. .. . . .. . .. . . .. . . .. . .. .. . .. . . .. . . . . .. . 15-171-399-010
151 Solenoid 28 VDC . .. . . .. .. . .. . . . .. . .. . .. .. . .. . . 18-724-513-007
152 Solenoid
32 VDC . . .. . .. .. .. . .. .. . .. . . .. . .. . .. . 18-724-513-008
Courtesy of NationalSwitchgear.com

Siemens RL Specifications

General

Rated Voltage	250VAC, 30VDC
Mechanical Life	10, 000, 000 operations
Operating Temperature Range	-40°C to +70°C
Contact Configuration	SPDT
Contact Rating	10A
Electrical Life	100, 000 operations
Mounting Type	PCB
