Siemens RUGGEDCOM RSG2100

Communication Ports
4
The RUGGEDCOM RSG2100 can be equipped with various types of communication
ports to enhance its abilities and performance.
Module Assignment
1
3
5
7 9
2
4
6
8
10

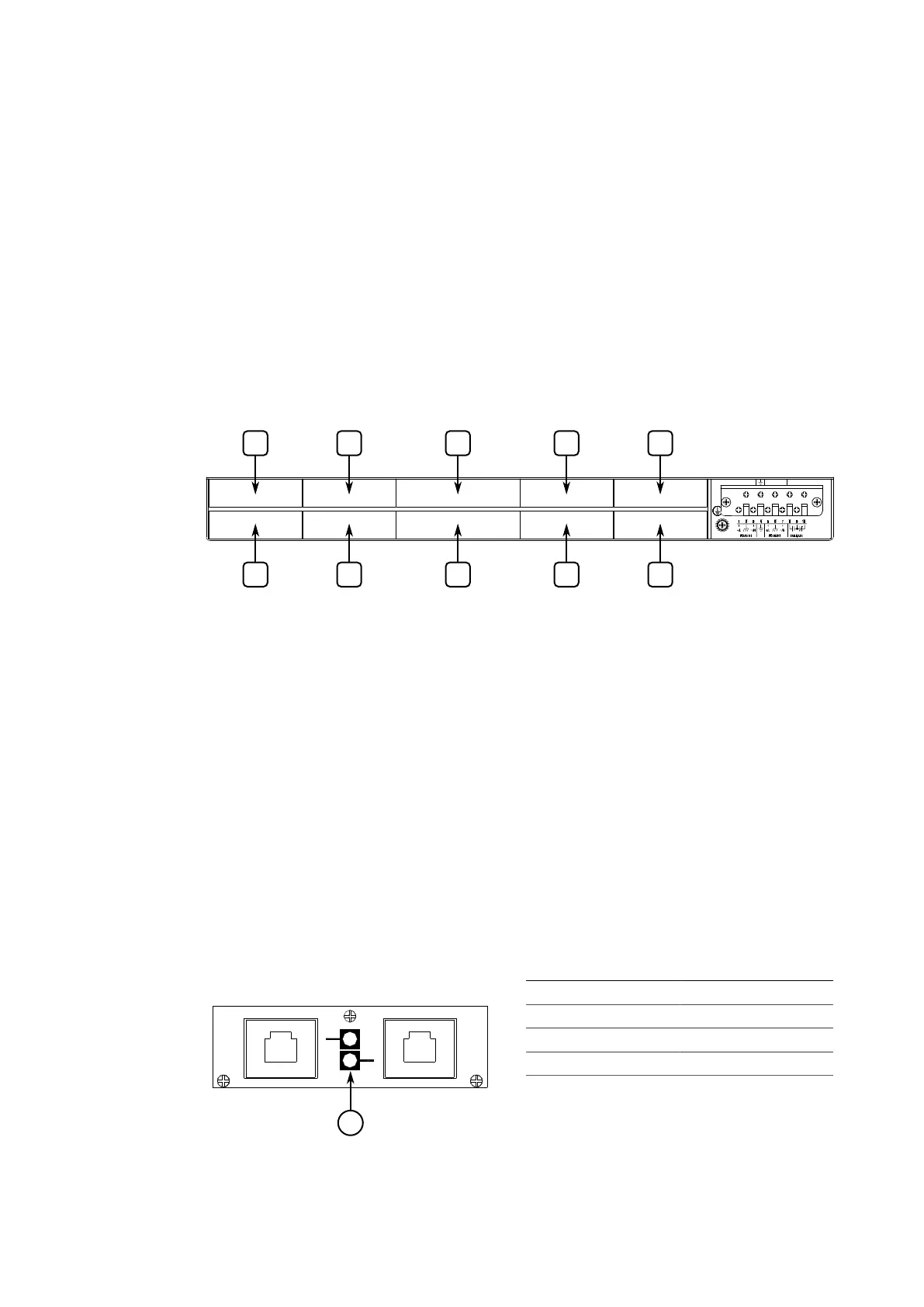

Figure4.1 Module Assignment
Each type of module has a specific location in the RUGGEDCOM RSG2100 chassis:
• Slot 5 supports a pair of Gigabit Ethernet (1 Gbps) ports
• Slot 6 supports a single Gigabit Ethernet (1 Gbps) port
• All other ports support any combination of fiber or copper Ethernet connectors
up to 100 Mbps
The exact configuration of the device can be determined by reading the factory data
file through the RUGGEDCOM RSG2100 user interface. For more information about
how to read the factory data file, refer to the RUGGEDCOM RSG2100 User Guide for
the RUGGEDCOM RSG2100.
Port LEDs
Each communication port is equipped with an LED that indicates the link/activity
state of the port.
1

LED State Description
Yellow (Solid) Link established
Yellow (Blinking) Link activity
Off No link detected
RUGGEDCOM RSG2100
Installation Manual, 03/2020, C79000-G8976-1040-17
23
