Communication Ports
4.4GBIC Optic Ethernet Ports
SFP Transceiver Order Code Speed (Mbit/s) Mode
a
Nomi-
nal Dis-
tance (km)
RUGGEDCOM SFP1132-1LX40 6GK6000-8FG57-0AA0 1000 SM 40
RUGGEDCOM SFP1132-1LX70 6GK6000-8FG54-0AA0 1000 SM 70
RUGGEDCOM SFP1132-1LX100 6GK6000-8FG55-0AA0 1000 SM 100
RUGGEDCOM SFP1132-1LX115 6GK6000-8FE56-0AA0 1000 SM 115
a
MM = Multi-Mode, SM = Single-Mode
b
The RUGGEDCOM RSG2100 supports only 100/1000 Mbit/s.
4.4 GBIC Optic Ethernet Ports
GBIC (Gigabit Interface Converter) optic Ethernet ports are available with SC (Stan-
dard or Subscriber Connector) connectors.
1
Tx Connector
2
Rx Connector

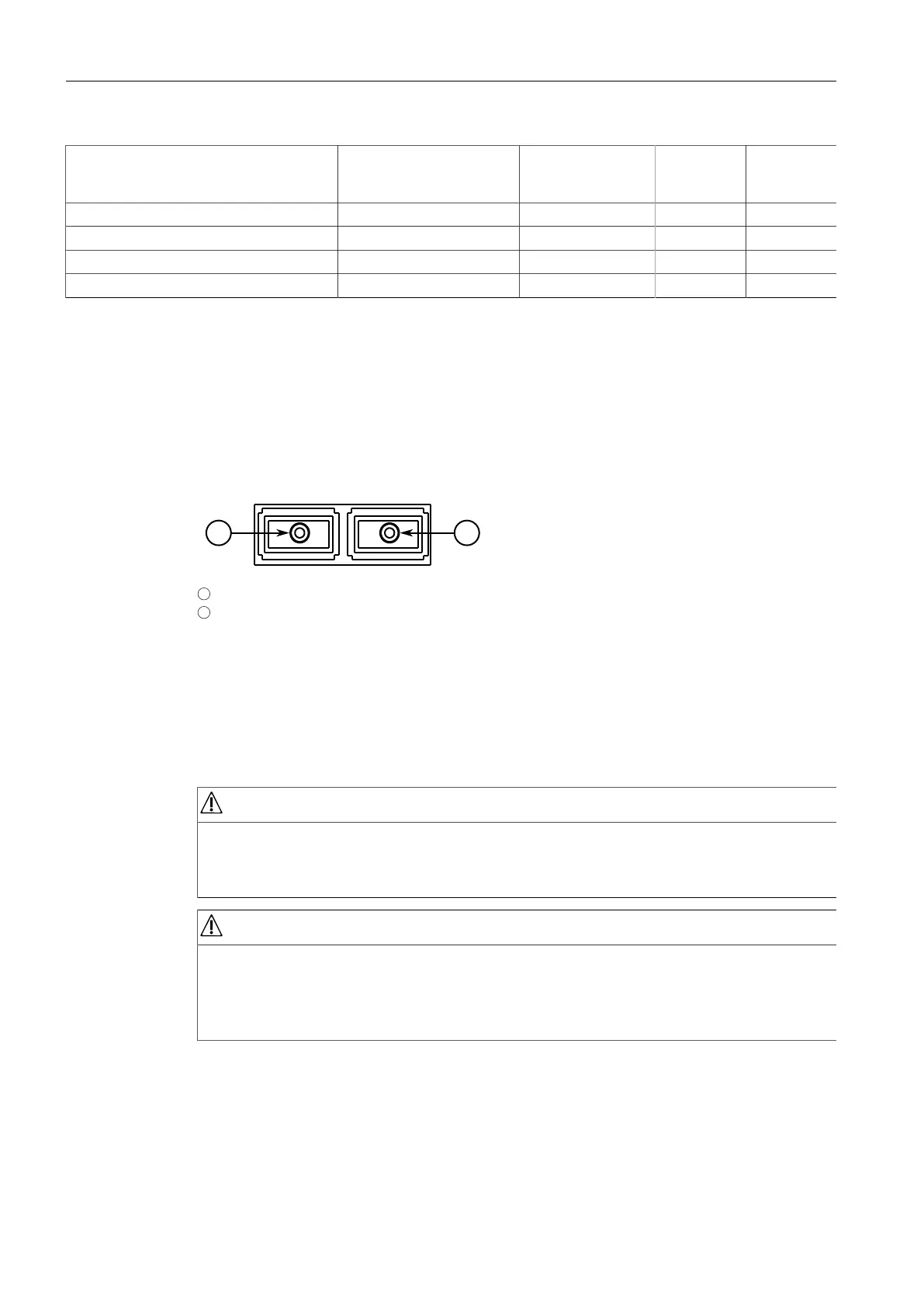

Figure4.9 SC Port
4.4.1 Installing a GBIC Optical Port
To install a GBIC optical port, do the following:
WARNING
Explosion hazard – risk of serious personal injury and/or equipment damage
Do not install or remove GBIC optical ports when an explosive atmosphere is
present.
CAUTION
Electrical hazard – risk of damage to equipment
Use only components certified by Siemens with RUGGEDCOM products. Damage to
the module and device may occur if compatibility and reliability have not been prop-
erly assessed.
RUGGEDCOM RSG2100
Installation Manual, 03/2020, C79000-G8976-1040-17
27
