Installing the Device
2.5.2Wiring Examples
+
-

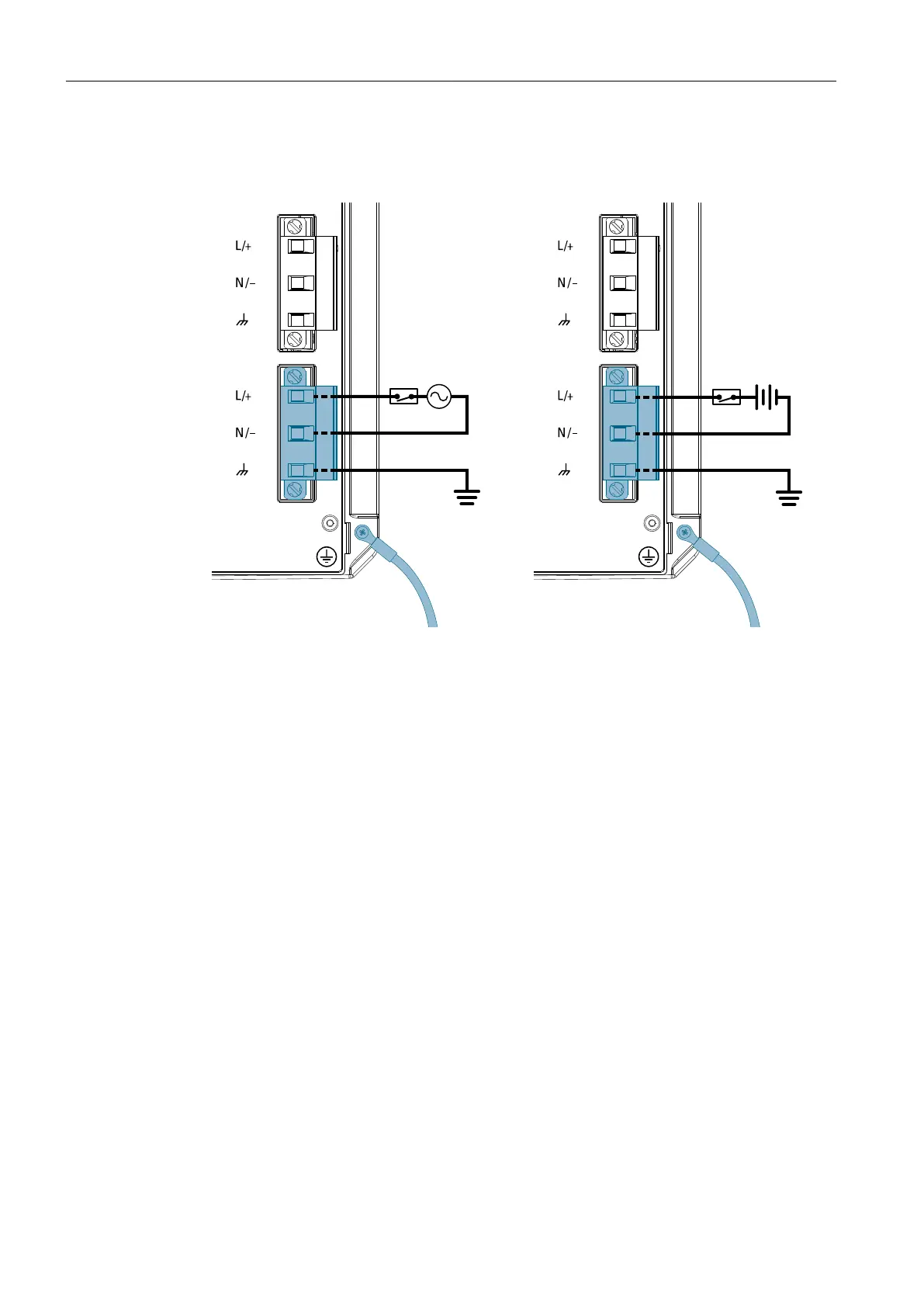

Figure2.13 Dual HI AC and DC Power
Supplies

+
-
+
-
Figure2.14 Dual HI DC Power Supplies
