Installing the Device
2.6Connecting the Device to the Network

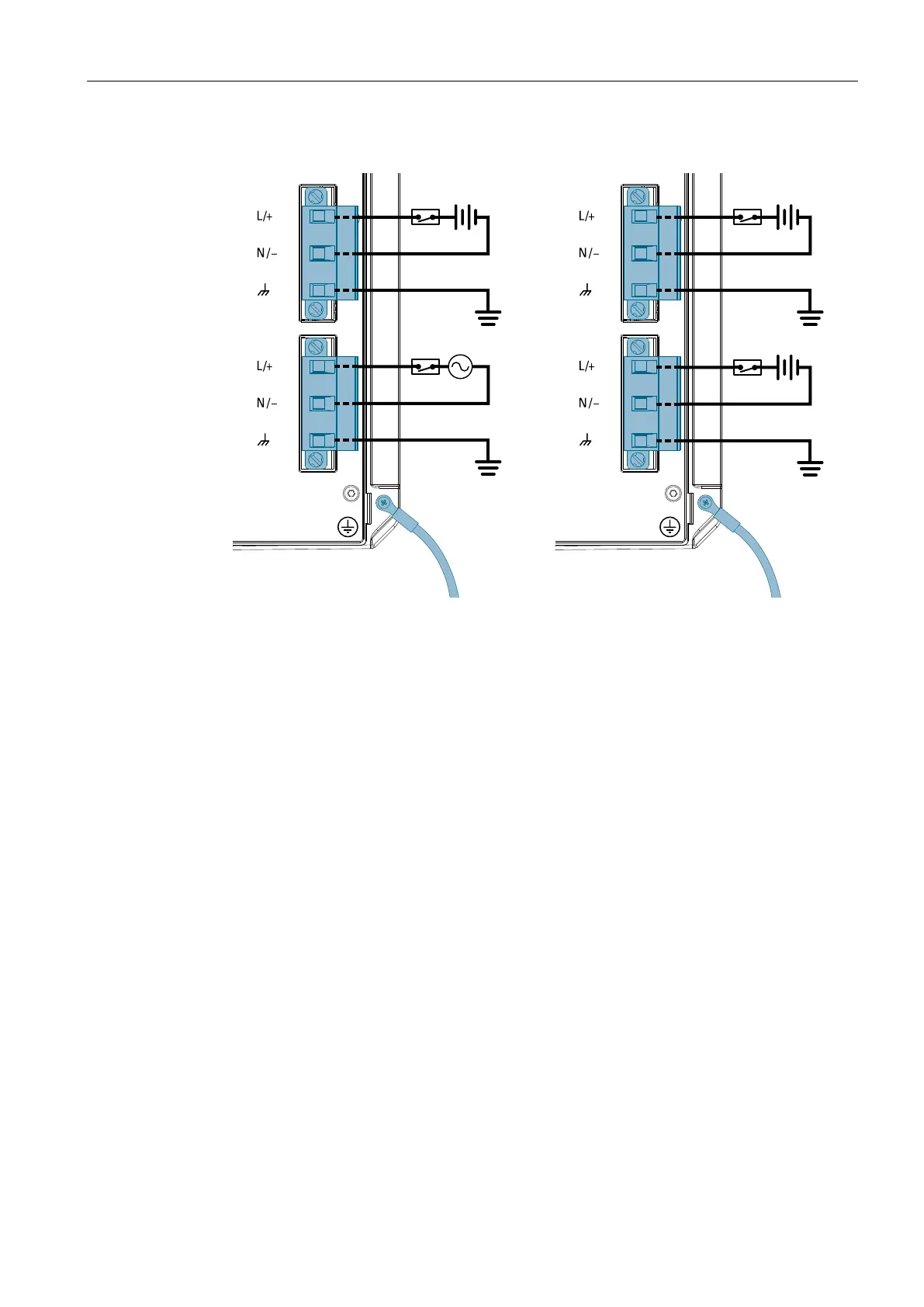

LO Power Supply Configurations
+
-
Figure2.15 Single LO DC Power Input
Configuration

+
-
+
-
Figure2.16 Dual LO DC Power Input
Configuration
2.6 Connecting the Device to the Network
Steps to connect the device to the network are application-specific.
