Siemens RUGGEDCOM RX1501 Installation Guide

RUGGEDCOM RX1501
Installation Guide
Chapter 2
Installing the Device
Mounting the Device to a Panel 9
3
1
2
2
1

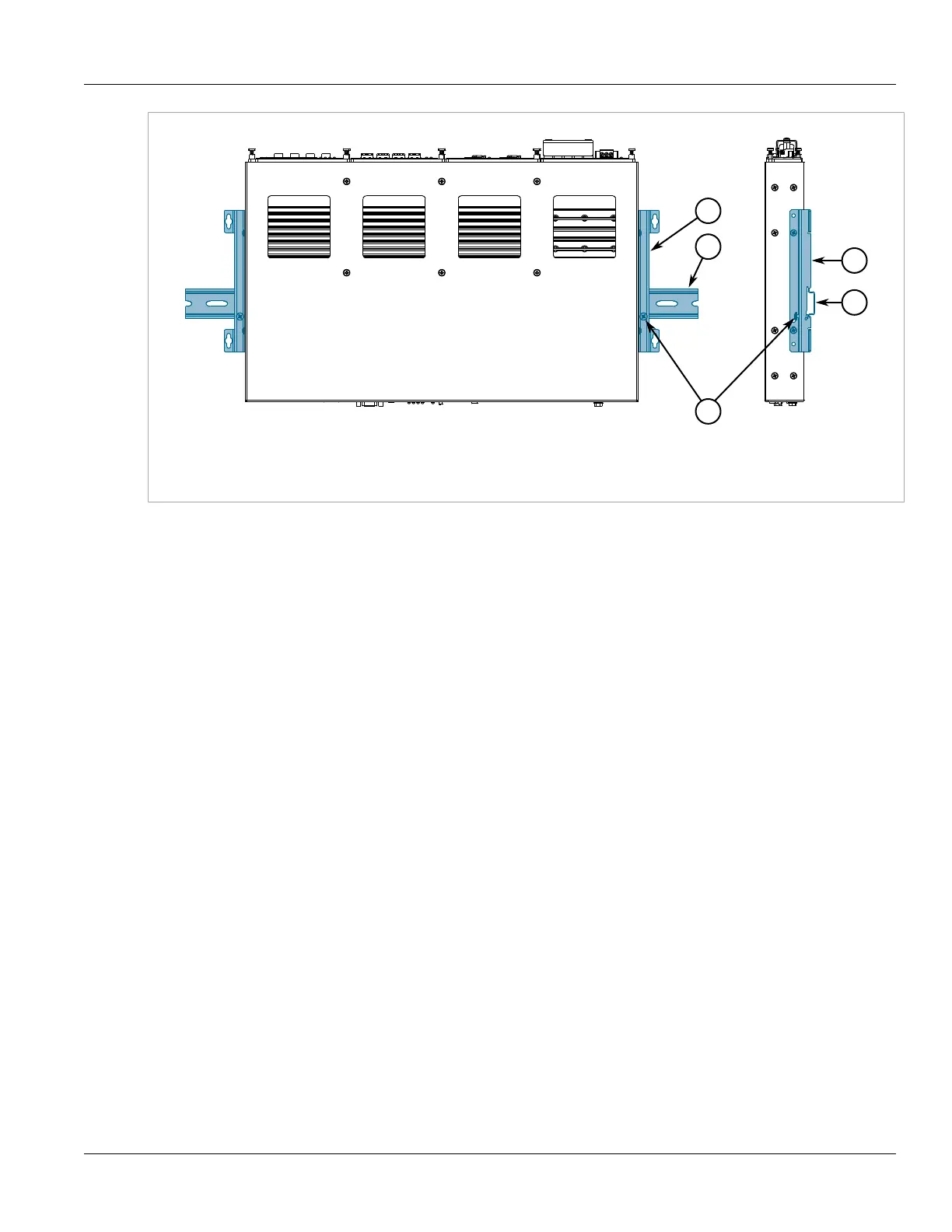

Figure3:DIN Rail Mounting
1.Panel/DIN Rail Adapter 2.DIN Rail 3.Screw
2. Install one of the supplied screws on either side of the device to secure the adapters to the DIN rails.
Section2.3.3
Mounting the Device to a Panel
For panel installations, the RUGGEDCOM RX1501 can be equipped with panel/DIN rail adapters pre-installed on
each side of the chassis. The adapters allow the device to be attached to a panel using screws.
To mount the device to a panel, do the following:
1. Place the device against the panel and mark the mounting holes on the panel.
