Chapter 2
Installing the Device
Connecting Low DC Power 15
2
1

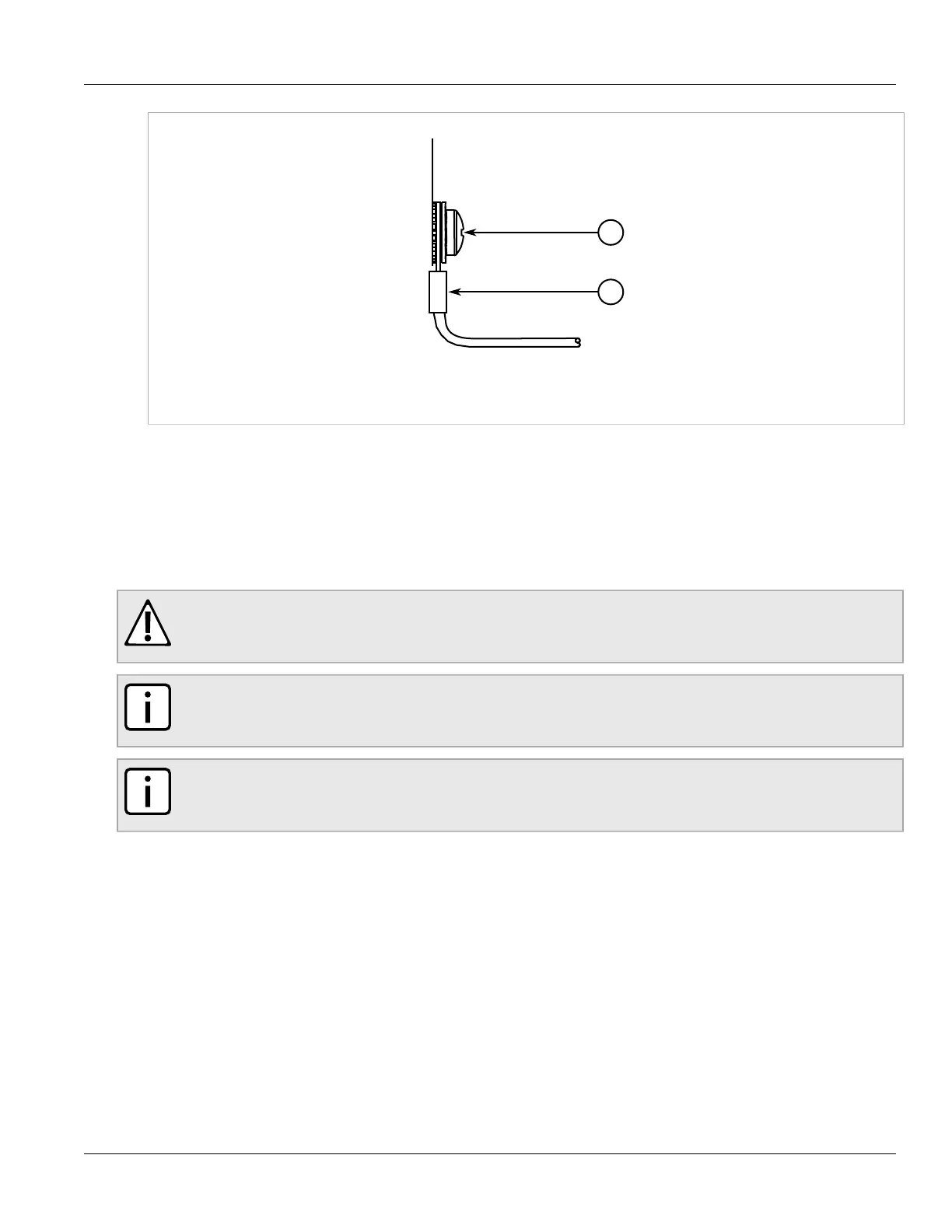

Figure9:Chassis Ground Connection
1.#10-32 Screw 2.#10 Ring Lug
7. Install the safety cover over the terminal block.
Section2.5.2
Connecting Low DC Power
To connect a low DC power supply to the device, do the following:
CAUTION!
Electrical hazard – risk of damage to equipment. Do not connect AC power cables to a 12, 24 or 48 VDC
power supply terminal block. Damage to the power supply may occur.
NOTE
The RUGGEDCOM RX1501 works with both positive VDC power supplies and negative VDC power
supplies.
NOTE
The screw terminal block is installed using Phillips screws and compression plates, allowing either bare
wire connections or crimped terminal lugs. Use #6 size ring lugs for secure, reliable connections.
1. Connect the power supply terminal block to the device.
