Siemens RUGGEDCOM RX1501 Installation Guide

Chapter 2
Installing the Device
RUGGEDCOM RX1501
Installation Guide
16 Connecting Low DC Power
4
1
3
2

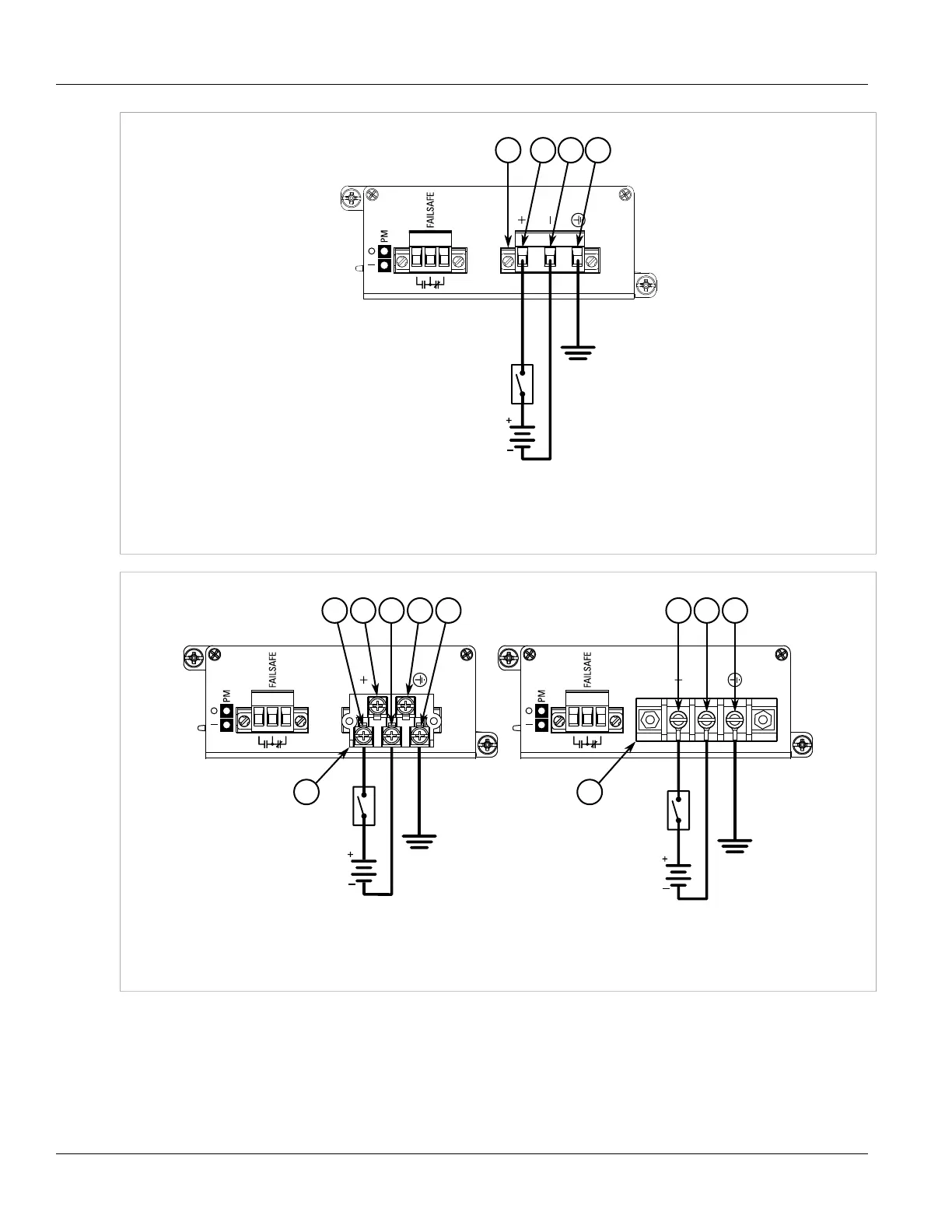

Figure10:DC Terminal Block Wiring – European-style (Euroblock) Terminal Block for 12P, 24P and 48P Power
Supplies
1.European-style (Euroblock) Terminal Block 2.Positive (+) Terminal 3.Negative (-) Terminal 4.Ground Terminal
4
5
6
5
1
6
1
4
2
3
Figure11:DC Terminal Block Wiring – Screw Terminal Block for 12P, 24P and 48P Power Supplies
1.Not Connected 2.Removable Screw Terminal Block 3.Non-removable Screw Terminal Block 4.Positive (+) Terminal
5.Negative (-) Terminal 6.Ground Terminal
