RUGGEDCOM RX1501
Installation Guide
Chapter 4
Modules
25
Modules
The RUGGEDCOM RX1501 features slots for up to four field-replaceable line modules, which can be used to
expand and customize the capabilities of the device to suit specific applications. A variety of modules are available,
each featuring a specific type of communication port: copper Ethernet, fiber optic Ethernet, SFP, WAN, cellular
modem and DDS. The RUGGEDCOM APE (Application Processing Engine) line module, a utility-grade computing
platform for running third-party applications directly from within the RUGGEDCOM RX1501, is also available.
Modules can be installed in most of the available slots in the device chassis.
Use the RUGGEDCOM ROX II software to determine which ports are equipped on the device. For more information,
refer to the RUGGEDCOM ROX II User Guide for the device.
NOTE
Slots 1 and 2 are reserved for 2-port copper, 100Base-FX fiber optic Ethernet and Gigabit Ethernet
(GbE) modules.
NOTE
Only one T1/E1 WAN module and up to two DDS modules are supported.

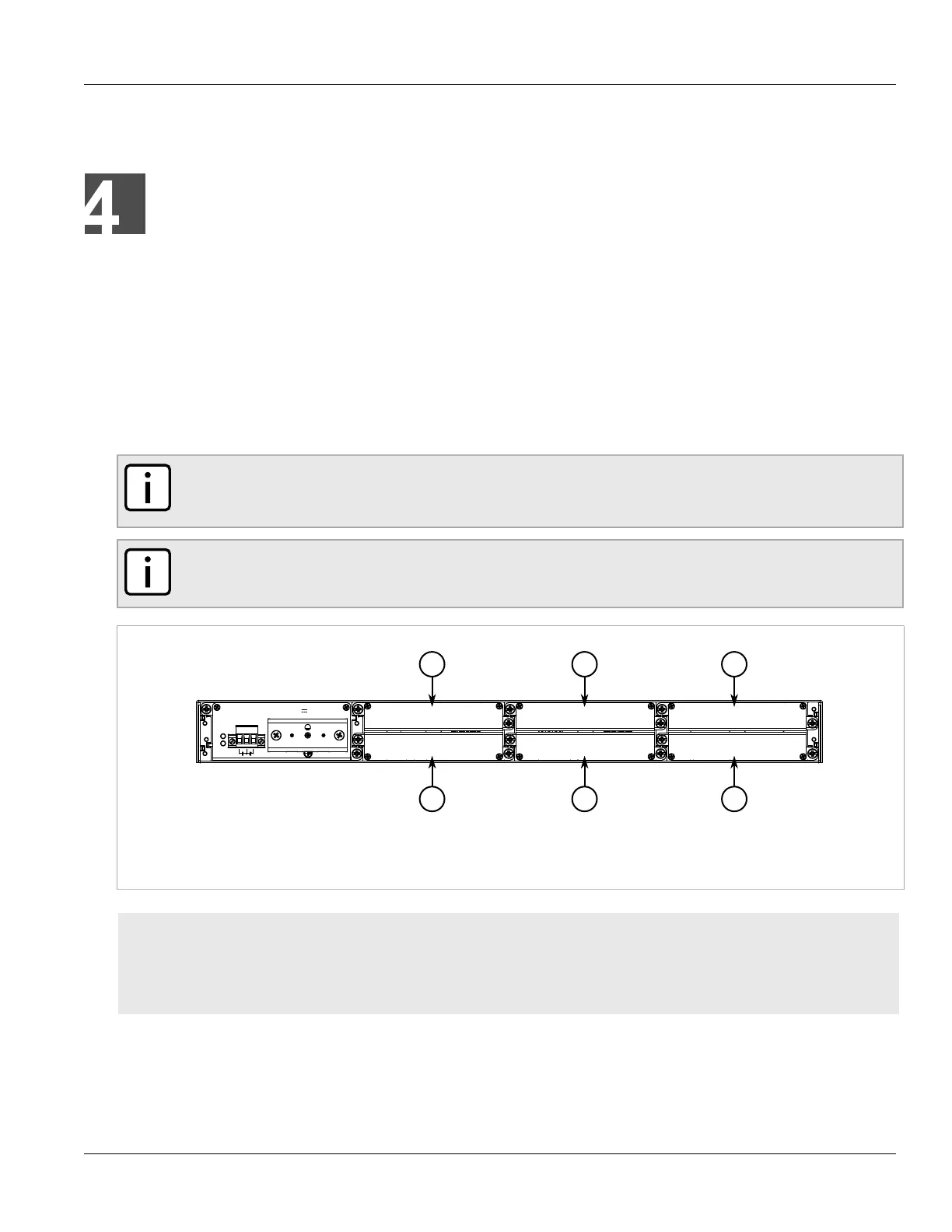

Figure20:Available Chassis Slots
1.Slot 1 2.Slot 2 3.Slot 5 4.Slot 6
CONTENTS
• Section4.1, “Available Modules”
• Section4.2, “Installing/Removing Line Modules”
• Section4.3, “Installing/Removing Power Modules”
