Siemens RUGGEDCOM RX1501 Installation Guide

Chapter 3
Device Management
RUGGEDCOM RX1501
Installation Guide
24 Accessing the CompactFlash Card
2
1

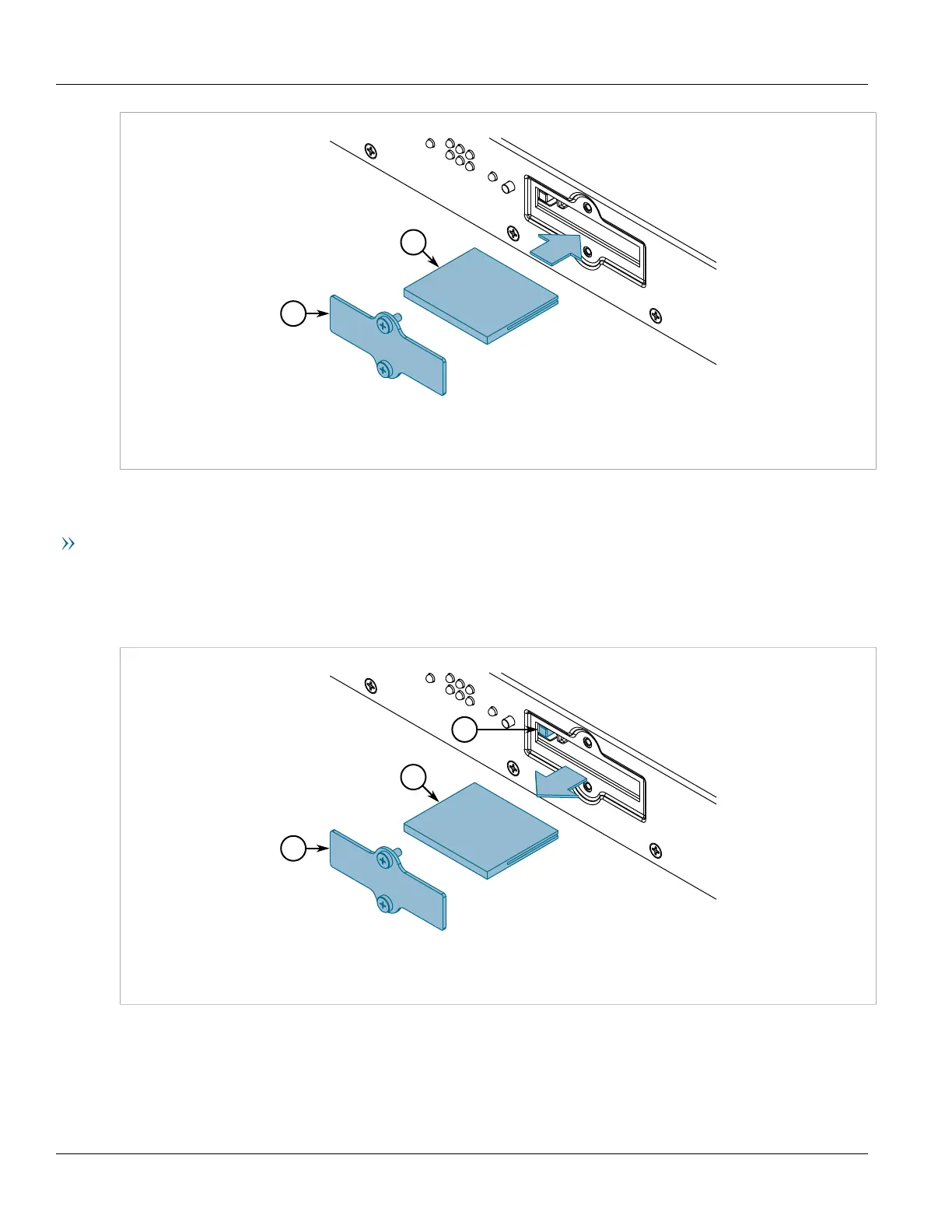

Figure18:Inserting the CF Card
1.CompactFlash Card 2.Access Panel
4. Secure the CF card access panel to the chassis.
Removing the CF card
To remove the CF card from the device, do the following:
1. Make sure the device is powered down.
2. Remove the CF card access panel.
3
2
1
Figure19:Removing the CF Card
1.Ejector Button 2.CompactFlash Card 3.Access Panel
3. Press the ejector button to the left of the CF card and then pull the card out.
4. Secure the CF card access panel to the chassis.
