Siemens RUGGEDCOM RX1501 Installation Guide

RUGGEDCOM RX1501
Installation Guide
Chapter 2
Installing the Device
Connecting Low DC Power 17
4
1
3
2

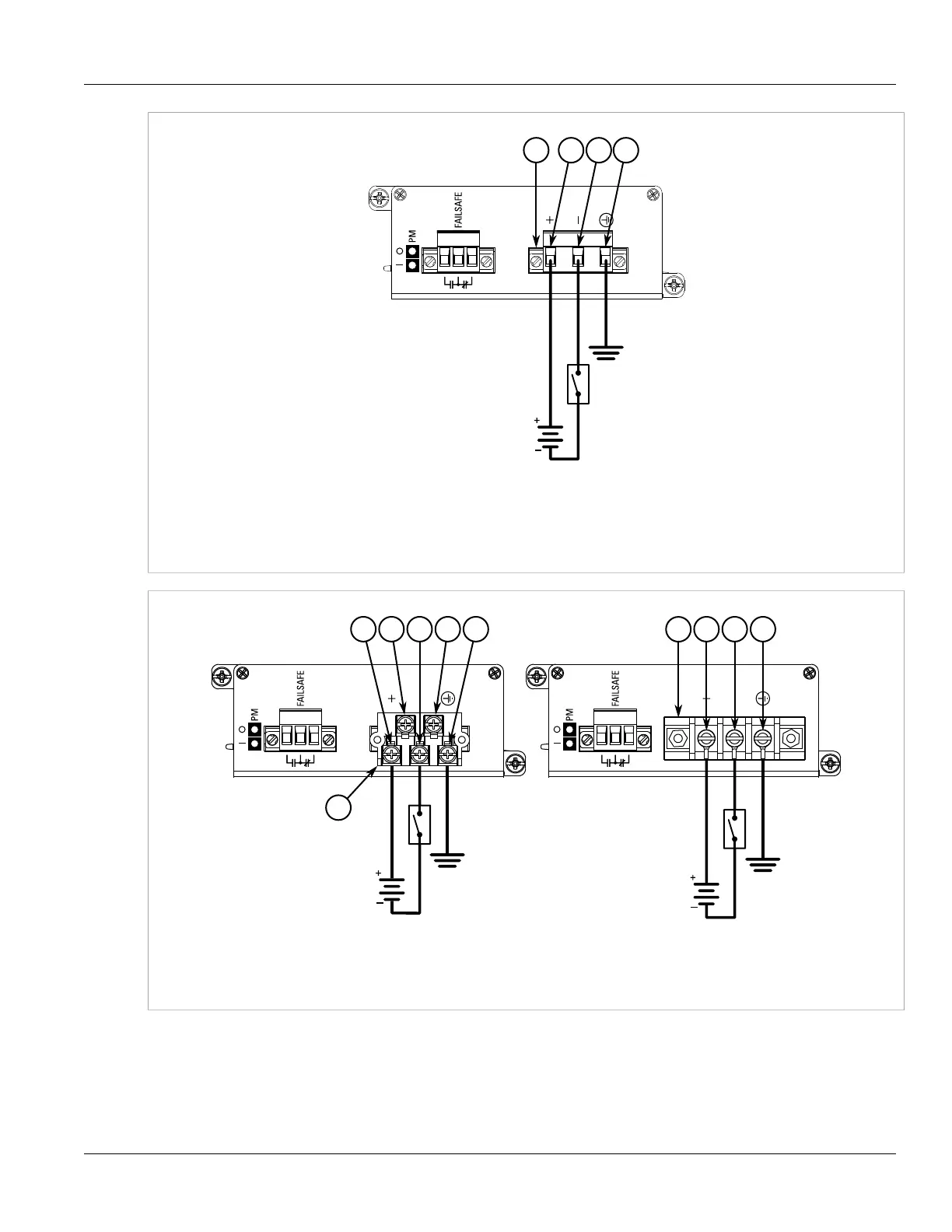

Figure12:DC Terminal Block Wiring – European-style (Euroblock) Terminal Block for -12P, -24P and -48P Power
Supplies
1.Not Connected 2.European-style (Euroblock) Terminal Block 3.Positive (+) Terminal 4.Negative (-) Terminal 5.Ground
Terminal
3
4
5
6
2
5
1
4
1 6
Figure13:DC Terminal Block Wiring – Screw Terminal Block for -12P, -24P and -48P Power Supplies
1.Not Connected 2.Removable Screw Terminal Block 3.Non-removable Screw Terminal Block 4.Positive (+) Terminal
5.Negative (-) Terminal 6.Ground Terminal
2. Connect the positive wire from the power source to the positive (+) terminal on the terminal block.
3. Connect the negative wire from the power source to the negative (-) terminal on the terminal block.
4. For screw terminal blocks, install the safety cover.
