Chapter 2
Installing the Device
RUGGEDCOM RX1501
Installation Guide
14 Connecting High AC/DC Power
4
3
2
1

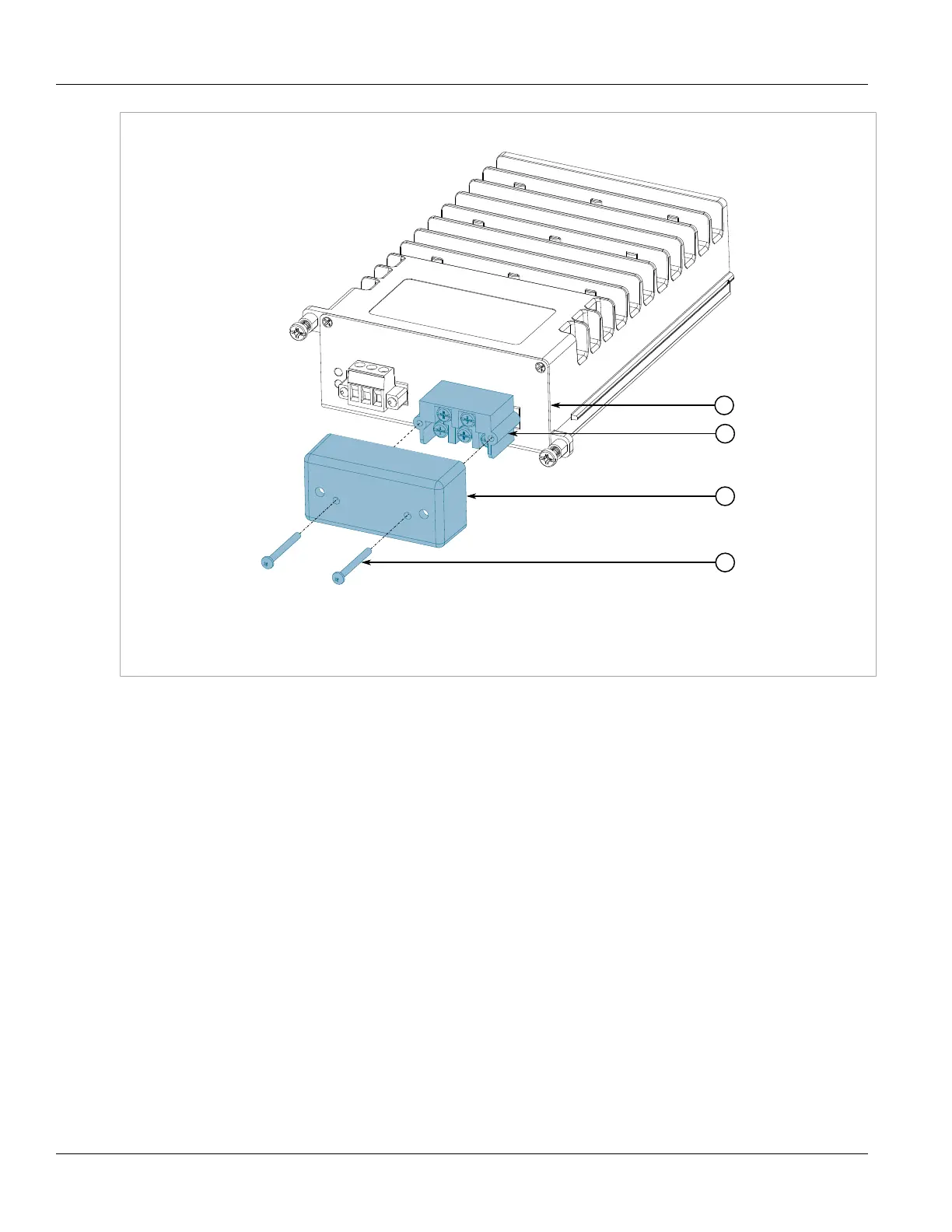

Figure8:Assembling the Safety Cover
1.Screw 2.Safety Cover 3.Screw Terminal Block 4.RUGGEDCOM RX1501 Device
5. Using a braided wire or other appropriate grounding wire, connect the ground terminal to the chassis ground
connection. The ground terminal is used as the ground conductor for surge and transient suppression
circuitry internal to the unit.
6. Using a #10 ring lug and #10-32 screw, secure the ground terminal on the power source to the chassis
ground terminal on the device. Make sure the lug is tightened to 1.1 N·m (9.5 lbf·in).
