Mounting
5.2 Types of installation
SCALANCE S
Commissioning and Hardware Installation Manual, 05/2016, C79000-G8976-C266-06
33
Uninstalling
To remove the SCALANCE S from the DIN rail:
1. First disconnect the TP cables and pull out the terminal block for the power supply and
the signaling contact.
2. Use a screwdriver to release the lower rail catch of the device and pull the lower part of
the device away from the rail.

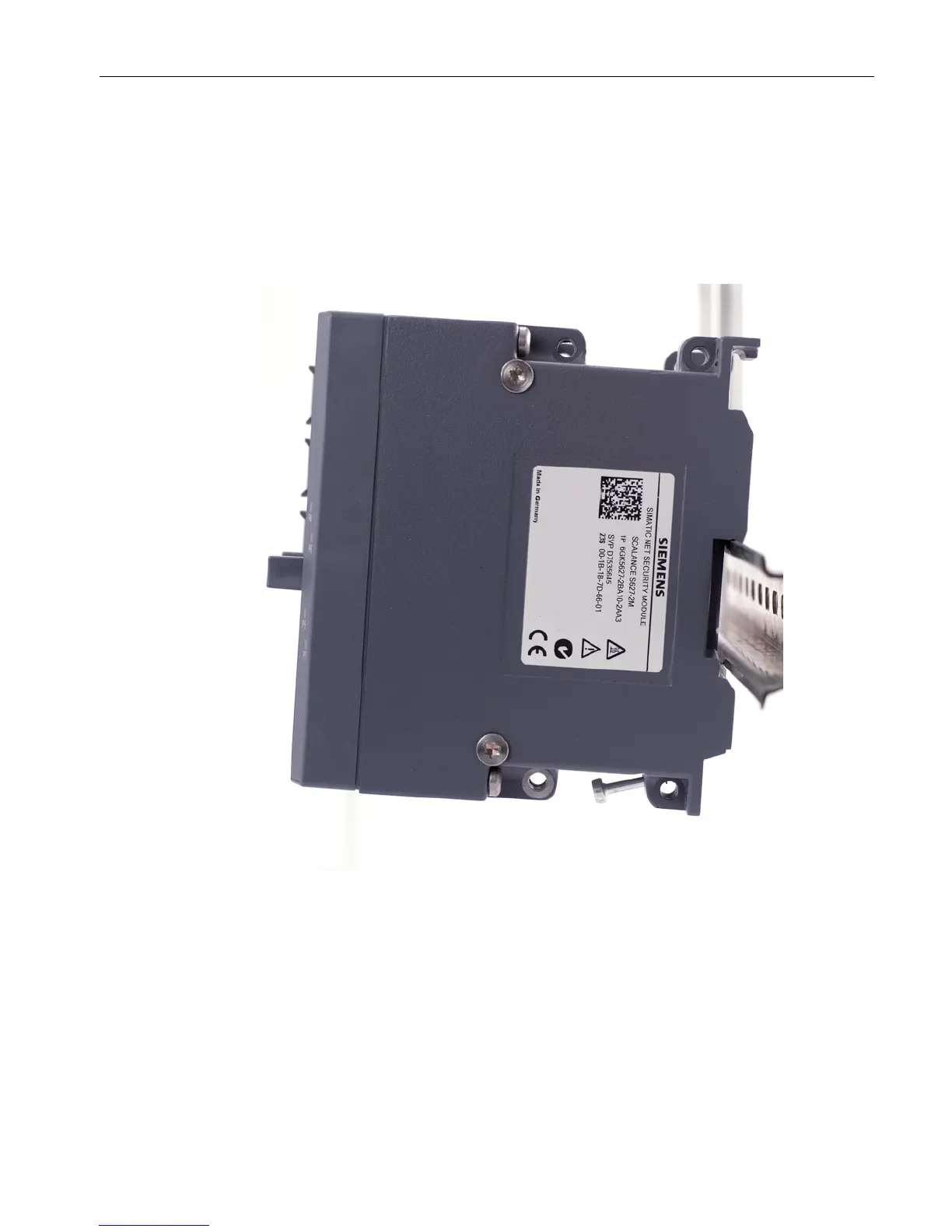

Image 5-2 SCALANCE S removing from a DIN rail (35 mm)
