Description
3.6 Displays
SCALANCE S
Commissioning and Hardware Installation Manual, 05/2016, C79000-G8976-C266-06
19
3.6
Displays

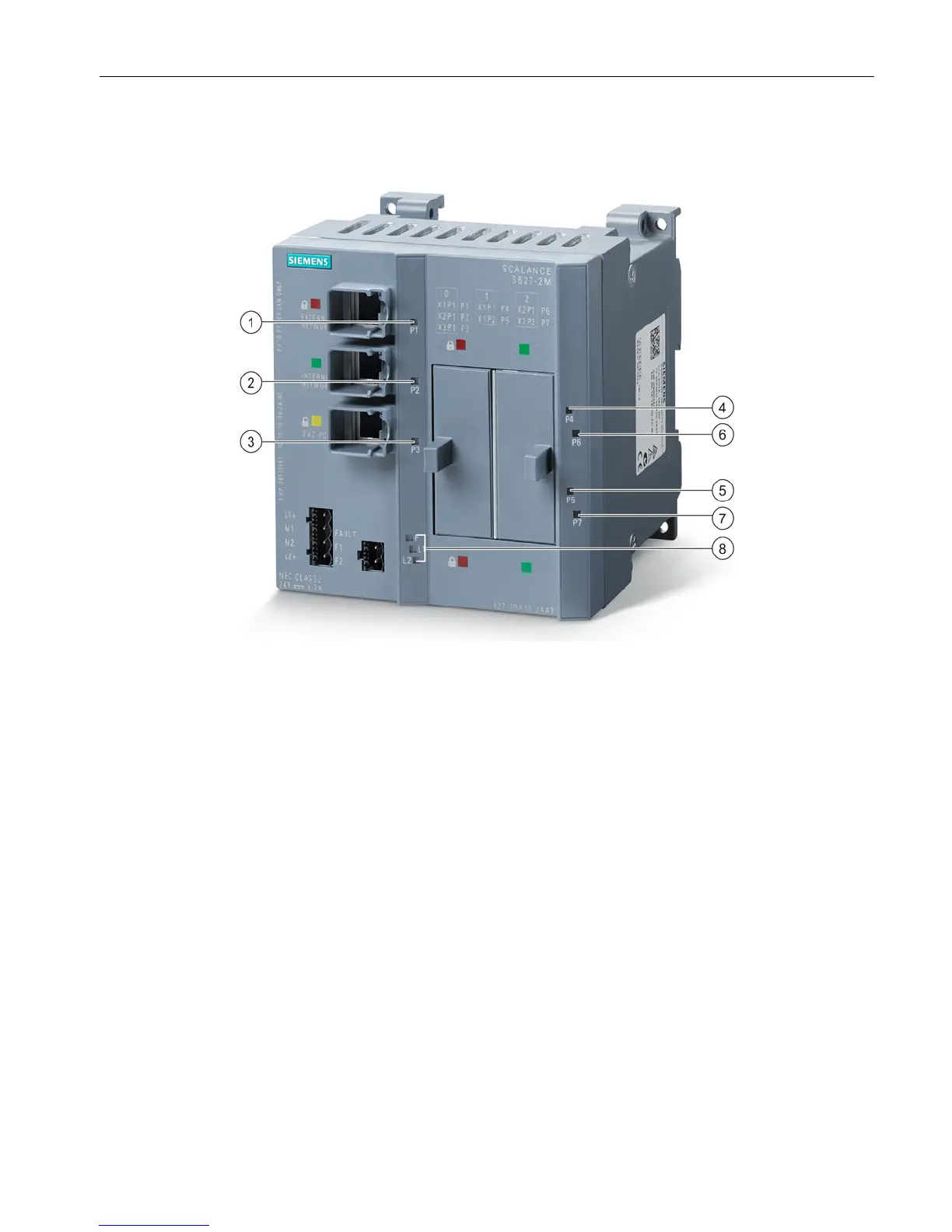

Image 3-4 Operating displays
①
Port status display P1
②
Port status display P2
③
Port status display P3
④
Port
status display P4
⑤
Port status display P5
⑥
Port status display P6
⑦
Port status display P7
⑧
Fault display (F) and power display (L1, L2)
