Mounting
5.2 Types of installation
SCALANCE S
34 Commissioning and Hardware Installation Manual, 05/2016, C79000-G8976-C266-06
5.2.2
Installation on a standard rail
Installation on a SIMATIC S7-300 standard rail
1. Place the upper guide at the top of the SCALANCE S housing in the S7 standard rail.
2. Screw the SCALANCE S device to the lower part of the standard rail.

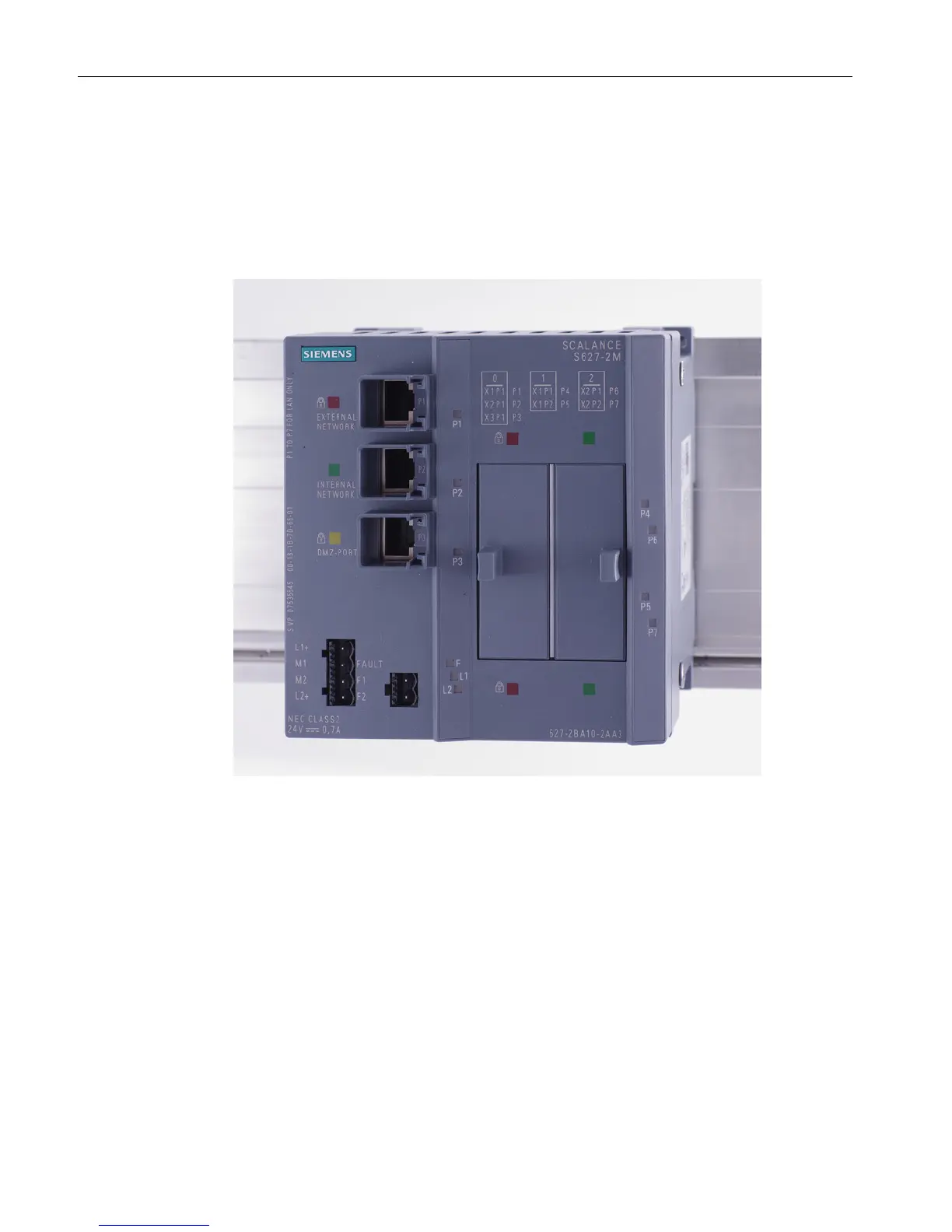

Image 5-3 SCALANCE S installation on a SIMATIC S7-300 standard rail
