Description of the device
4.2 Device view
SCALANCE W778-1 / W738-1
20 Operating Instructions, 03/2022, C79000-G8976-C450-07

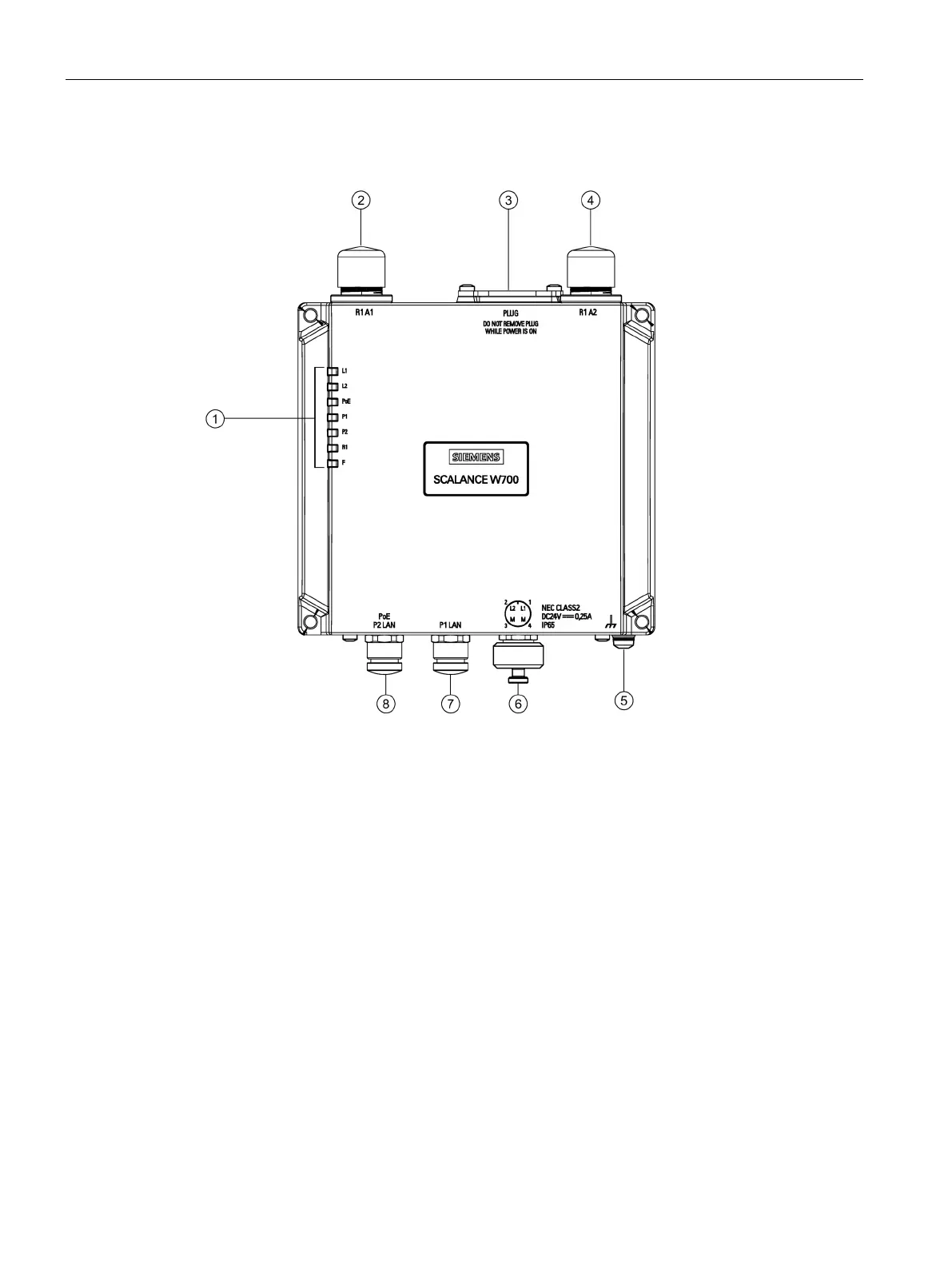

4.2 Device view
①
LED display
②
Antenna connector R1A1
③
PLUG slot / Reset button
④
Antenna connector R1A2
⑤
Grounding
⑥
Connector for power supply
⑦
Ethernet connector P1
⑧
Ethernet connector P2 (PoE capability)
