Installation and removal
5.4 Installation on a DIN rail
SCALANCE W778-1 / W738-1
42 Operating Instructions, 03/2022, C79000-G8976-C450-07
5.4 Installation on a DIN rail
5.4.1 Installation with the DIN rail mounting adapter
The DIN rail mounting adapter is not included with the product, see Accessories
(Page 21).
Assembly

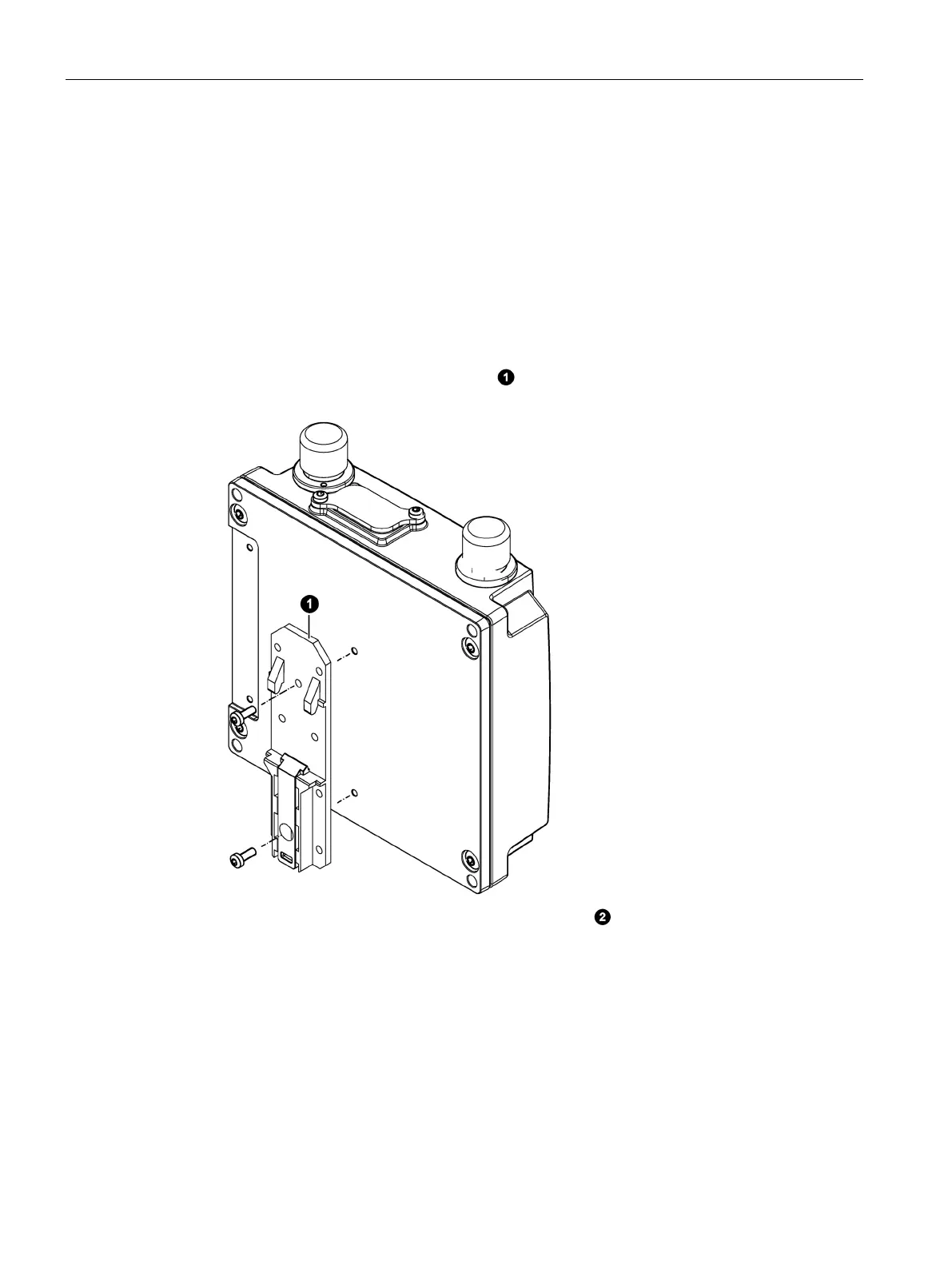

1. Screw the DIN rail mounting adapter to the rear of the device. The mounting
material is supplied with the DIN rail mounting adapter.
2. Place the device on the upper edge of the DIN rail
.
