Installation and removal
5.4 Installation on a DIN rail
SCALANCE W778-1 / W738-1
Operating Instructions, 03/2022, C79000-G8976-C450-07
43

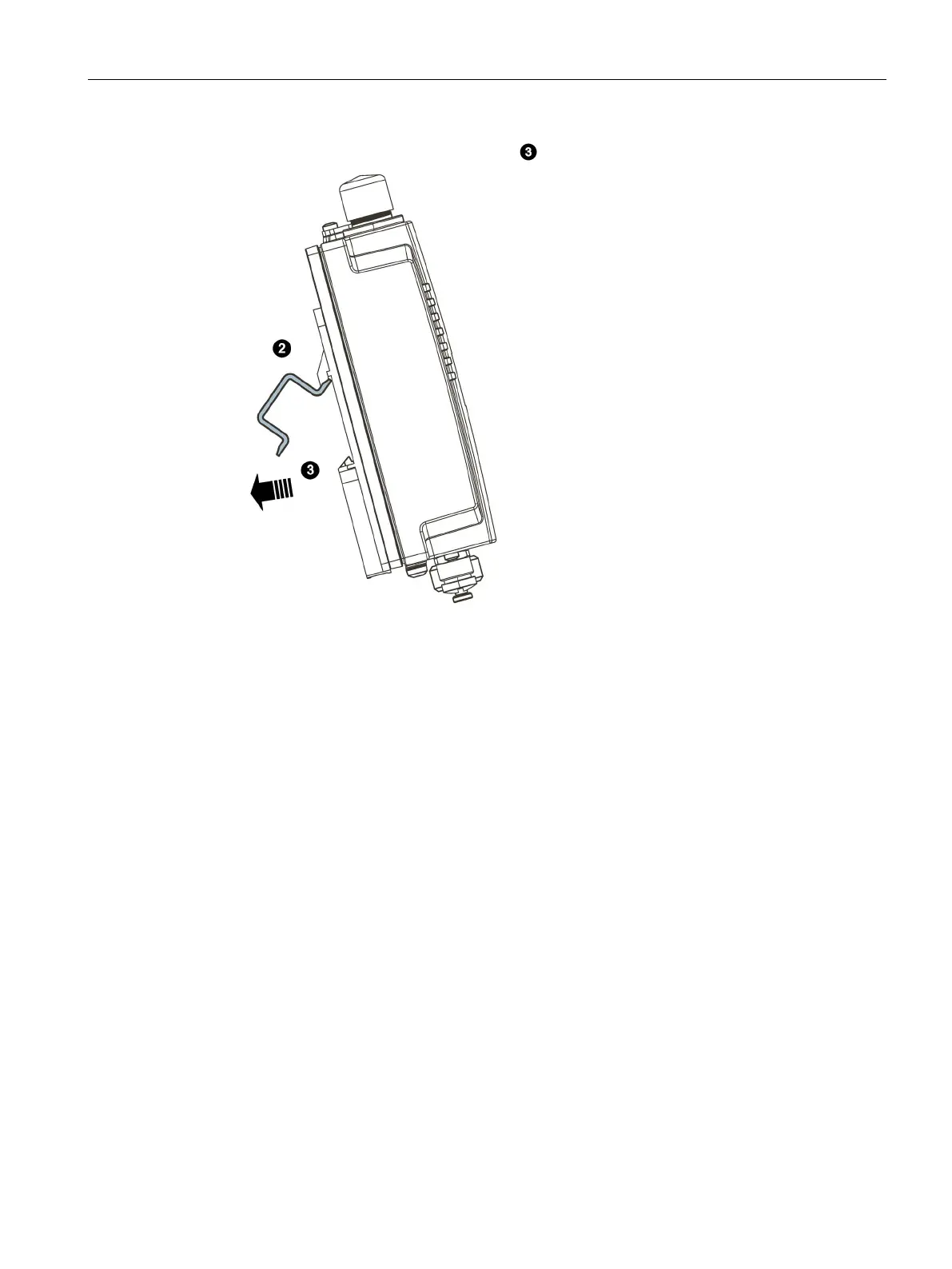

3. Press the device against the DIN rail until the DIN rail slider catch locks in place.
4. Connect the power supply, refer to the section "Power supply (Page 54)".
5. Fit the antennas, refer to the section "Antennas (Page 57)".
