Description of the device
4.5 LED display
SCALANCE W778-1 / W738-1
28 Operating Instructions, 03/2022, C79000-G8976-C450-07
-8DJ
-8DJ may only be used with the flexible connecting cable 6XV1875-
5CH50 (5 m length) or 6XV1875
-5CN10 (10 m length). Other flexible connecting cables
Only one antenna per device can be used (connected to R1A1, R1A2 or R2A1, R2A2).
-8DK
-8DK may only be used with the flexible connecting cable 6XV1875
-
5CN10 (10 m length). Other flexible connecting cables are not permitted.
Only one antenna per device can be used (connected to R1A1, R1A2 or
R2A1, R2A2).

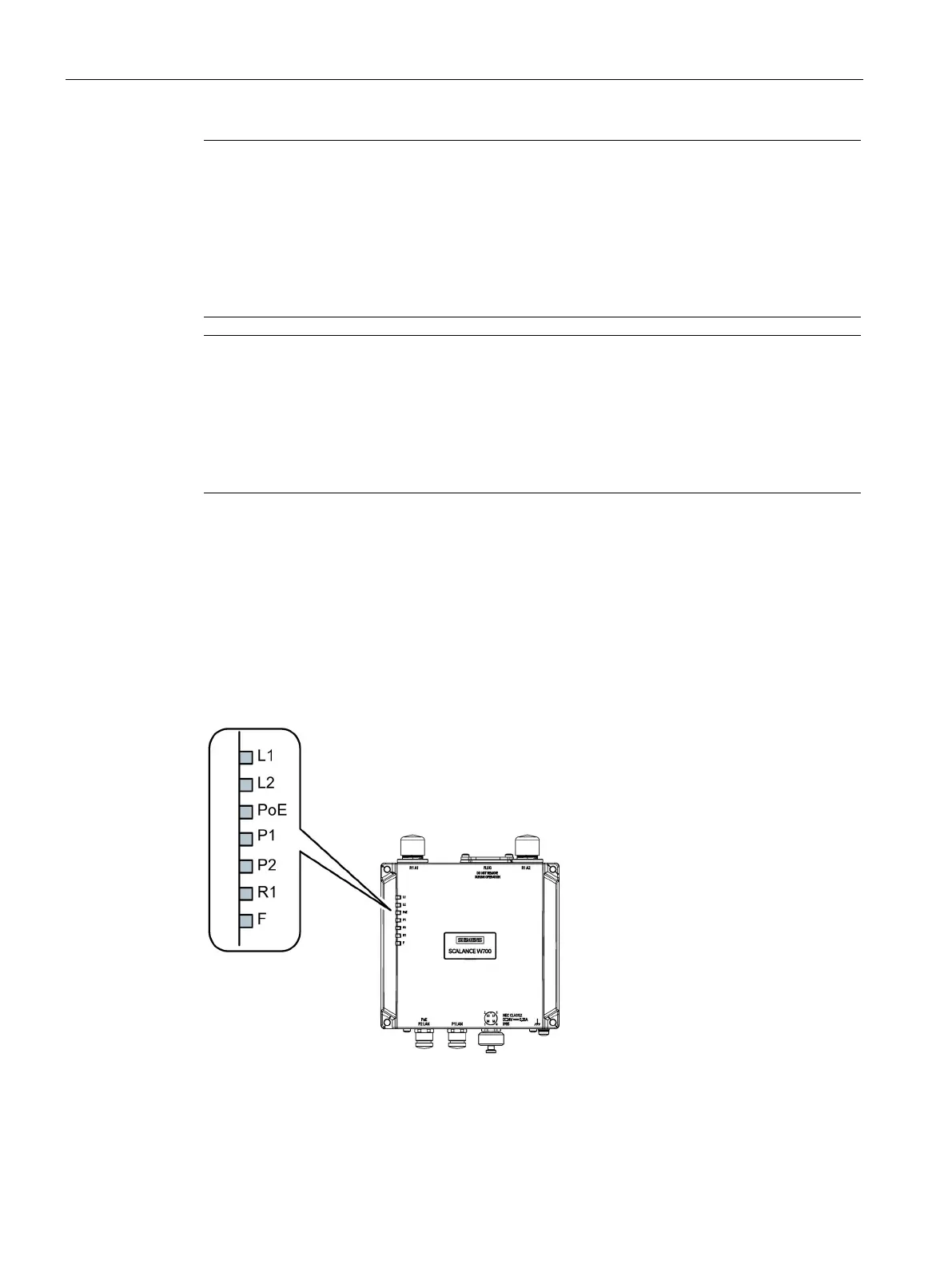

4.5 LED display
Information on operating status and data transfer
On the front of the housing, several LEDs provide information on the operating status of
the device:
