Configuring with Web Based Management
6.4 "Information" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
132 Configuration Manual, 08/2018, C79000-G8976-C267-13

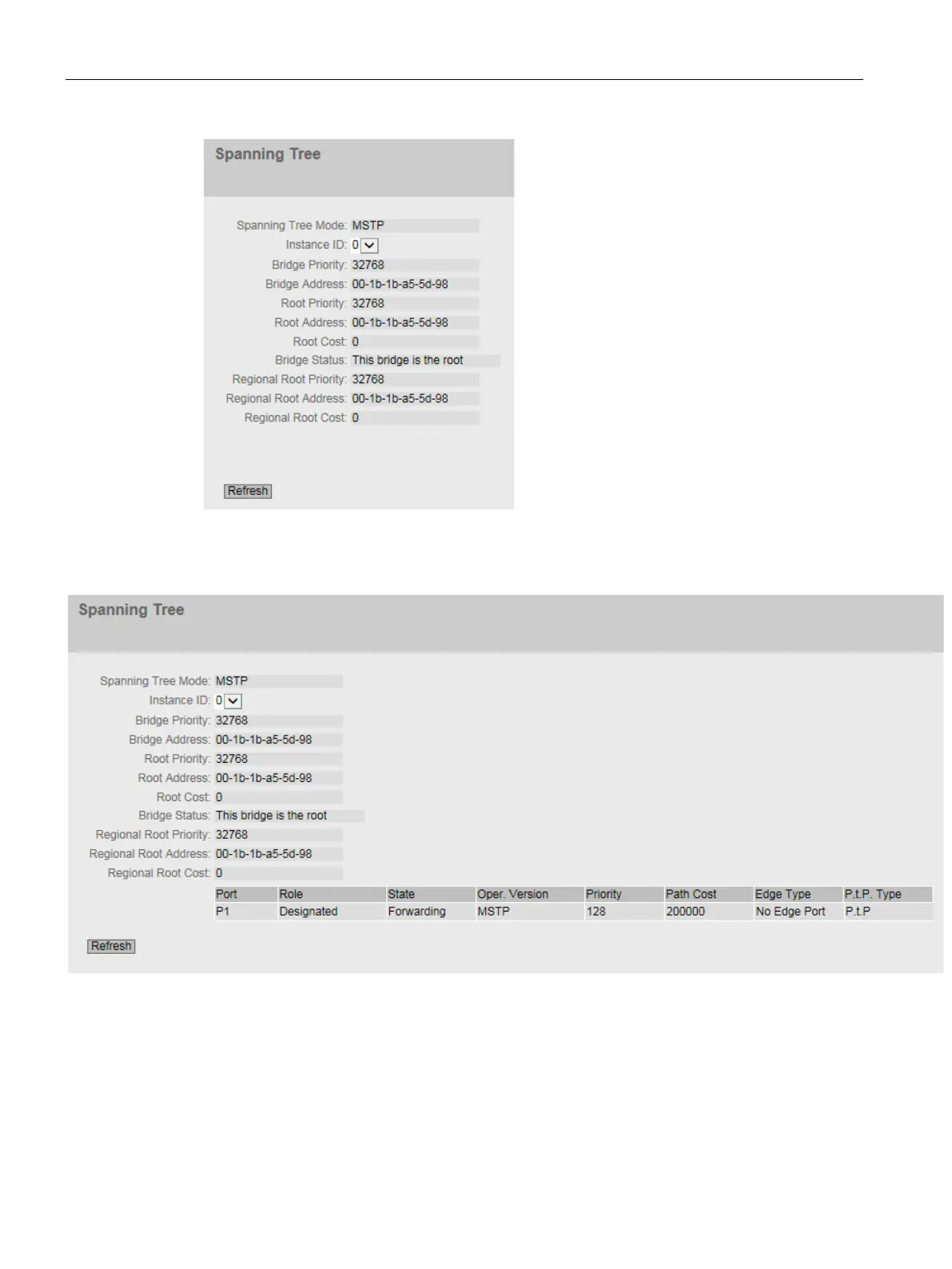

If Spanning Tree is turned on, the information about the status of the instance selected in the
"Instance ID" drop-down list is displayed and the information about the configured ports is
shown in the table. The information shown depends on the Spanning Tree mode.
