Configuring with Web Based Management
6.7 "Layer 2" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
Configuration Manual, 08/2018, C79000-G8976-C267-13
331
Port-based VLAN
Processing received frames

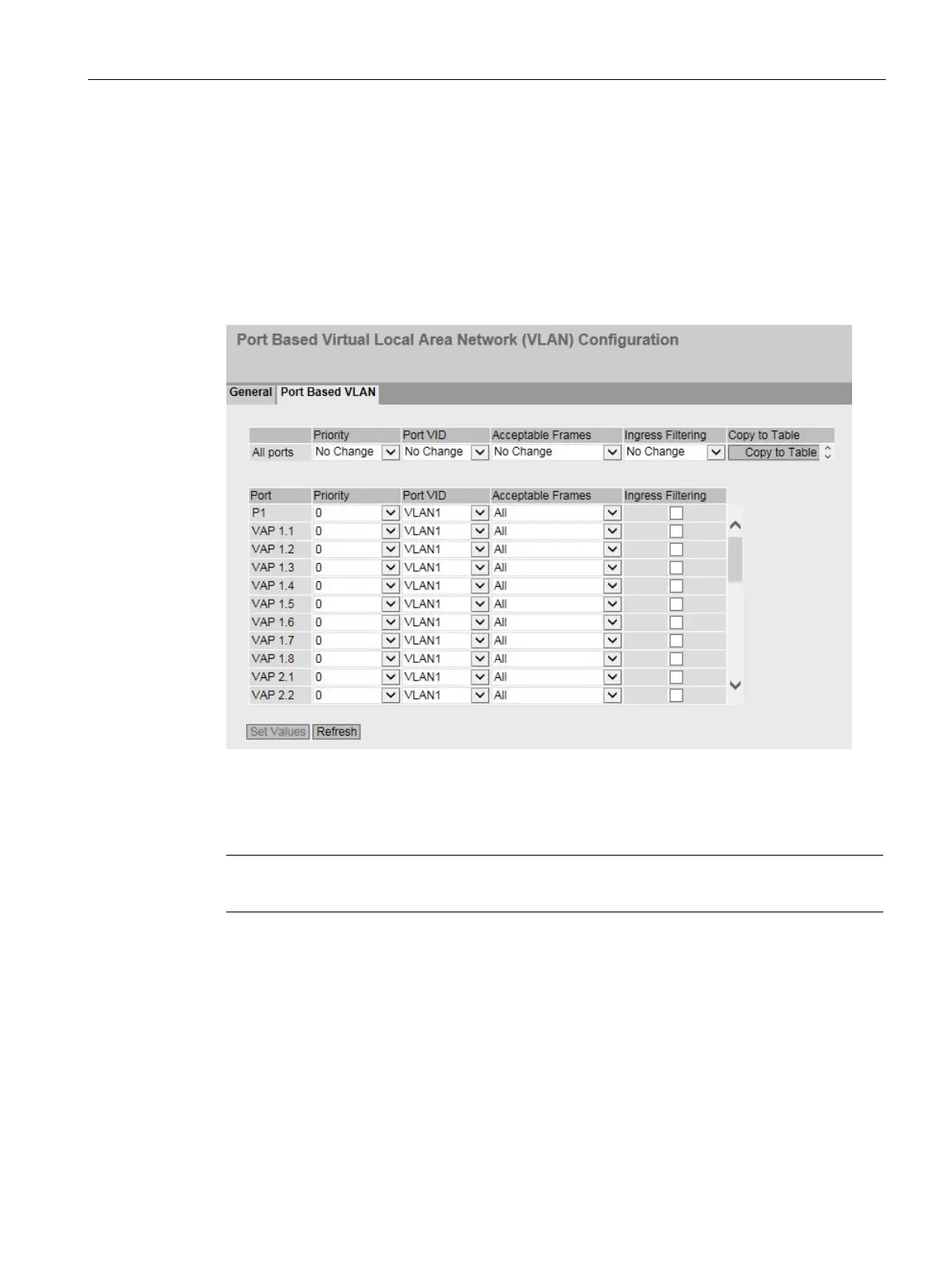

On this page, you specify the configuration of the port properties for receiving frames.
:
● On the "General" page, "802.1Q VLAN Bridge" is set for "Base Bridge Mode".
Table 1 has the following columns:
Note
Table 1 is only available if at least one VLAN is configured.
●
Shows that the settings are valid for all ports of table 2.
●
Priority / Port VID / Acceptable Frames / Ingress Filtering
In the drop-down list, select the setting for all ports. If "No Change" is selected, the entries
of the corresponding column in Table 2 remain unchanged.
●
If you click the button, the setting is adopted for all ports of table 2.
