Configuring with Web Based Management
6.7 "Layer 2" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
348 Configuration Manual, 08/2018, C79000-G8976-C267-13
PROFINET uses LLDP for topology diagnostics. In the default setting, LLDP is enabled for
all ports; in other words, LLDP frames are sent and received on all ports. With this function,
you have the option of enabling or disabling sending and/or receiving per port.

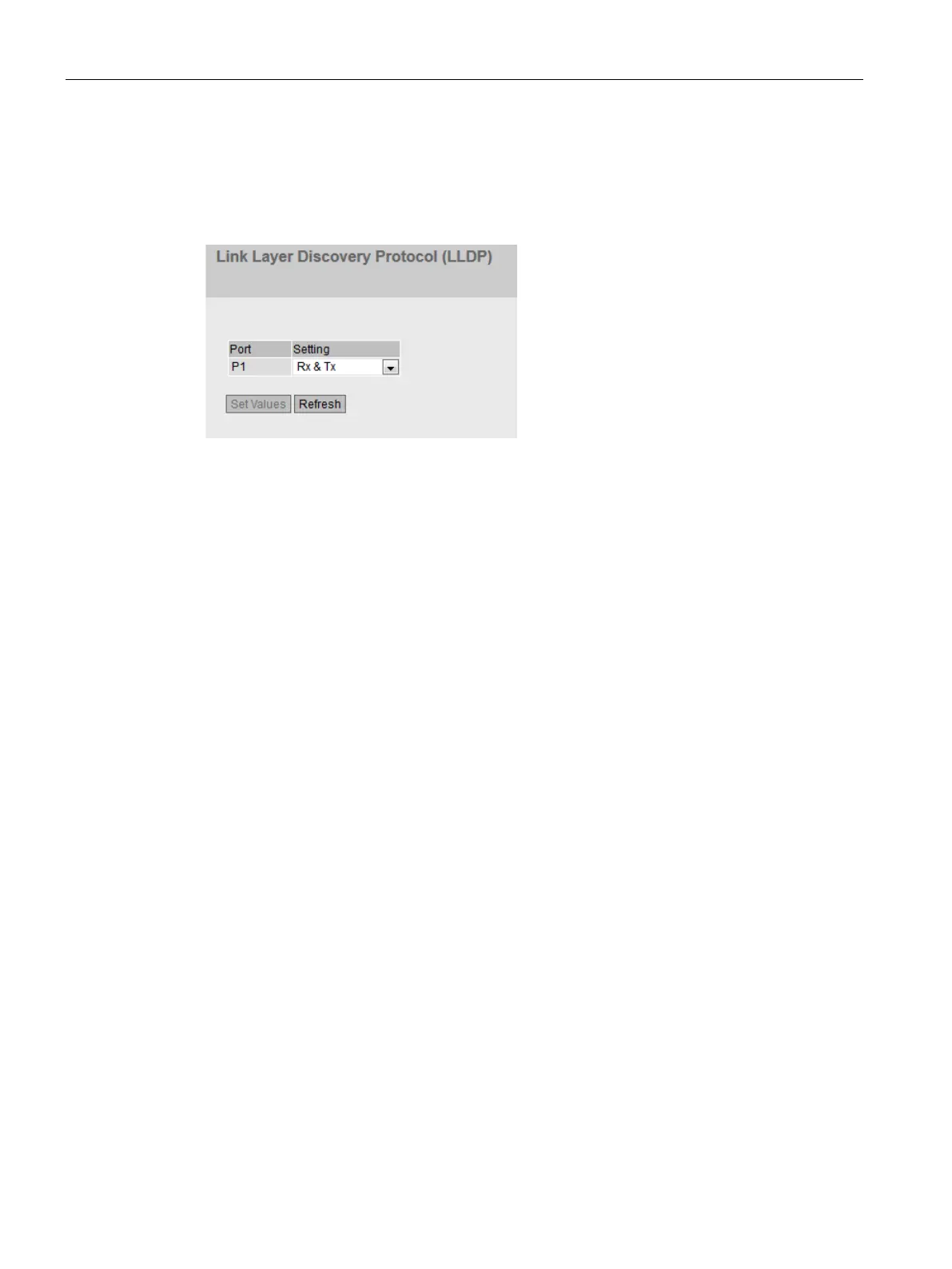

The table has the following columns:
●
Shows the port.
●
Specify the LLDP functionality. The following options are available:
– Tx
This port can only send LLDP frames.
– Rx
This port can only receive LLDP frames.
– Rx & Tx
This port can receive and send LLDP frames.
– "-" (Disabled)
This port can neither receive nor send LLDP frames.
1. Select the required LLDP functionality from the drop-down list.
2. Click the "Set Values" button.
