7.2 Dimension drawing - EM496-4 extender module
SCALANCE X-400 extender modules
Compact Operating Instructions, 04/2013, A5E00367421-10
39
7.2 Dimension drawing - EM496-4 extender module

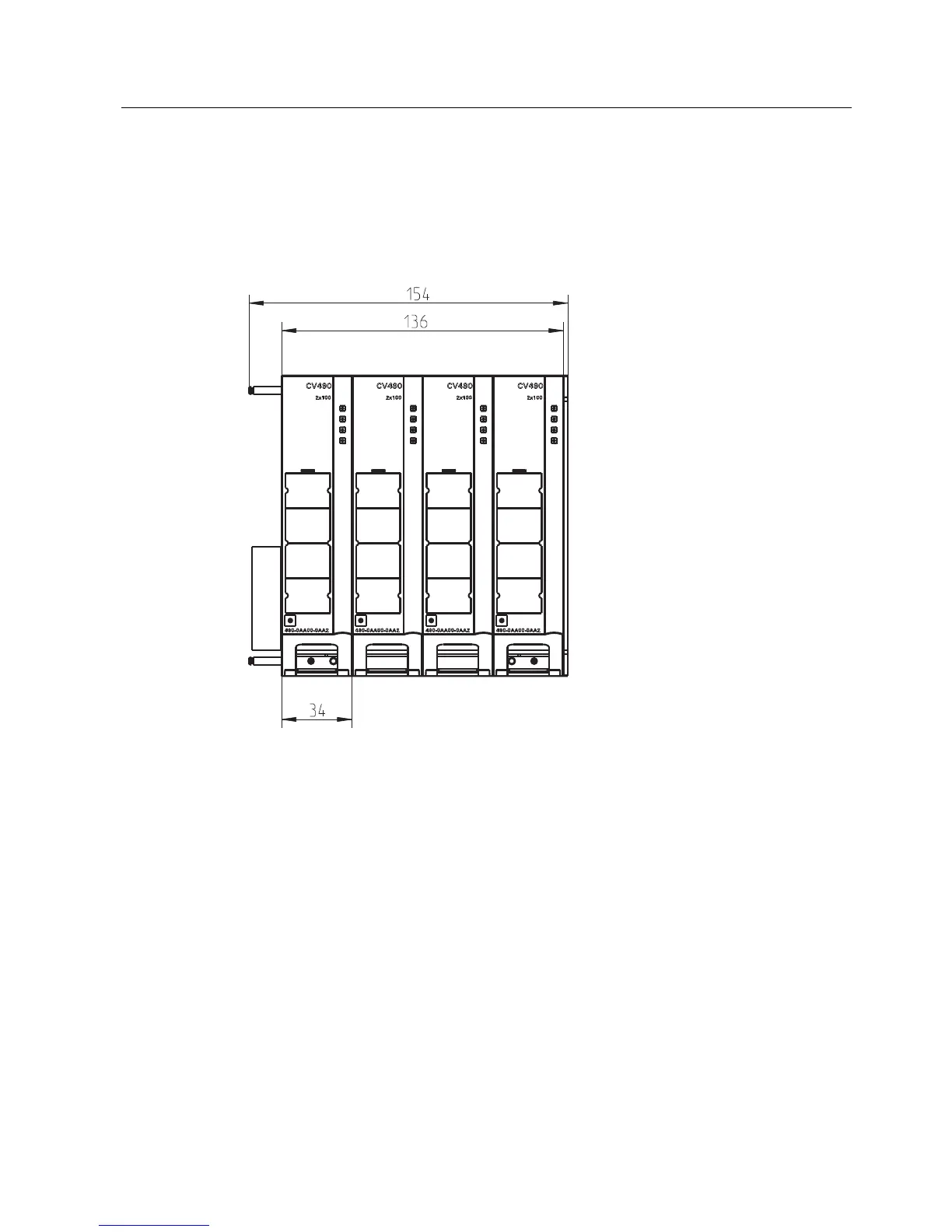

Dimension drawing EM496-4
Figure 7-3 Extender module EM496-4 front
