Connecting up
5.3 Power supply
SCALANCE XC-100
Operating Instructions, 06/2016, C79000-G8976-C415-02
33
Position and assignment

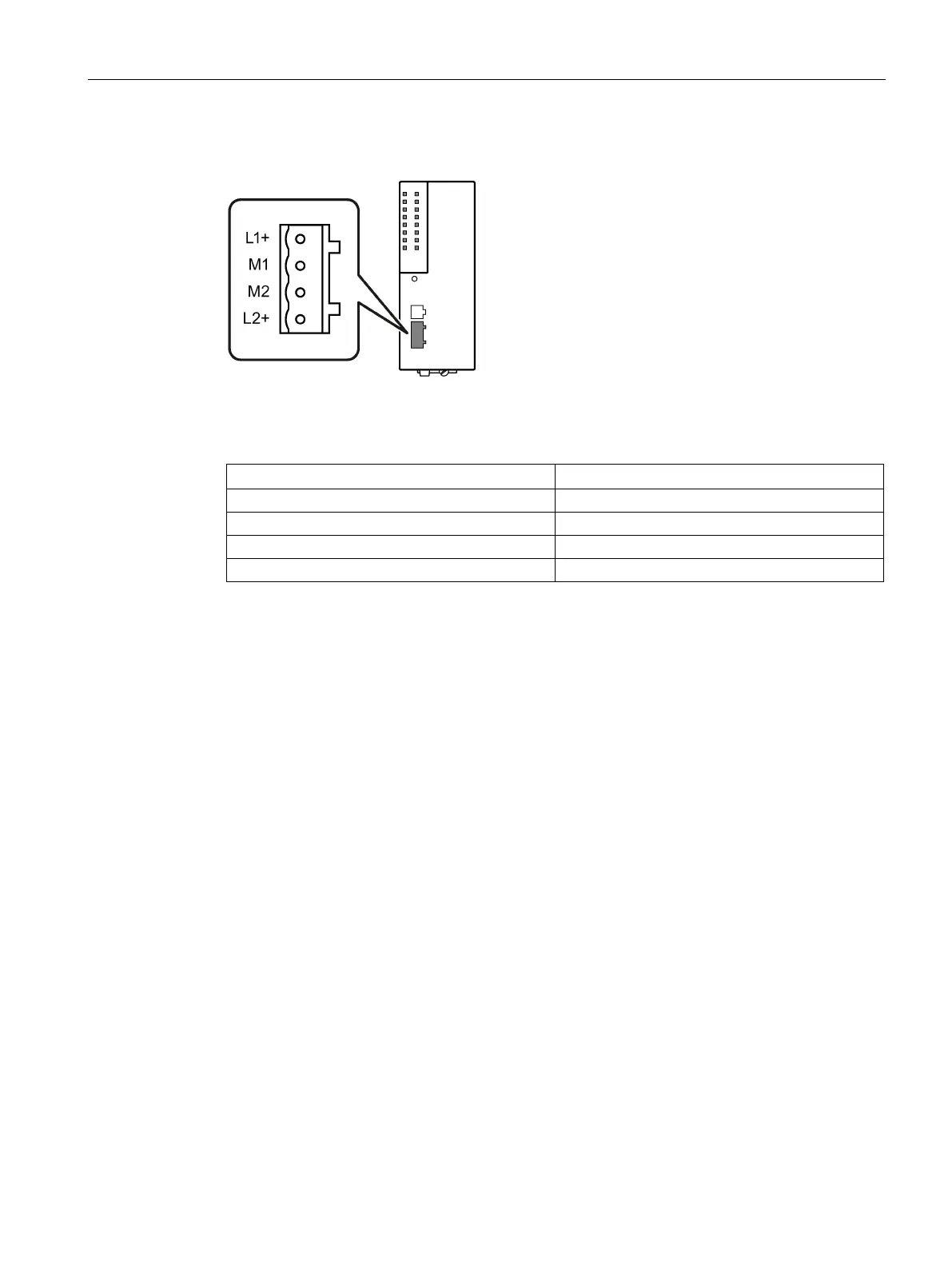

Image 5-1 Position of the power supply on the SCALANCE XC-100 and the assignment of the
terminal block
Contact
Assignment
L1+
L1+ DC 12 ... 24 V
M1
Ground
M2
Ground
L2+
L2+ DC 12 ... 24 V
