Siemens SCALANCE XC-100 - SCALANCE XC116;XC124 Front View

Dimension drawings
9.1 SCALANCE XC-100 dimension drawings
SCALANCE XC-100
56 Operating Instructions, 06/2016, C79000-G8976-C415-02
Front view of the SCALANCE XC116, SCALANCE XC124
①
Securing bar in the rail mounting position
②
Securing bar in the wall mounting position (as supplied).

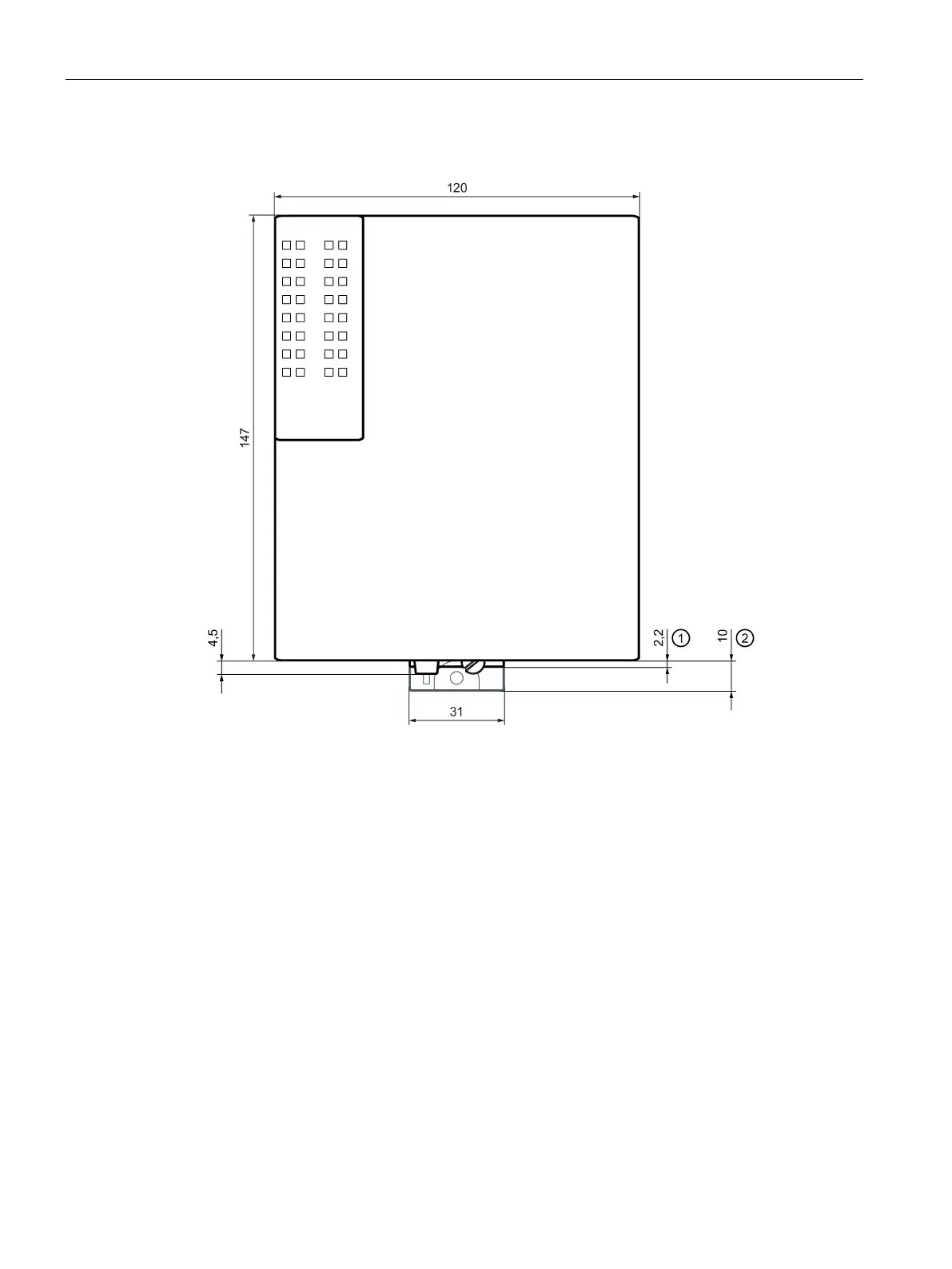

Image 9-2 Width and height
