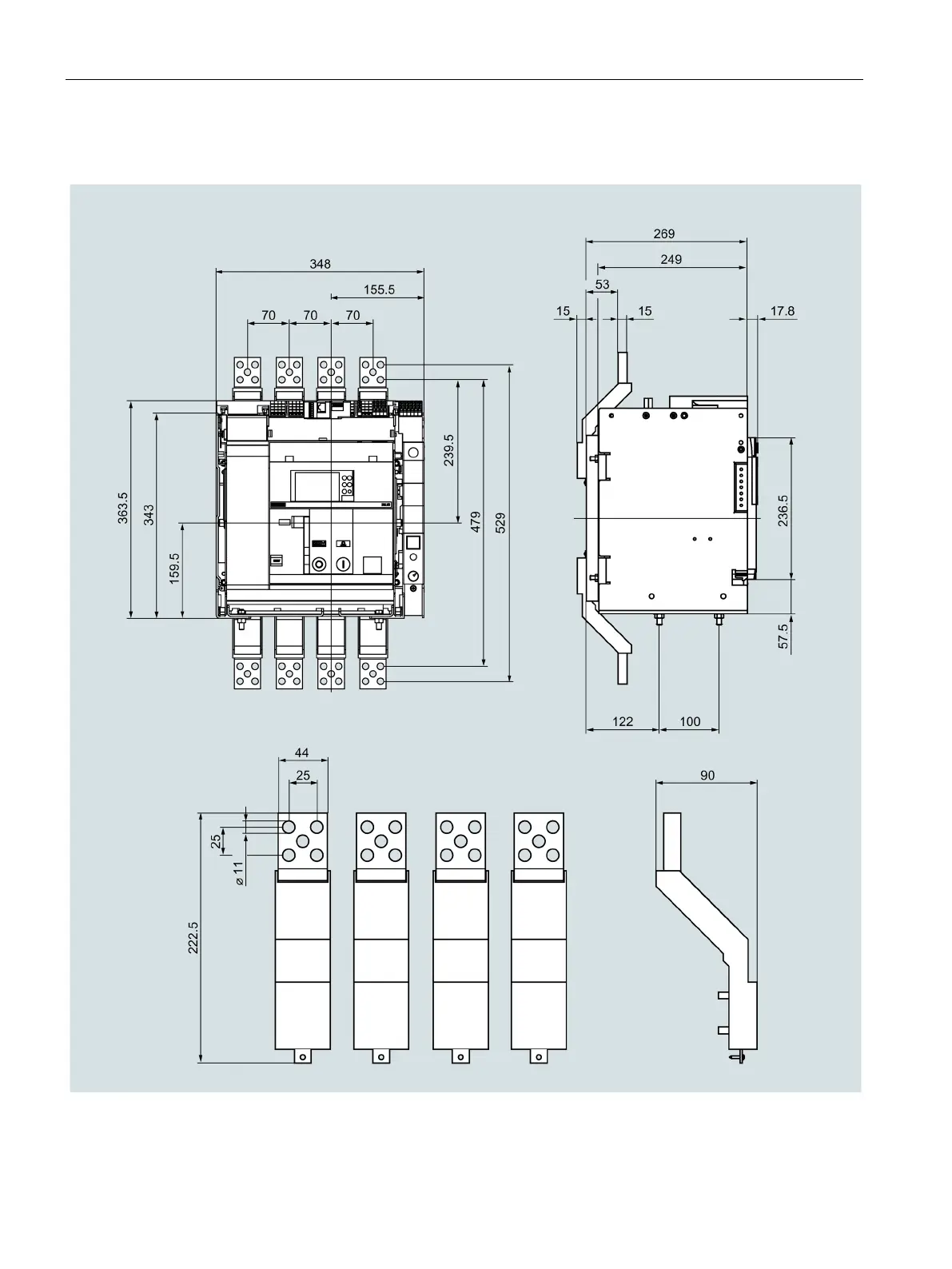

Dimension drawings
9.2 Withdrawable breaker
3VA27 molded case circuit breakers & 3WL10 air circuit breakers
236 Manual, 10/2018, L1V30499596002-01
9.2.4
Front extended terminal
