PC Adapter USB
A5E00166353-02
1-1
1 Features of the PC Adapter USB
The PC Adapter USB is compatible with USB V1.1 and conforms to the norms for a
"low-powered“ USB device. The PC Adapter USB supports the energy saving
mode (hibernate mode).
1.1 Function
The PC Adapter USB connects a PC to the MPI/DP interface of an S7/M7/C7
system through a USB port.
No slot is required in the PC and therefore the adapter can also be used for non-
expandable PCs such as notebooks.
USB
MPI/DP
PC Ada
ter USB

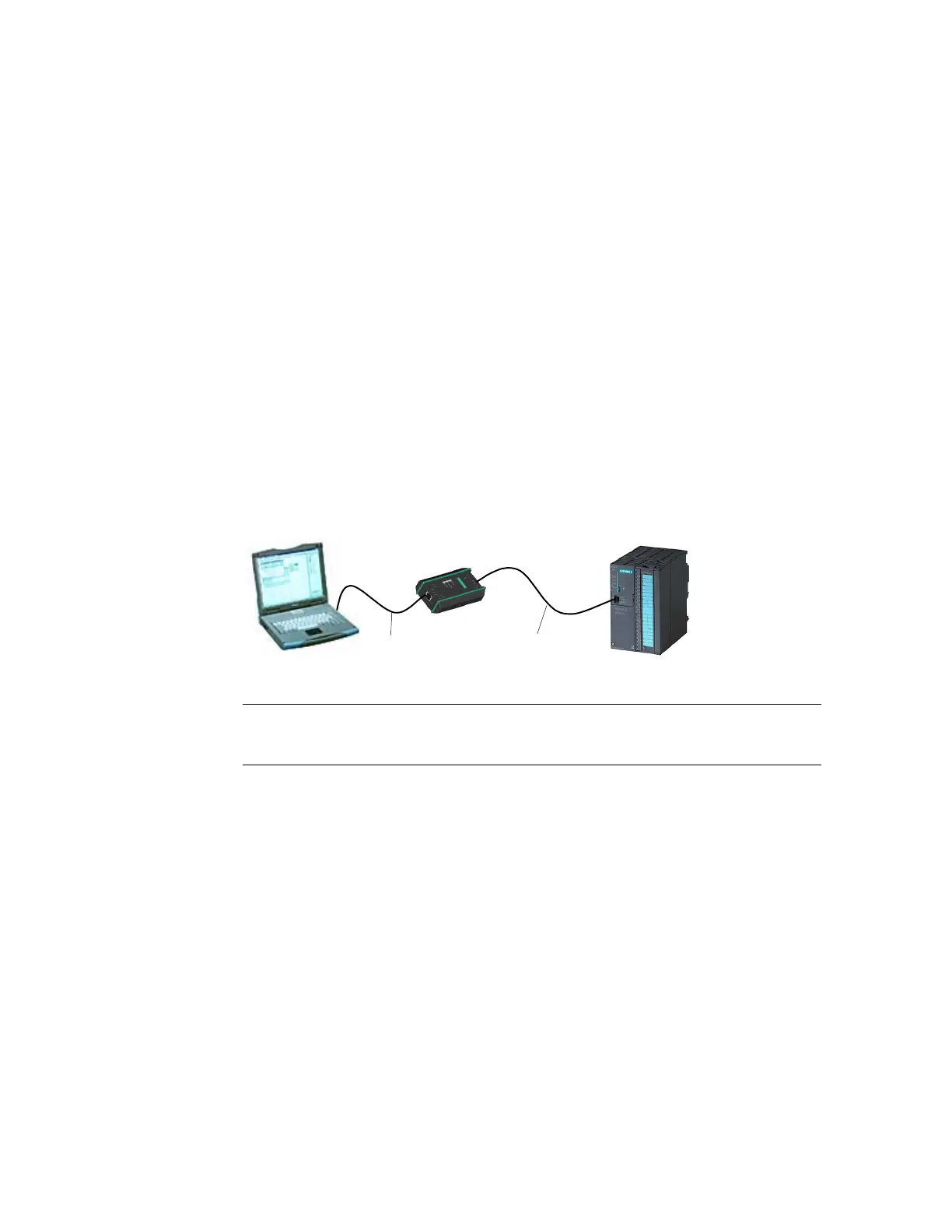

Fig. 1-1: Configuration with the PC Adapter USB
Note
Only one PC Adapter USB can be used on a PC.
