Siemens SIMATIC BusAdapter User Manual

BusAdapter BA 2xRJ45
4.2 Connecting
BusAdapter
16 Equipment Manual, 08/2020, A5E41449003-AB
Procedure
Watch video sequence "Connect BusAdapter BA 2xRJ45 to the ET 200SP interface module"
(https://support.industry.siemens.com/cs/ww/de/view/95886218)
To connect PROFINET IO to the PROFINET device via the BusAdapter BA 2xRJ45, follow these
steps:
1. Plug the BusAdapter BA 2×RJ45 into the PROFINET device.
2. Screw the BusAdapter BA 2×RJ45 to the PROFINET device (1 screw with 0.25 Nm tightening
torque).
3. Plug the RJ45 bus connector into the PROFINET port on the BusAdapter BA 2×RJ45.
You can also swap steps 2 and 3.

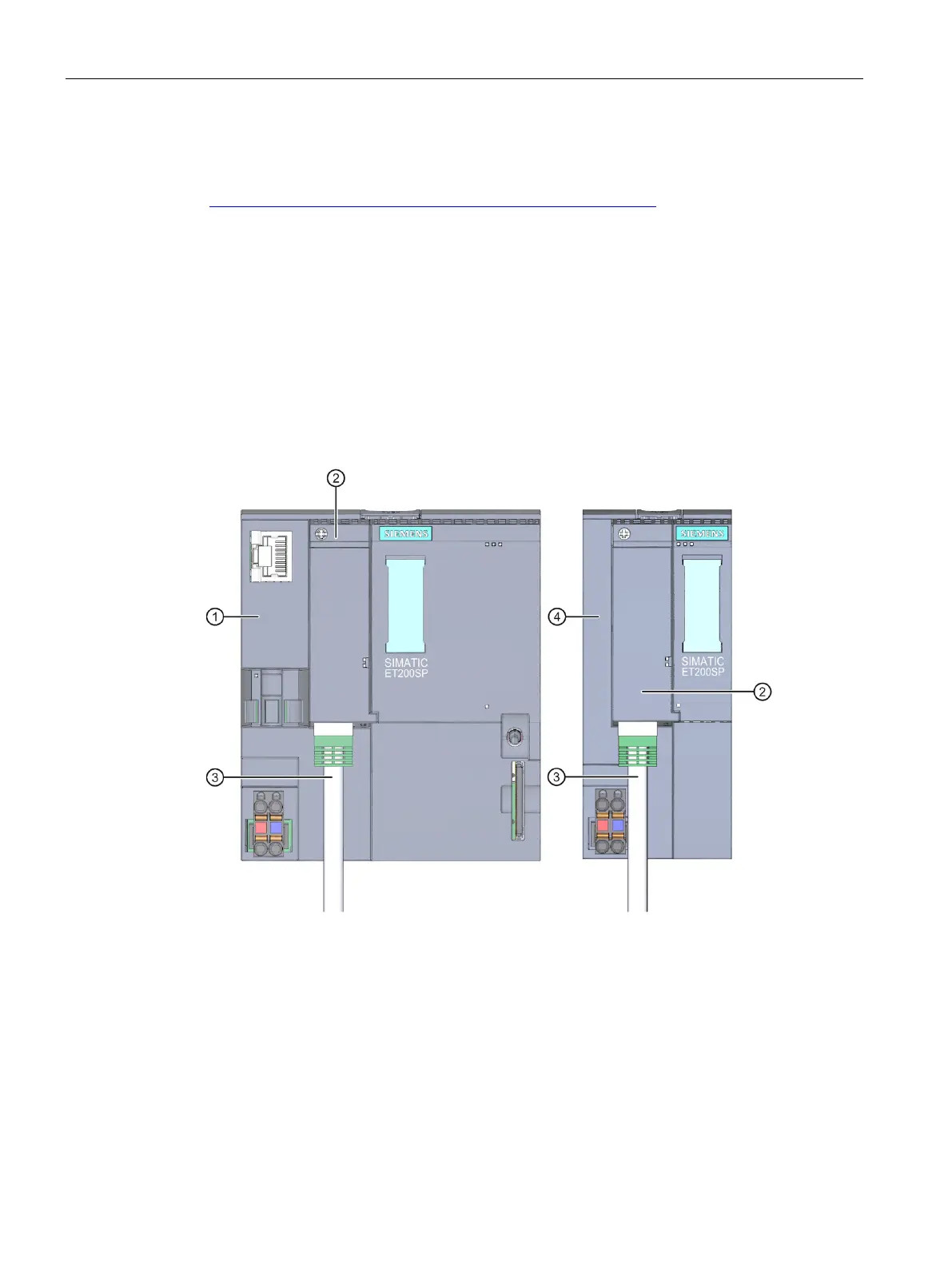

BusAdapter BA 2×RJ45 installed
①
CPU
②
BusAdapter BA 2×RJ45
③
PROFINET connecting cable
④
Interface module
Figure 4-2 BusAdapter BA 2×RJ45 installed (using an ET 200SP CPU/interface module as an example)
