BusAdapter BA SCRJ/RJ45
9.2 Connecting
BusAdapter
Equipment Manual, 08/2020, A5E41449003-AB
51
BA SCRJ/RJ45 BusAdapter mounted
PROFINET connecting cable

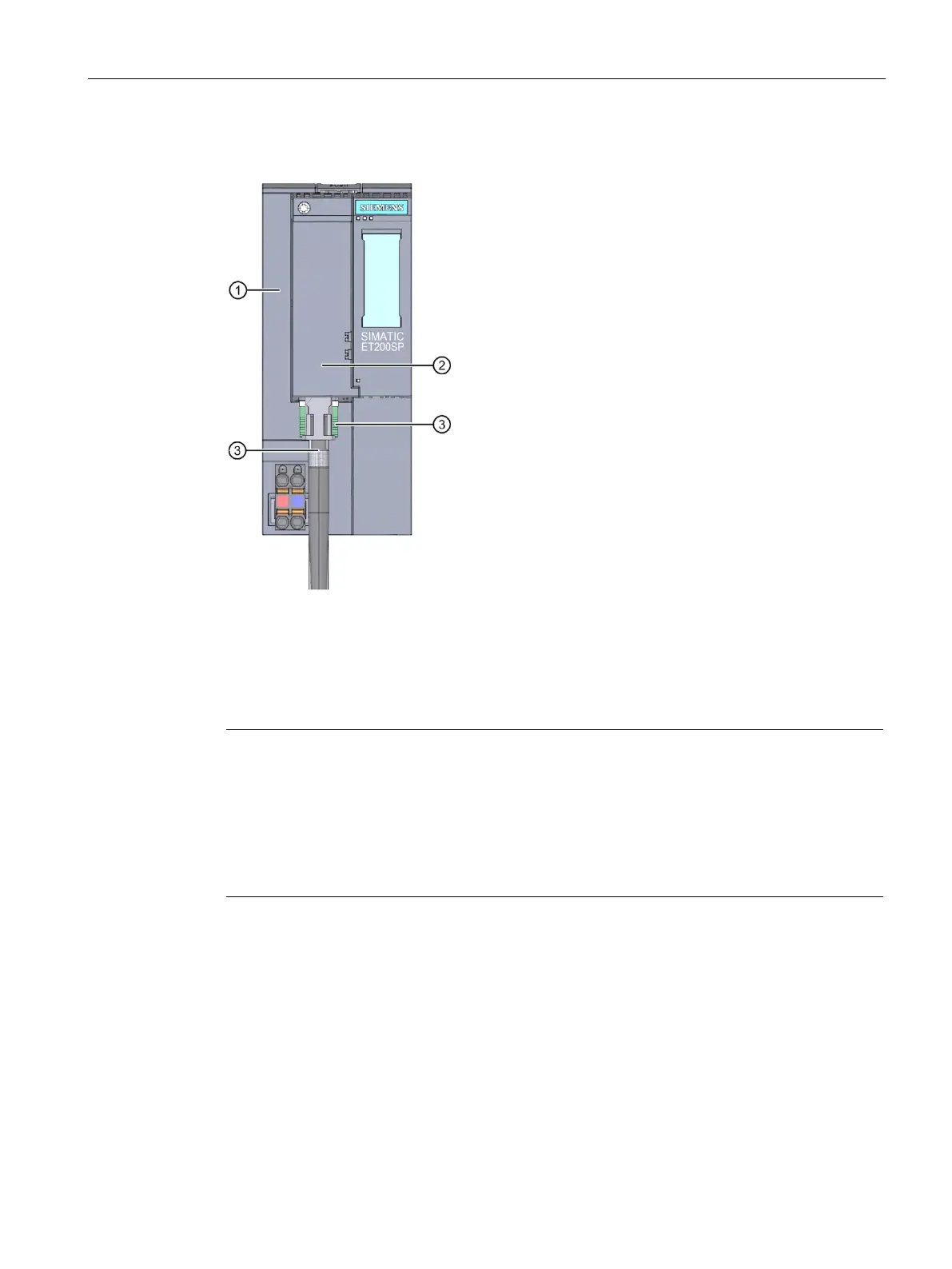

Figure 9-2 Connecting the BusAdapter BA SCRJ/RJ45 to the interface module
Installation guidelines for modules with PROFINET
IO interfaces
Ensure that all devices are connected to the SELV/P
ELV power supply (or equivalent). Only
then are you permitted to operate the modules with PROFINET
IO interfaces in LAN networks
A data transfer point that guarantee
s this degree of safety is prescribed for connection to the
