BusAdapter BA SCRJ/FC
10.2 Connecting
BusAdapter
Equipment Manual, 08/2020, A5E41449003-AB
57
BusAdapter BA SCRJ/FC installed
PROFINET connecting cable

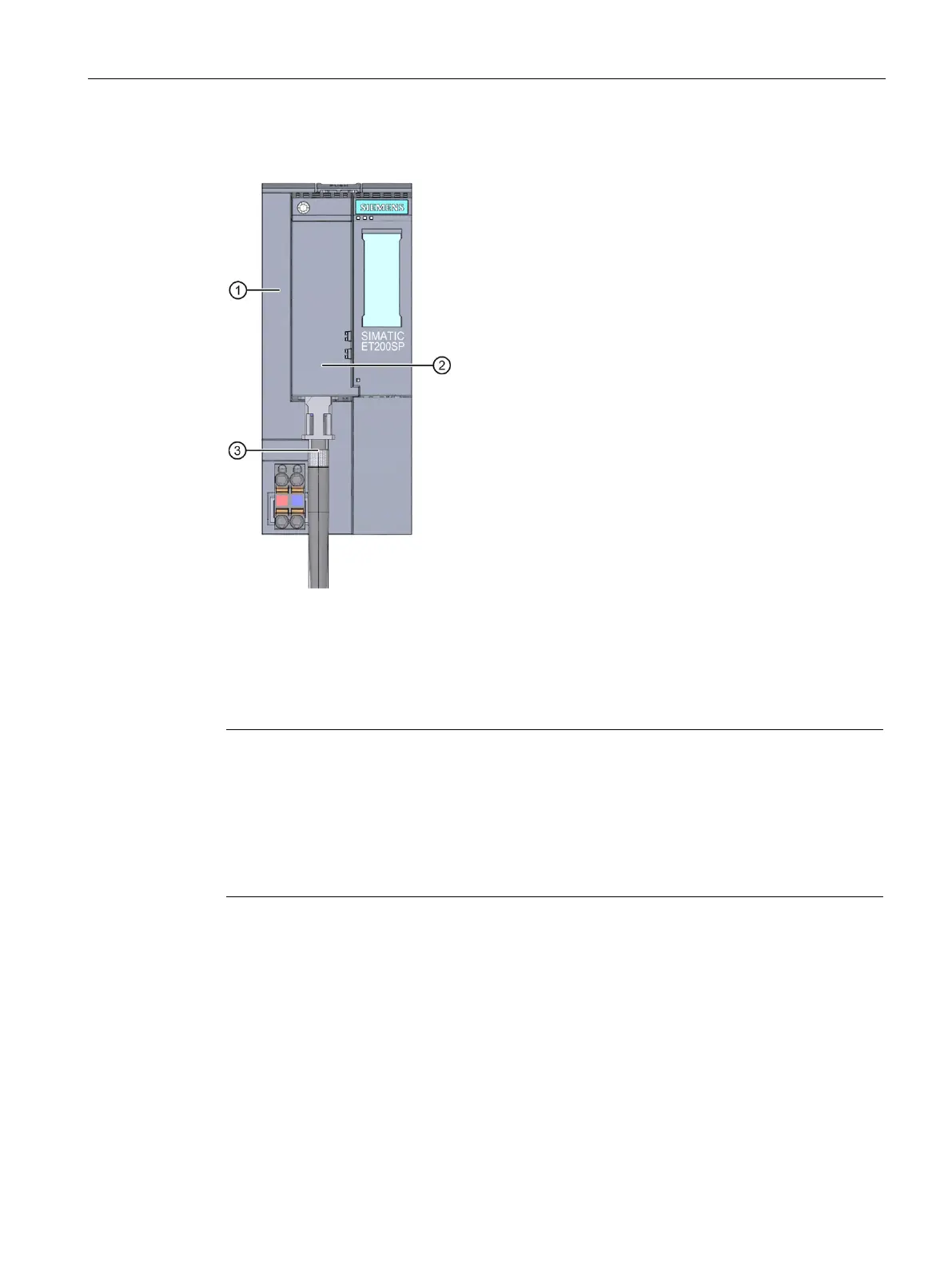

Figure 10-2 BusAdapter BA SCRJ/FC installed (using an ET 200SP interface module as an example)
Installation guidelines for modules with PROFINET
IO interfaces
Ensure that all devices are connected to the SELV/PELV power supply (or equivalent). Only
then are you permitted to
operate the modules with PROFINET IO interfaces in LAN networks
A data transfer point that guarantees this degree of safety is prescribed for connection to the
WAN (Wide Area Network).
