BusAdapter BA LC/FC
12.2 Connecting
BusAdapter
68 Equipment Manual, 08/2020, A5E41449003-AB
BusAdapter BA LC/FC installed
PROFINET connecting cable

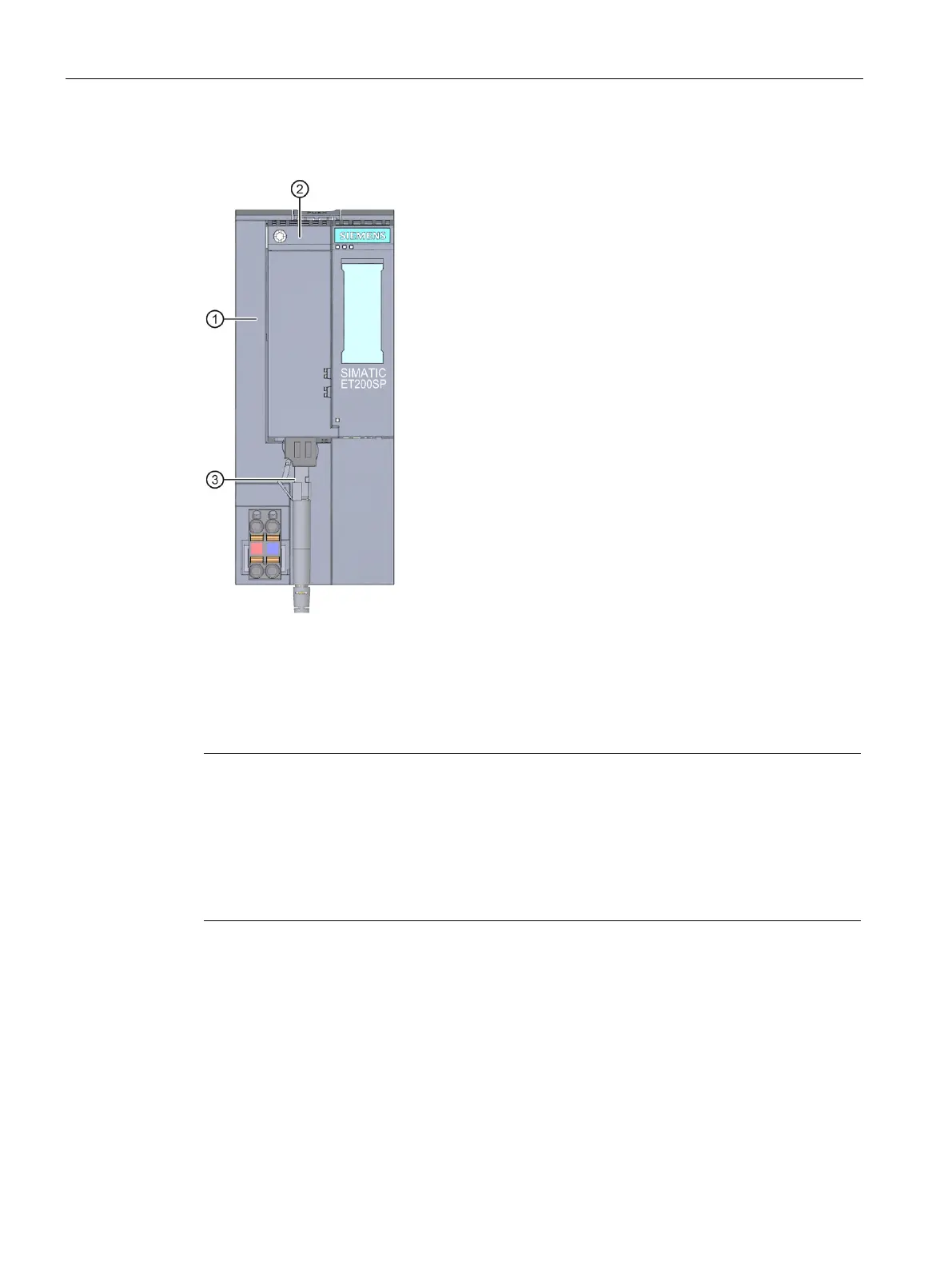

Figure 12-2 Connecting the BusAdapter BA LC/FC to the interface module
Installation guidelines for modules with PROFINET
IO interfaces
Ensure that all devices are connected to the SELV/PELV power supply (or equivalent). Only
then are you permitted to operate the modules with PROFINET
IO interfaces in LAN networks
Networks).
A data transfer point that guarantees this degree of safety is prescribed for connection to the
WAN (Wide Area Network).
