Strain relief
13.2 Installing
BusAdapter
Equipment Manual, 08/2020, A5E41449003-AB
73
4. Screw the BusAdapter to the PROFINET device (1 screw with 0.25 Nm tightening torque).
5. Fasten each PROFINET cable individually to the strain relief with the cable ties.

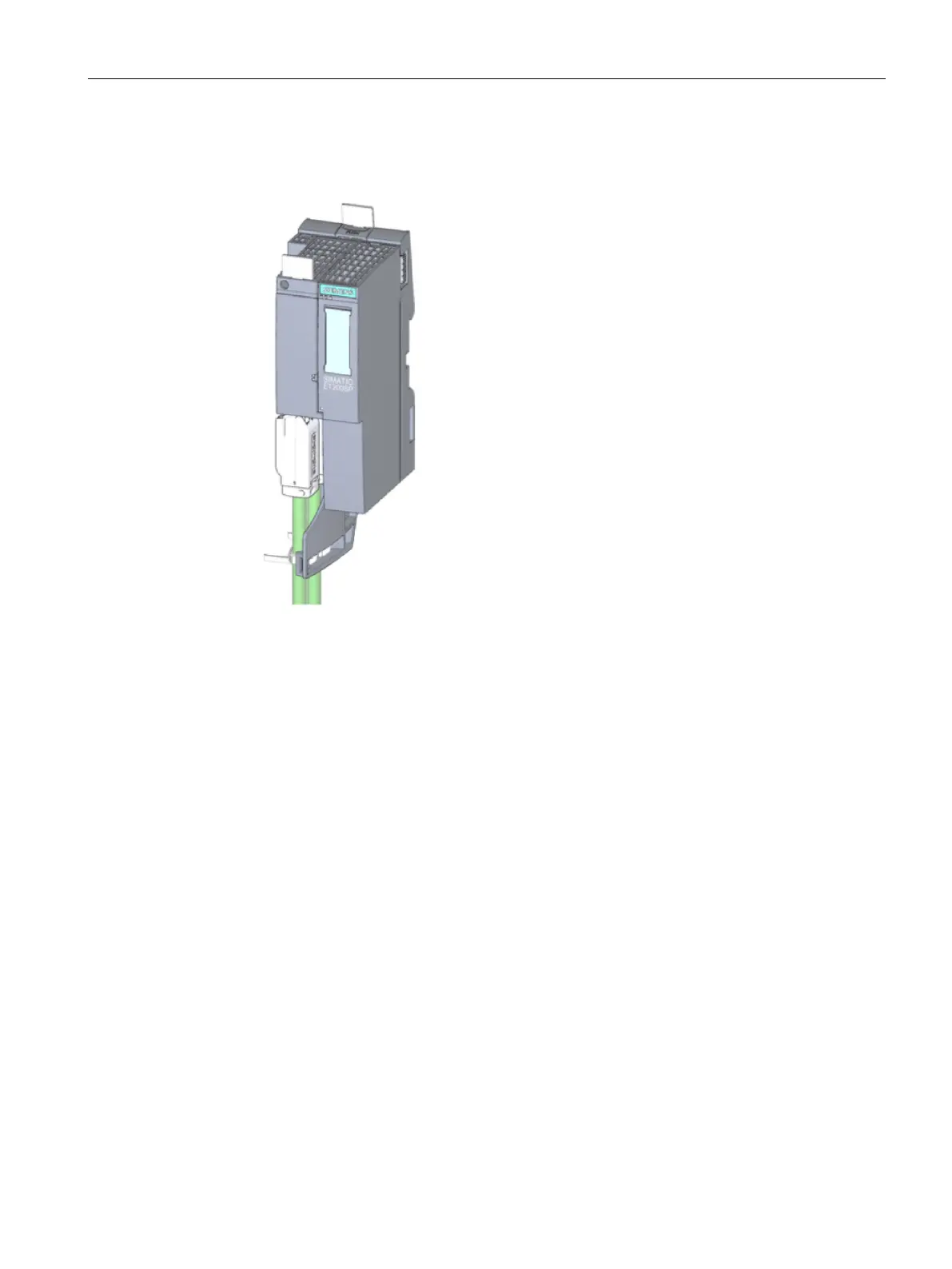

Figure 13-3 Strain relief installed
