Description
2.1 Exterior design
SIMATIC Field PG M4
Getting Started, 10/2012, A5E31347325-AA
7

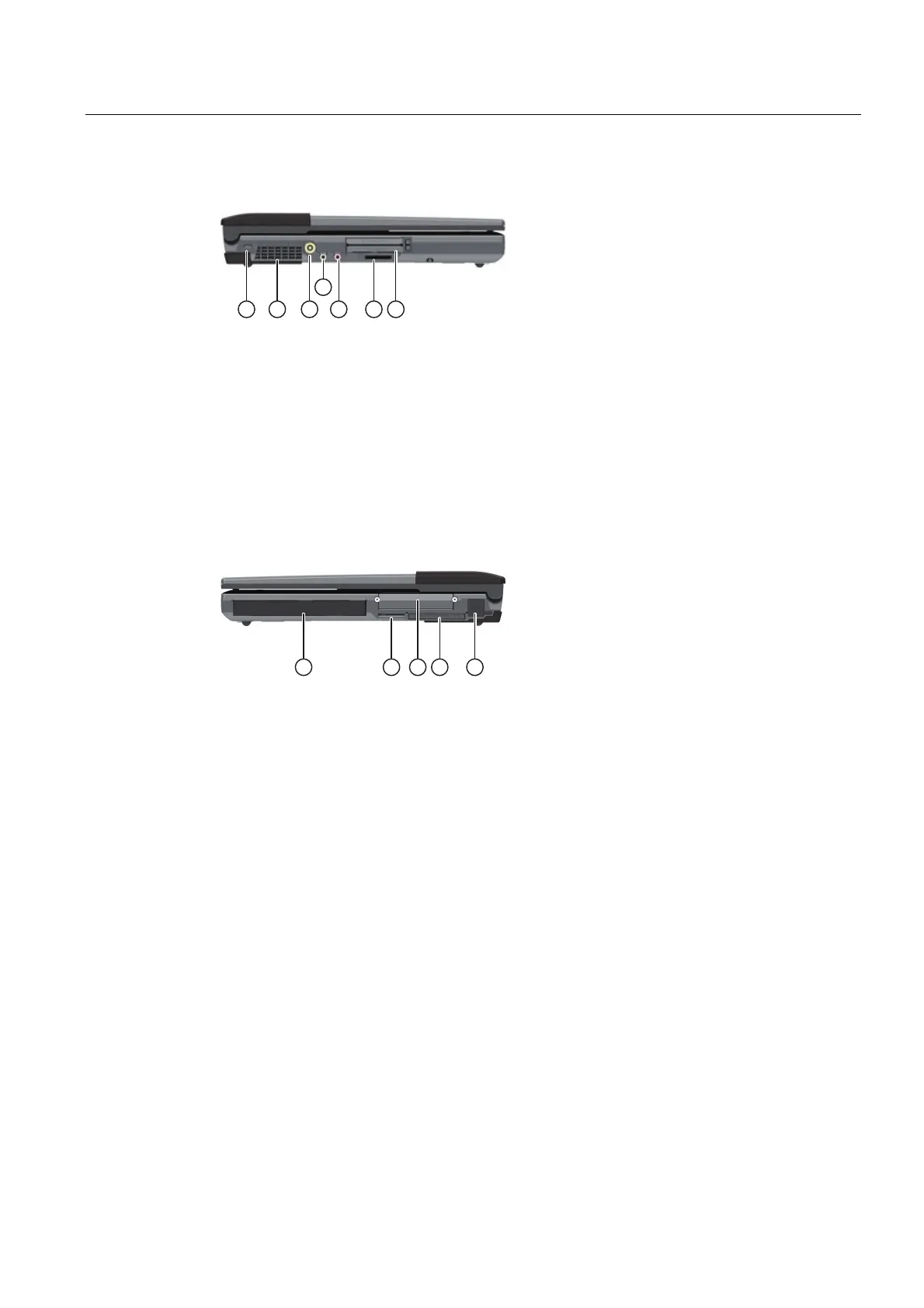

View of left side
① Opening for Kensington lock
② Ventilation air inlet
③ DC IN 19 V
④ Headphones
⑤ Microphone
⑥ Media Card Reader (port for SMC, SDHC, MMC (Multi Media Card - not SIMATIC MMC), xD,
and MS Pro)
⑦ Express card and PC card slot
View of right side
① Optical drive
② SIMATIC Micro Memory Card interface
③ Exchangeable hard disk unit
④ Memory card interface
⑤ 2 x USB port, with cover
Top port: USB 2.0
Bottom port: USB charger
