Compact Operating Instructions
1.7 Installing/Mounting
SIMATIC HMI IPC477C / HMI IPC477C PRO
12 Compact Operating Instructions, 10/2010, A5E02368072-02
1.7.2 Preparing the mounting cut-out

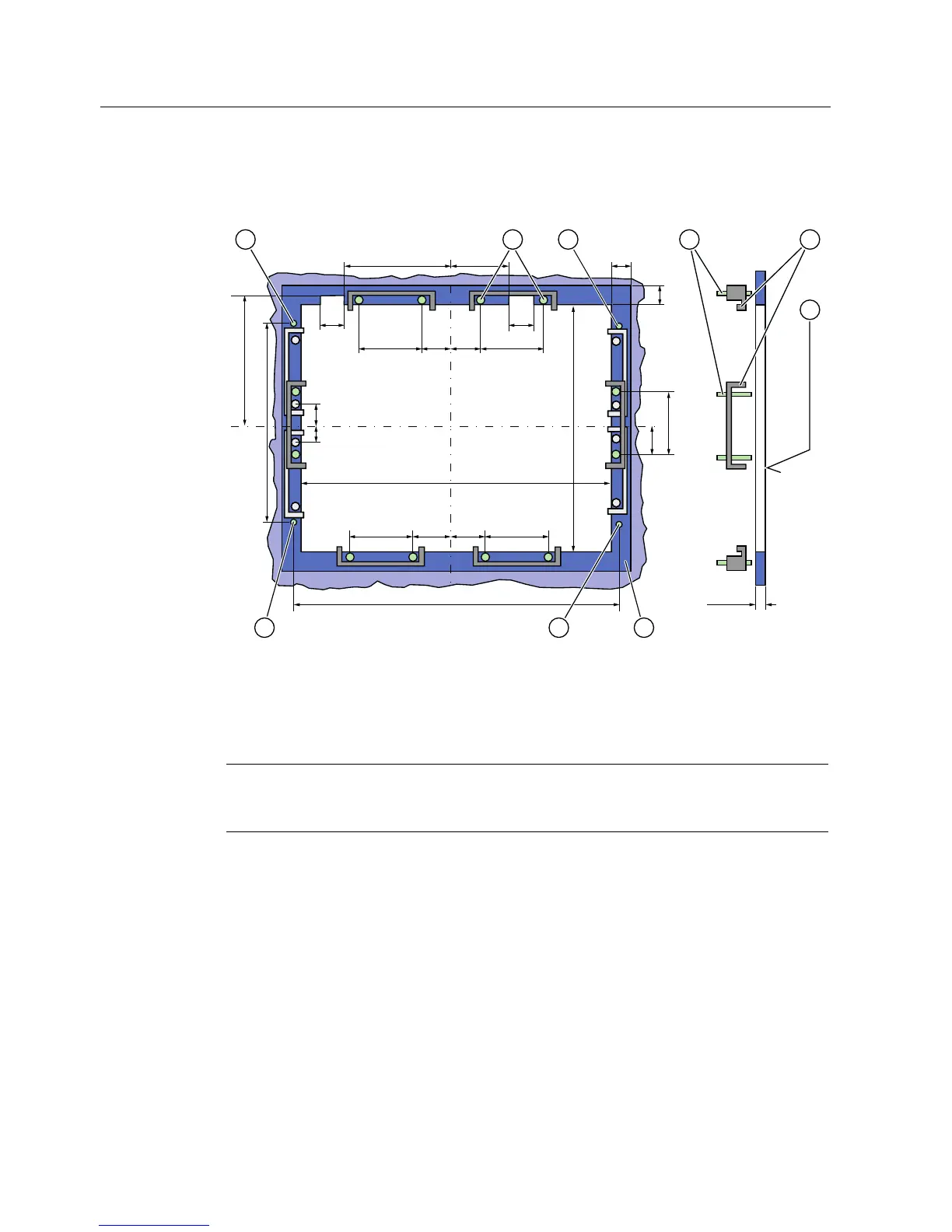

The following illustration shows the dimensions for the mounting cut-out.
PP
/
/ /
/ 6 6 /
/ 6 6 /
/
/
/
/
$
6
/
/
66
/
$
(1) Drill hole for screw attachment (4) Clamp
(2) Pressure points for clamp (5) R
Z
120 in the seal area
(3) Setscrews (6) Seal area
Figure 1-3 Drill holes for the screws and pressure points for the clamp screws
Note
Mounting dimensions can be read from the dimension overview or they can be transferred to
the cabinet from the mounting template supplied.
