1.8 Connecting
SIMATIC HMI IPC477C / HMI IPC477C PRO
Compact Operating Instructions, 10/2010, A5E02368072-02
17
1.8 Connecting
1.8.1 Connection elements and operator controls

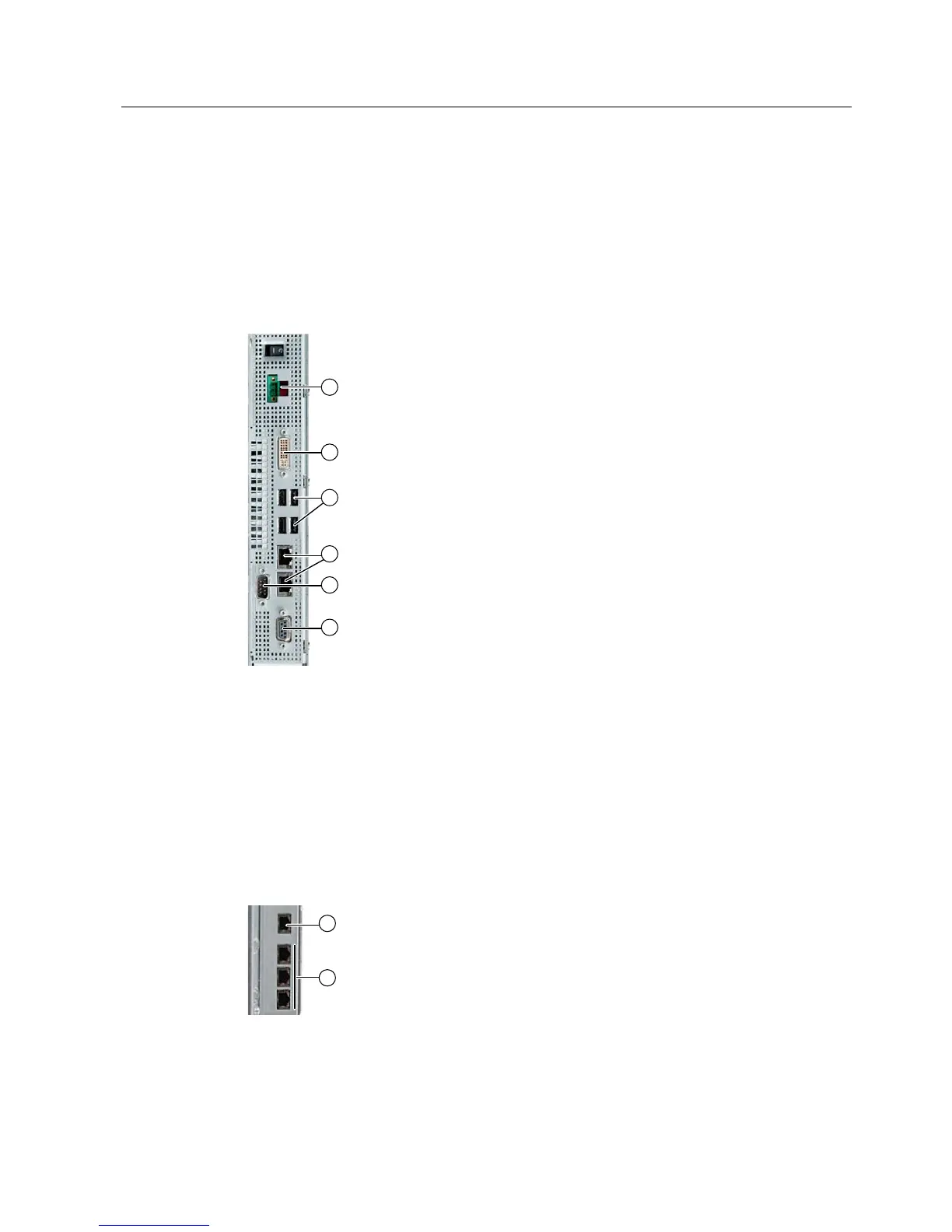

Connection components of computer unit






① 24 VDC Power supply connection
② DVI DVI-I socket
③ USB 4 USB 2.0 / 500 mA connections
④ ETHERNET 2 RJ45 Ethernet connections for 10/100/1000
Mbps
⑤ COM 1 Serial port 1 (RS232)
9-pin Cannon socket
⑥ PROFIBUS DP/MPI PROFIBUS-DP/MPI interface
(RS 485, electrically isolated),
9-pin Cannon socket
Figure 1-6 Variants with PROFIBUS


④ ETHERNET 1 RJ45 Ethernet connection for 10/100/1000 Mbps
⑥ PROFINET CP 1616 onboard interface, three RJ45 sockets
Figure 1-7 Variants with PROFINET
