Siemens SIMATIC HMI TP27 User Manual

12-3
TP27, TP37 Equipment Manual
Release 01/00

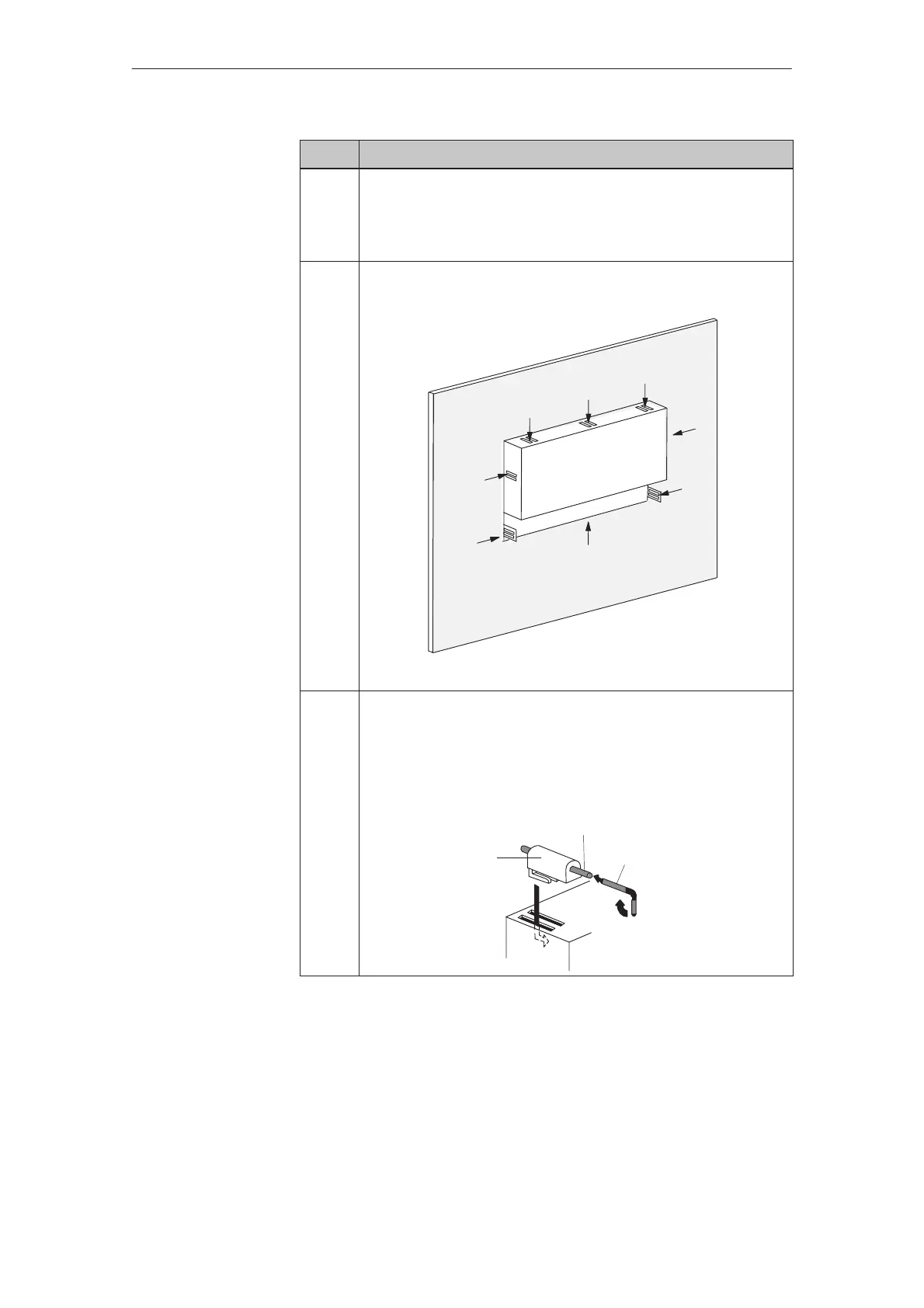

Step Action
1
Install the TP27-10 from the front in the pre–prepared mounting
cutout.
Ensure the TP cannot drop out of the front panel before it has been
secured.
2
Front panel
TP27-10
Place the hooks of the screw–type clamps enclosed ¶ in the corre-
sponding recesses in the housing of the TP27-10.
¶
¶
¶
¶
¶
¶
¶
¶
3
TP27-10
Tighten the TP27-10to the front panel Ë, from the rear, using a
hexagonal socket–head screw key.
Note:
– Do not overtighten the screws, maximum: 0,5 Nm.
Rear of TP
Threaded spindle
Hexagon socket–
head screw key
Screw–
type
clamps
Ë
For mounting into a front panel, the TP27-10 must be fixed using screw-type
clamps. Too high torques when tightening the threaded spindle may distort the
equipment housing and, as a result, cause breaking of the Touch Screen.
How to install the
TP27-10
Installation
