5-3
TP27, TP37 Equipment Manual
Release 01/00
5.2 Login/Logout on the Touch Panel
Login on the Touch Panel
S using the Password Processing standard screen
S by calling a function for which the current password level is too low. In this
case, the Touch Panel automatically requests a password.
Step Action Result
1 Call the standard screen Pass-
word Processing.
The standard screen is displayed
(figure 5-1).
2 Touch the Login input field. The password input window
opens (figure 5-2). The possible
input positions are marked by
hash characters (#).
3 Enter your password by means
of the keypad.
Input commences flush left.
Each character entered is repres-
entedby an asterisk (∗).
4
Confirm the entry by
pressing
The input window is closed. If
the password is valid, the corre-
sponding password level is dis
Or cancel the input by
pressing
ESC
spon
ng passwor
eve
s
s-
played next to the Login input
field.
B CA
M
\
:
N
D
X
K
U
L
V
/
W
O
E
Y
G HF
R
%
+
S
I
’
P
Z
Q
(
.
)
T
J
=
2
0
1
7
5
6
*–
&
34 89
ESC
ShiftHelp
∗∗∗∗∗∗∗∗

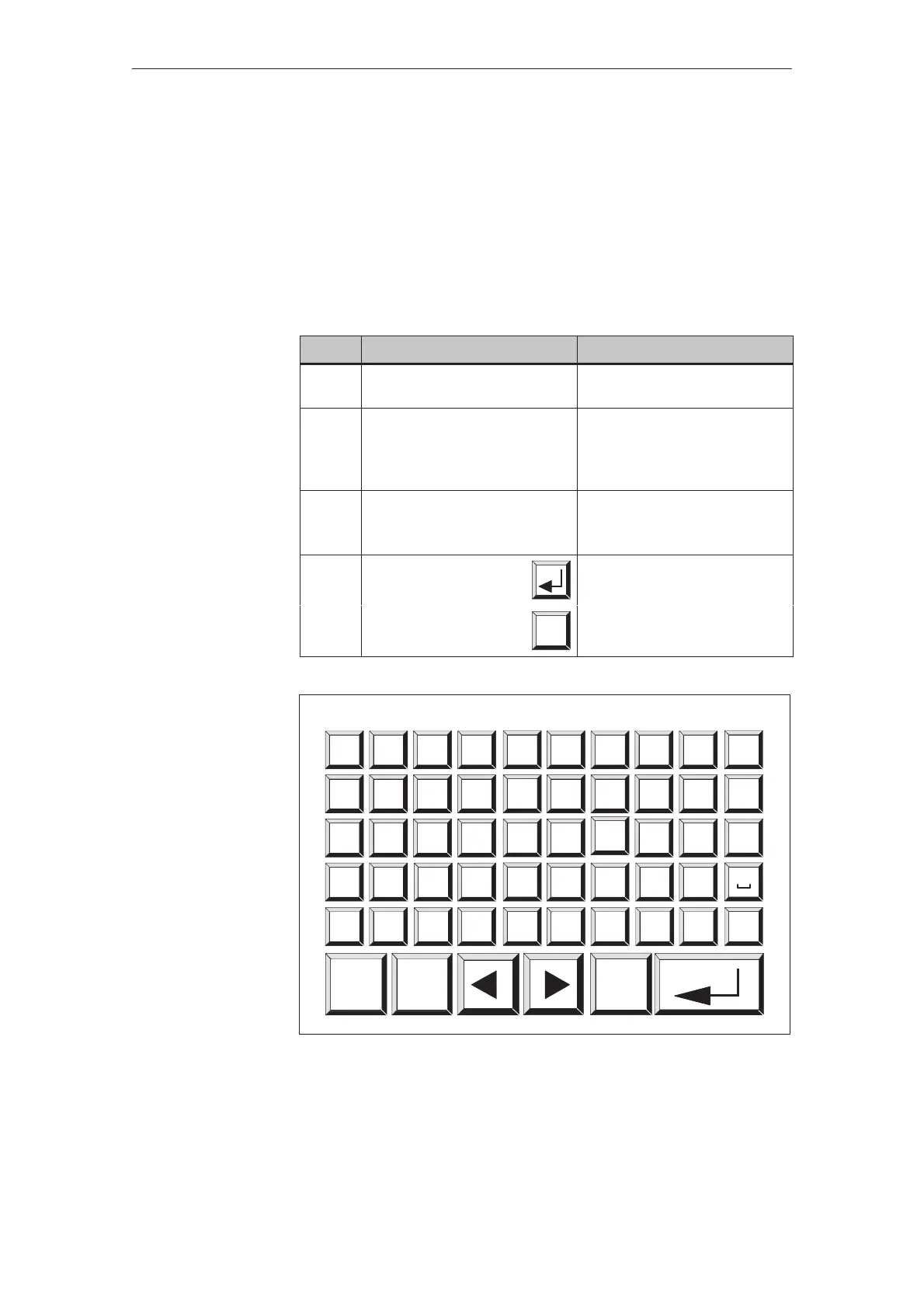

Figure 5-2 Window for entering the password (example TP27-6)
