Siemens SIMATIC IOT2000 Series User Manual

Installing and connecting the device
3.2 Installing the IOT2000 Extension Modules
IOT2000 Extension Modules
Operating Instructions, 2018/05, A5E39456816-AB
17

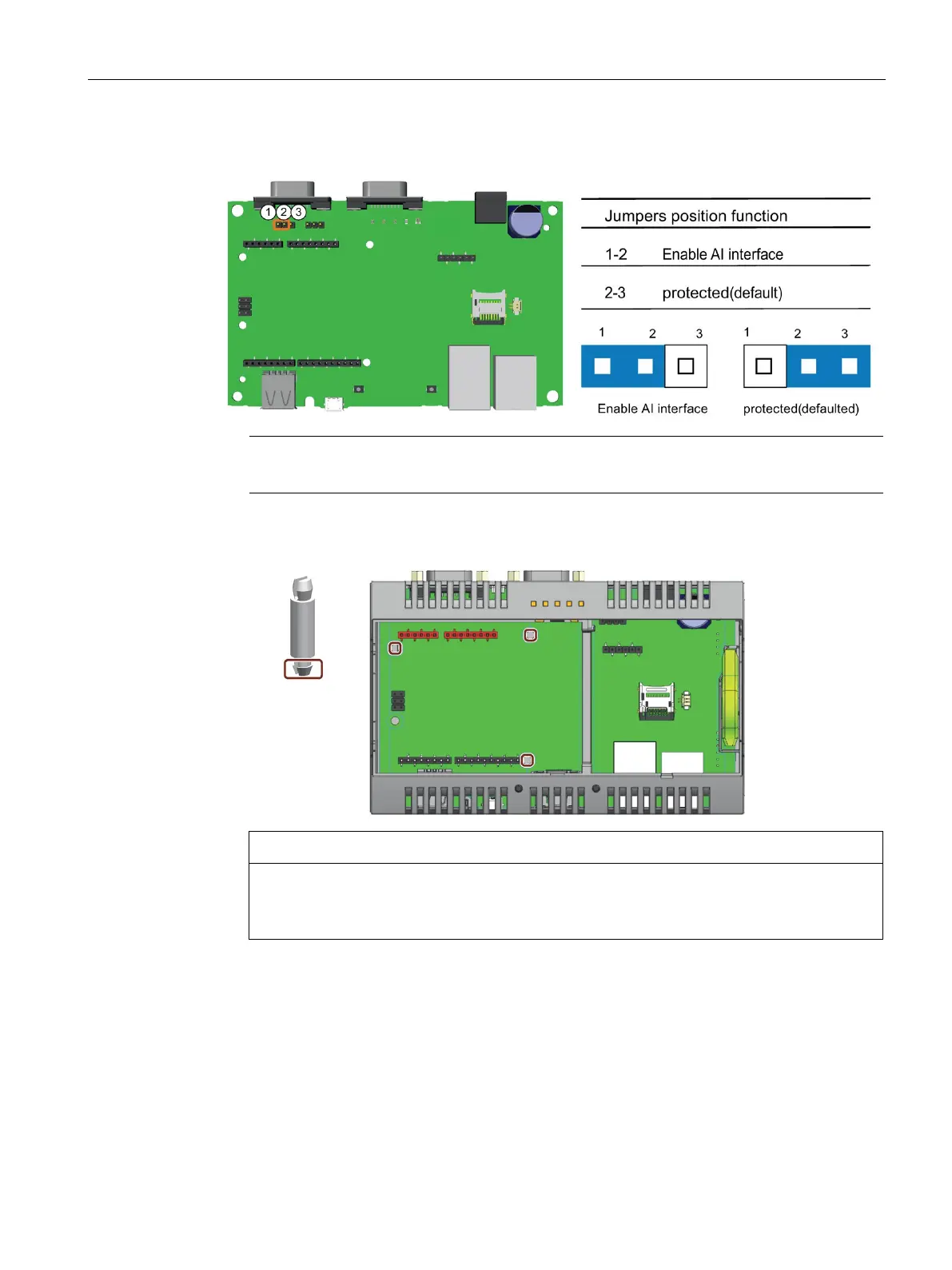

3. Configure the pin connector via the jumper as shown below to enable the AI interface.
Note
When you install the IOT2000 Input Module Sink/Source, skip this step.
4. Insert the mounting clamp into the marked boreholes on the motherboard shown below.
Note
: Insert the marked side of the mounting clamp into the motherboard.
NOTICE
Only use fixing elements designed for IOT2000 Extension Modules
Use only fixing elements shipped together with the module. If you use other fixing
elements, the motherboard may be damaged.
