Installing and connecting the device
3.2 Installing the IOT2000 Extension Modules
IOT2000 Extension Modules
18 Operating Instructions, 2018/05, A5E39456816-AB
5. Fit the contact pins of the module on the contact sockets of the motherboard. Then insert

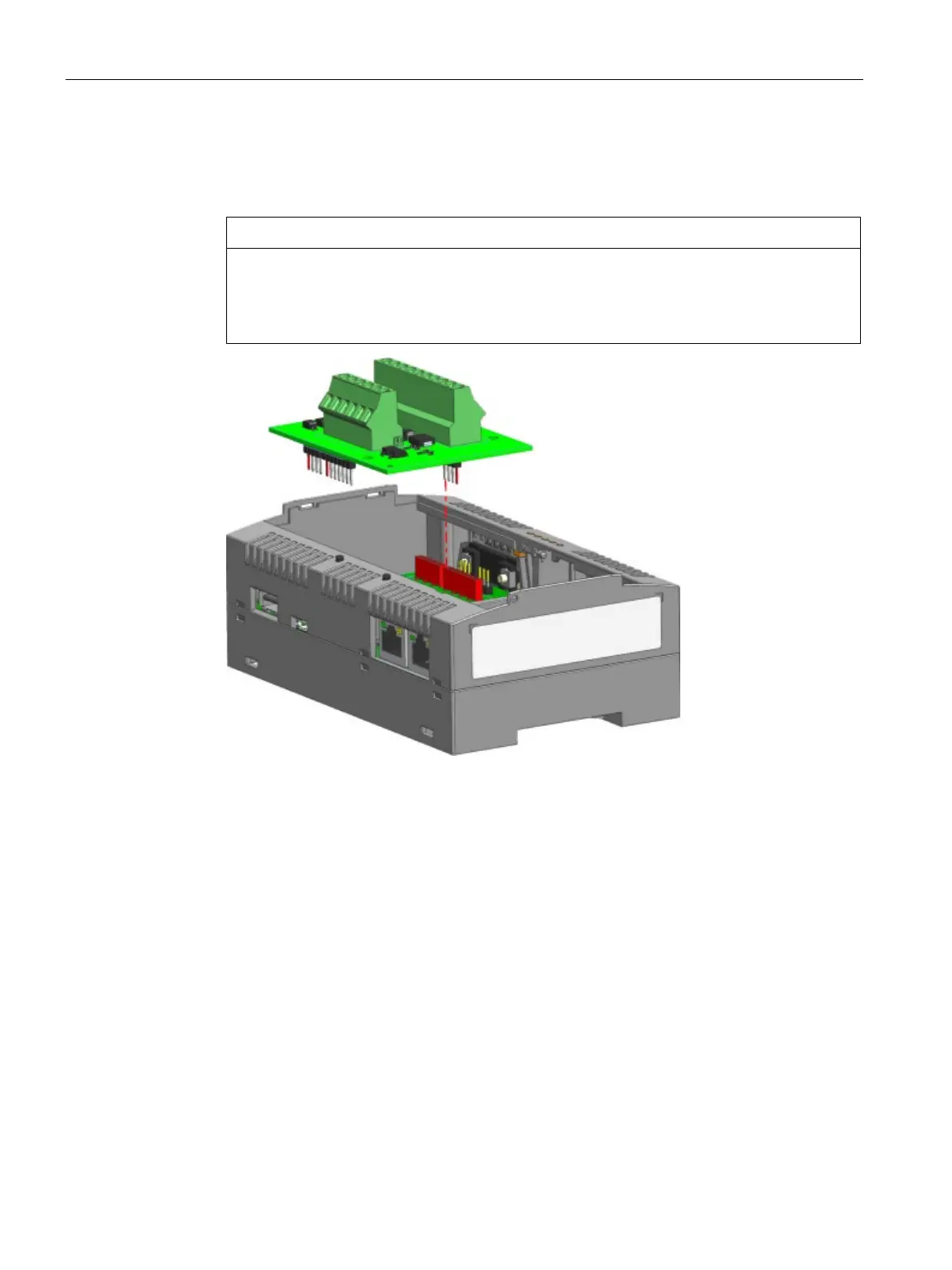

the IO Module into the motherboard. Below is an example for inserting the IOT2000
Input/Output Module into the motherboard.
NOTICE
Risk of contact pin damage
Ensure that the contact pins of the module fit perfectly on the contact sockets of the
motherboard before your push the IOT2000 Extension Modules into the mounting
clamp. Otherwise the pin maybe deformed.
6. Install the module cover to the IOT2000. Snap the left side of the cover first, then press
the right of the cover until it clips in the housing.
7. Install the right cover.
