Overview
1.3 Accessories
SIMATIC IOT2020, SIMATIC IOT2040
10 Operating Instructions, 10/2016, A5E37656492-AB
1.2.2
SIMATIC IOT2040

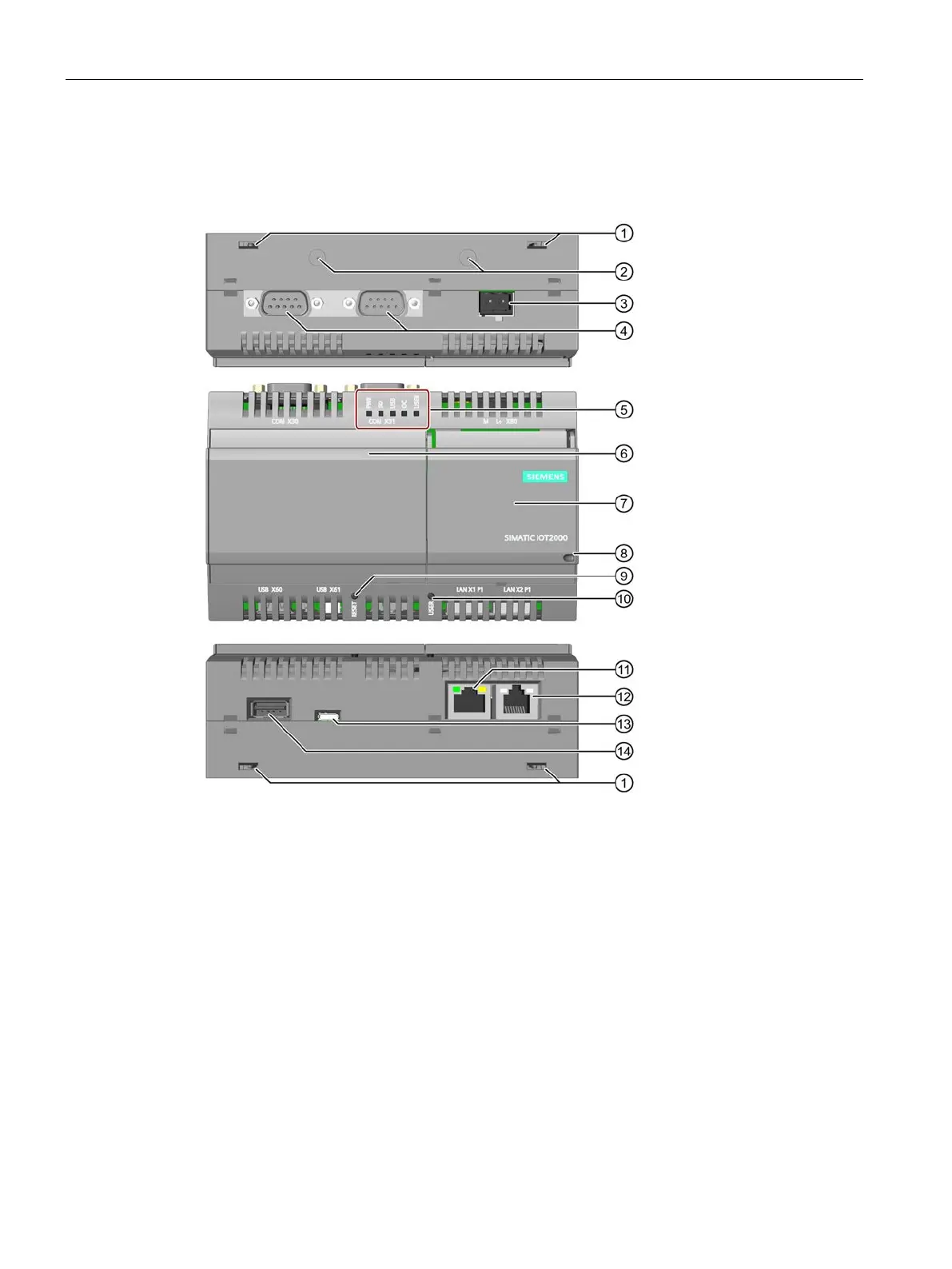

The following figures show the configuration and interfaces of the SIMATIC IOT2040.
Top view
Front view
Bottom view
①
Openings for push-in lugs for wall mounting
⑧
Securing device
②
Markings for the installation of antennae
⑨
RESET button for the CPU
③
Power supply connector
⑩
USER button, programmable
④
COM interfaces (RS232/422/485)
⑪
Ethernet interface 10/100 Mbps
⑤
LED
display, see section "Motherboard (Page 49)"
⑫
Ethernet interface
10/100 Mbps, prepared for PoE
⑥
Cover on left
⑬
USB Type Micro B
⑦
Cover on right
⑭
USB Type A
