Technical specifications
7.3 Dimension drawings
SIMATIC IOT2020, SIMATIC IOT2040
44 Operating Instructions, 10/2016, A5E37656492-AB
7.3
Dimension drawings

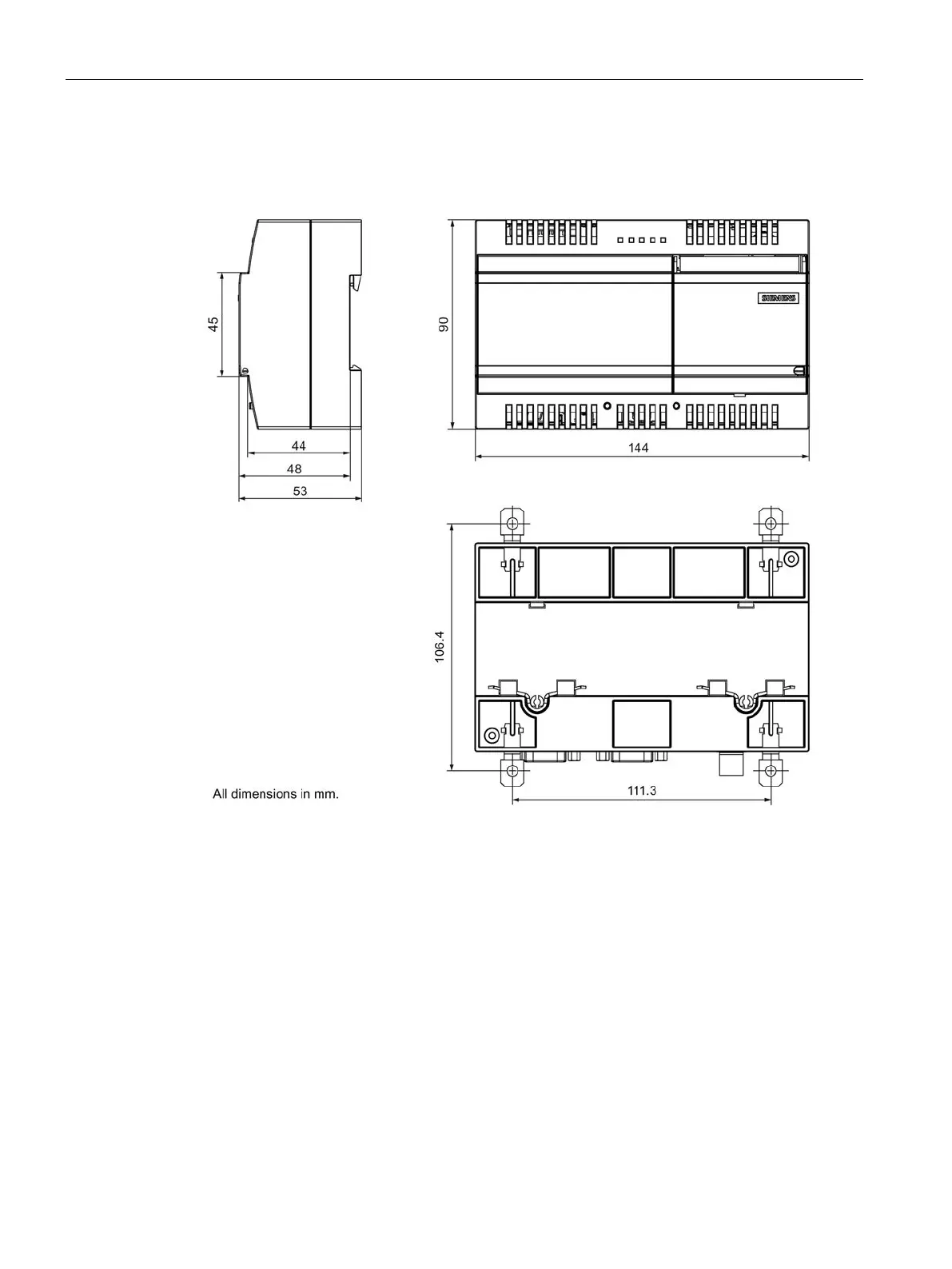

The following figures show the dimension drawings of the type IOT2000.
