5.4 Connecting the strain relief for network cables

SIMATIC IPC647C

26 Getting Started, 12/2010, A5E02669344-02

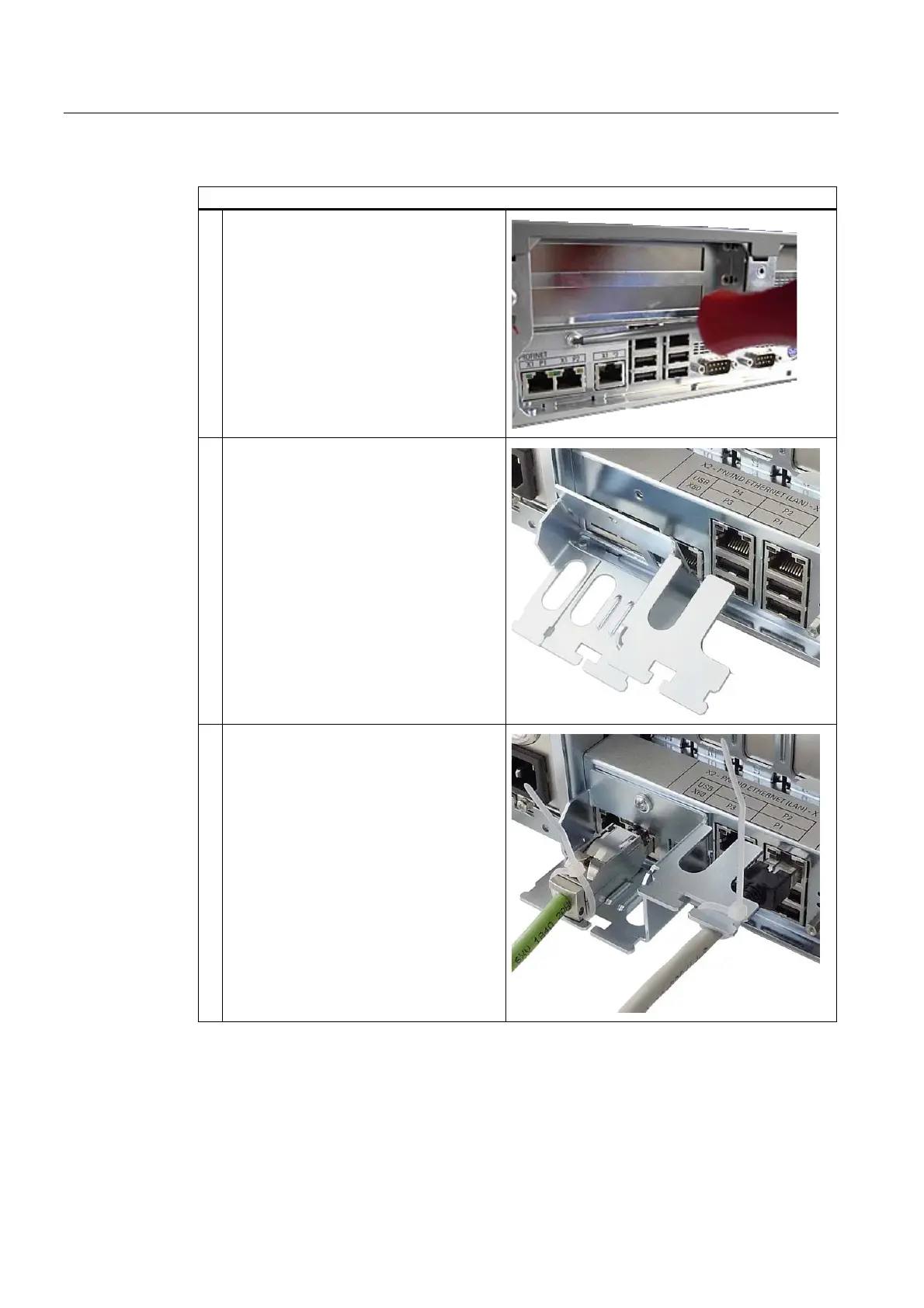

Steps for connecting the strain relief

1. Remove the PROFINET interface plate.

2. Install the plate for the Profinet and

Ethernet connectors. Use the retaining

screw of the PROFINET interface plate for

this purpose.

3. Install the Profinet and Ethernet connectors

at the respective positions and fasten the

cables with cable ties.
