Description
2.4 Status displays
SIMATIC IPC647C
Getting Started, 12/2010, A5E02669344-02
11
Power supply

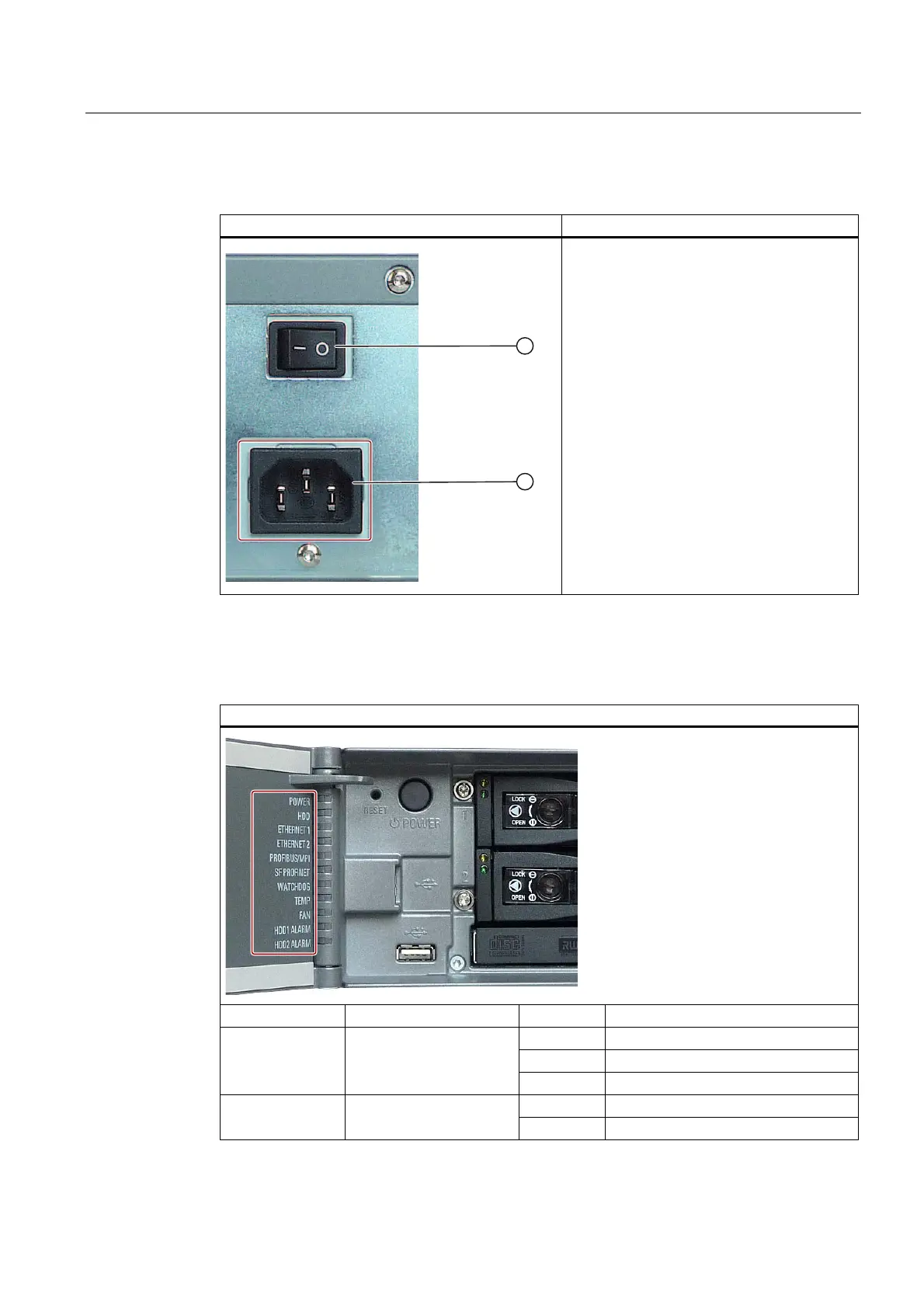

Position of the IEC connector Description
On/Off switch ①.
Socket ② for IEC connector for the AC
power supply to the device.
100 to 240 V AC is permissible as the input
voltage.
2.4 Status displays
Front status displays
Display Meaning LED Description
OFF isolated from mains
YELLOW Standby (hibernating)
POWER PC status display
GREEN PC in operation
OFF no access HDD Display for hard disk
access
GREEN Access
