Siemens SIMATIC NET ET 200SP User Manual

CP 1542SP-1, CP 1542SP-1 IRC, CP 1543SP-1
Operating Instructions, 01/2017, C79000-G8976-C426-03
3
Preface
Validity of this manual
This document contains information on the following modules:
●
CP 1542SP-1
Article number
6GK7542-6UX00-0XE0
Hardware version 1
Firmware version V1.0
Communications processor for connecting a SIMATIC ET 200SP CPU to Industrial
Ethernet
●
CP 1542SP-1 IRC
Article number
6GK7542-6VX00-0XE0
Hardware version 1
Firmware version V1.0
Communications processor for connecting a SIMATIC ET 200SP CPU via Industrial
Ethernet to a control room (TCSB, DNP3, IEC 60870-5-104)
●
CP 1543SP-1
Article number
6GK7543-6WX00-0XE0
Hardware version 1
Firmware version V1.0
Communications processor for connecting a SIMATIC ET 200SP CPU to Industrial
Ethernet, Security

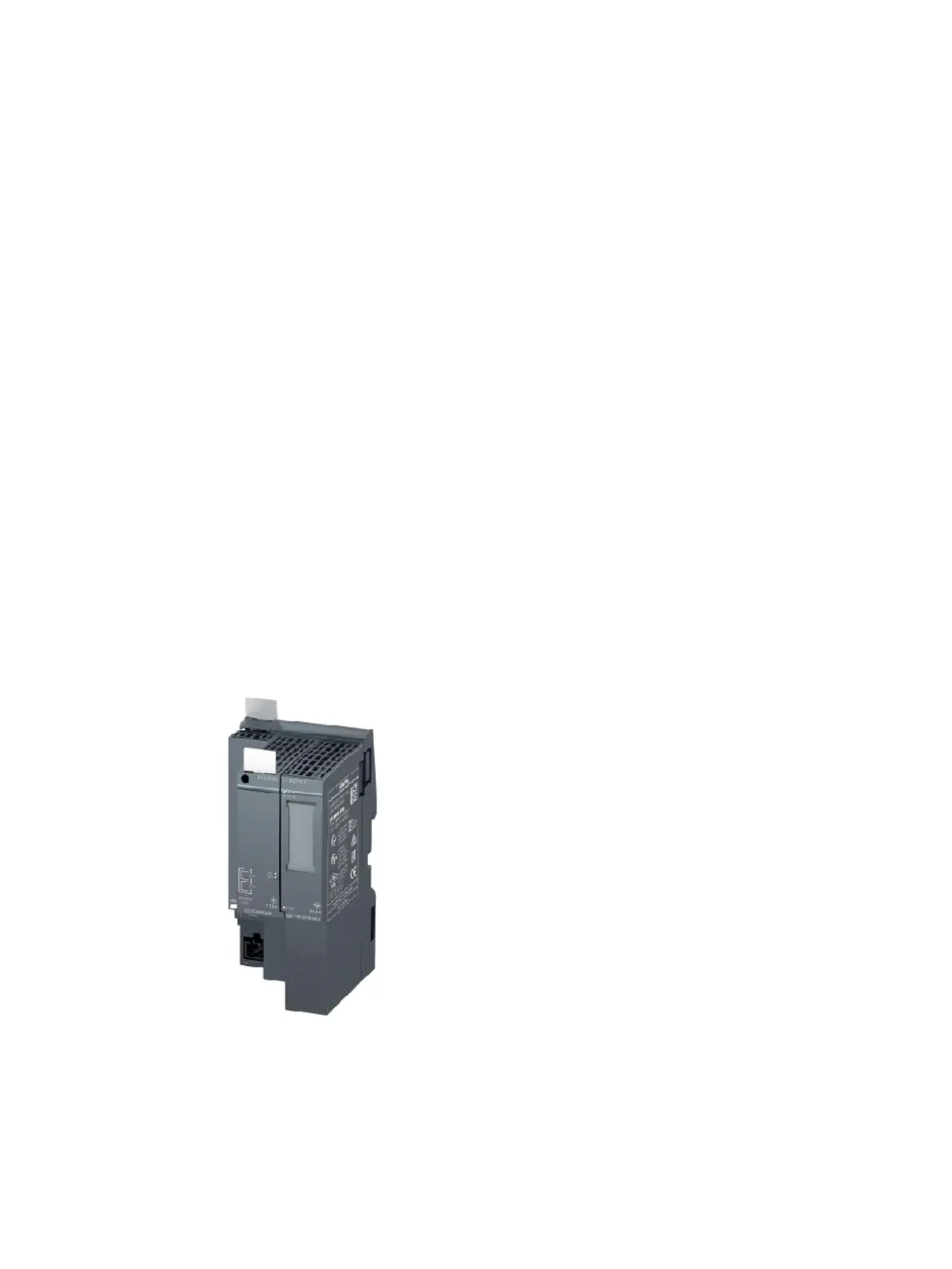

Figure 1 CP 1542SP-1 with plugged in bus adapter (here 2xRJ-45)
On the front of the module at the right edge, the hardware version is printed as a placeholder
"X". If the printed text is, for example, "X 2 3 4", "X" would be the placeholder for hardware
product version 1.

Siemens SIMATIC NET ET 200SP Specifications

General

Supply voltage	24 V DC
Protection Class	IP20
Mounting	DIN rail
Transmission rate	10/100 Mbit/s
Number of ports	2
