Configuring with Web Based Management
4.7 "Security" menu
SCALANCE SC-600 Web Based Management (WBM)
310 Configuration Manual, 10/2021, C79000-G8976-C475-03
Description

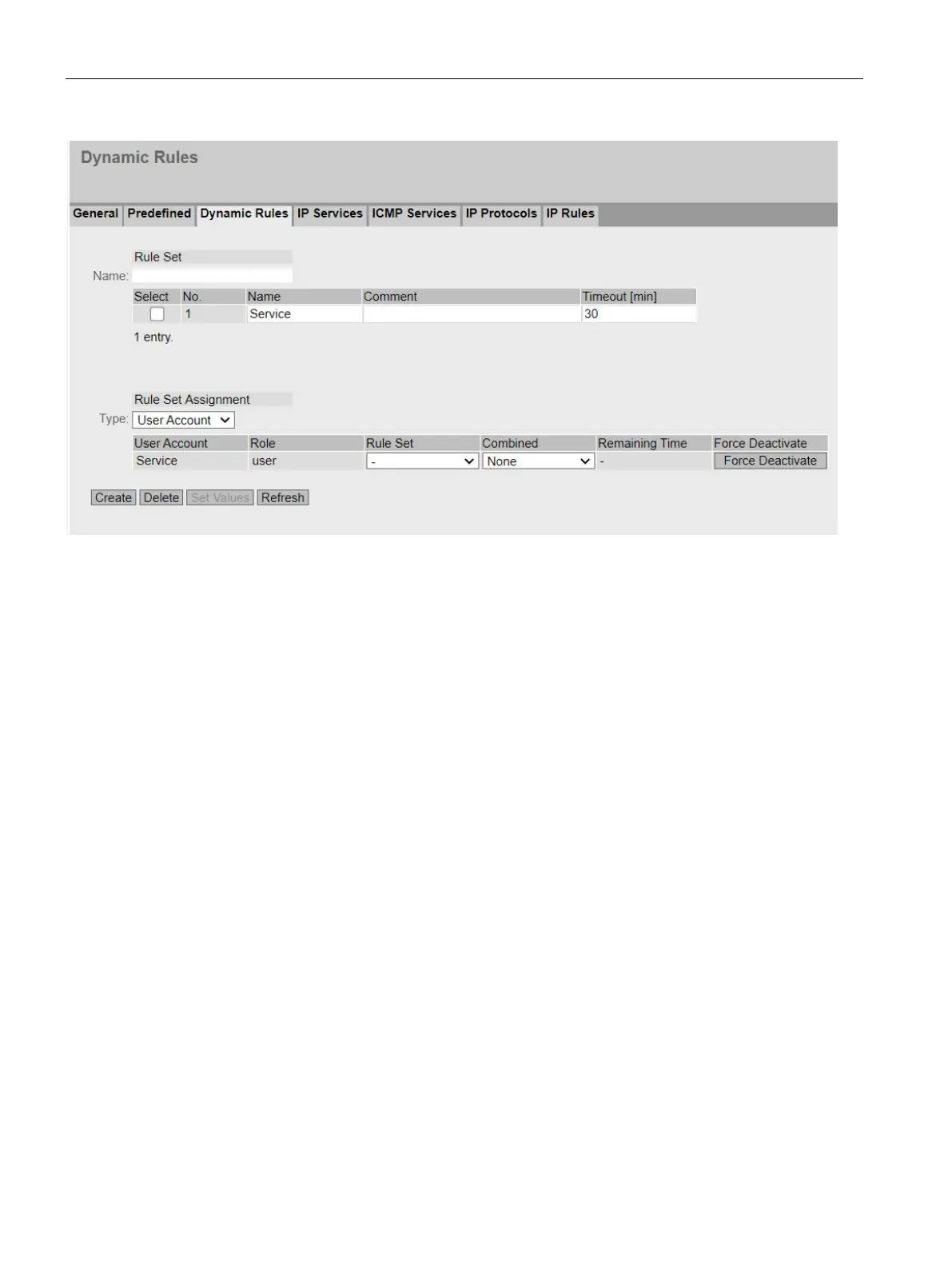

"Rule set" area
• Name
Define a unique name for the rule set. If you click the "Create" button, a new row with
a unique number is created.
The table contains the following columns:
• Select
Select the check box in the row to be deleted.
• No.
Shows the unique number of the entry.
• Name
Name of the rule set. The name can be changed if required.
• Comment
Comment that describes the rule set in more detail.
• Timeout [min]
Access is time-limited. Specify the duration of the access. If needed, the user can
extend the access time via the "Reset Timeout" button on the "Dynamic Firewall
Rules Information" page.
